Entel
ATEX-certified marine VHF handheld for hazardous areas, with 4W output, IP68 waterproofing and 13.5 hours of battery life.
Technical
| Frequency Range | VHF 156-163MHz |
|---|---|
| Channels | INT/USA/CAN mode plus private |
| Channel Spacing Analogue | 12.5kHz & 25kHz |
| Battery | CNB950EV2 1800mAh Lithium-ion |
| Weight | 435g |
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm |
| Frequency Stability | ±0.5ppm |
| Operating Voltage | 7.4V |
| Programmable Buttons | 3 |
| Battery Endurance (5/5/90) Analogue mode | 13.5 hours |
| Output Power | 4W (High) / 1W (Low) |
| Modulation Limiting | ±2.5kHz / ±5.0kHz |
| FM Hum and Noise (Transmitter) | >-40dB / >-45dB |
| Unwanted Emissions | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
| Adjacent Channel Power | >60dBc / >70dBc |
| Audio Response (FM) (Transmitter) | 300Hz to 3kHz -6dB/Octave |
| Audio Distortion (Transmitter) | <5% |
| FM Modulation | 16K0F3E |
| Analogue Sensitivity | -120dBm (0.2uV) for 12dB SINAD |
| Intermodulation response rejection | >68dB |
| Adjacent Channel Selectivity | >60dB / >70dB |
| Spurious Response Rejection | >70dB |
| Audio Output Power | 1 Watt |
| Audio Distortion (Receiver) | 5% |
| Hum and Noise (Receiver) | >-40dB / >-45dB |
| Audio Response (Receiver) | 300Hz to 3kHz -6dB/Octave |
| Conducted Spurious Emissions | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
| Ex Protection | ATEX II 2G Ex ib IIB T4 Gb |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | Compliant MIL-STD810 C/D/E/F |
| Water Ingress | IP68 2 metres, 4 hours submersible |
Overview

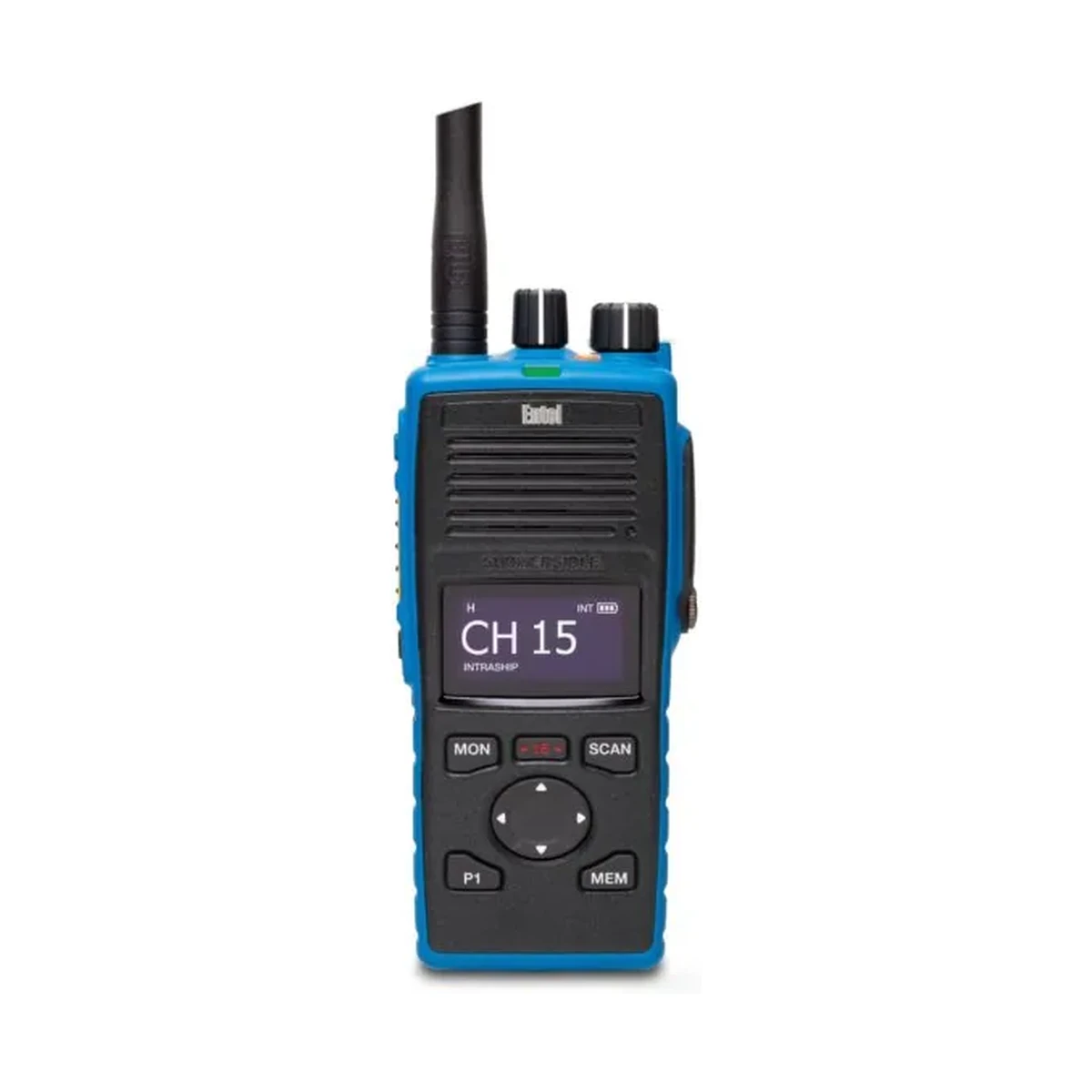

The Entel DT844 is a marine VHF handheld covering 156-163MHz across International, USA and Canadian marine channels plus private channels, certified ATEX II 2G Ex ib IIB T4 Gb for hazardous gas atmospheres. It transmits at 4W high power (1W low) from a CNB950EV2 1800mAh lithium-ion battery, rated for 13.5 hours in analogue mode on a 5/5/90 duty cycle. It is rated IP68 (2 metres, 4 hours) and built to MIL-STD-810 C/D/E/F, operating across -20 to +40 degrees C.
Questions
The DT844 transmits at 4 Watts on high power and 1 Watt on low power.
The DT844 ships with a CNB950EV2 1800mAh lithium-ion battery and is rated for 13.5 hours on a standard 5/5/90 duty cycle in analogue mode.
Yes. It is ATEX certified to II 2G Ex ib IIB T4 Gb.
Yes. It carries an IP68 rating, tested to 2 metres' submersion for 4 hours.
