Icom

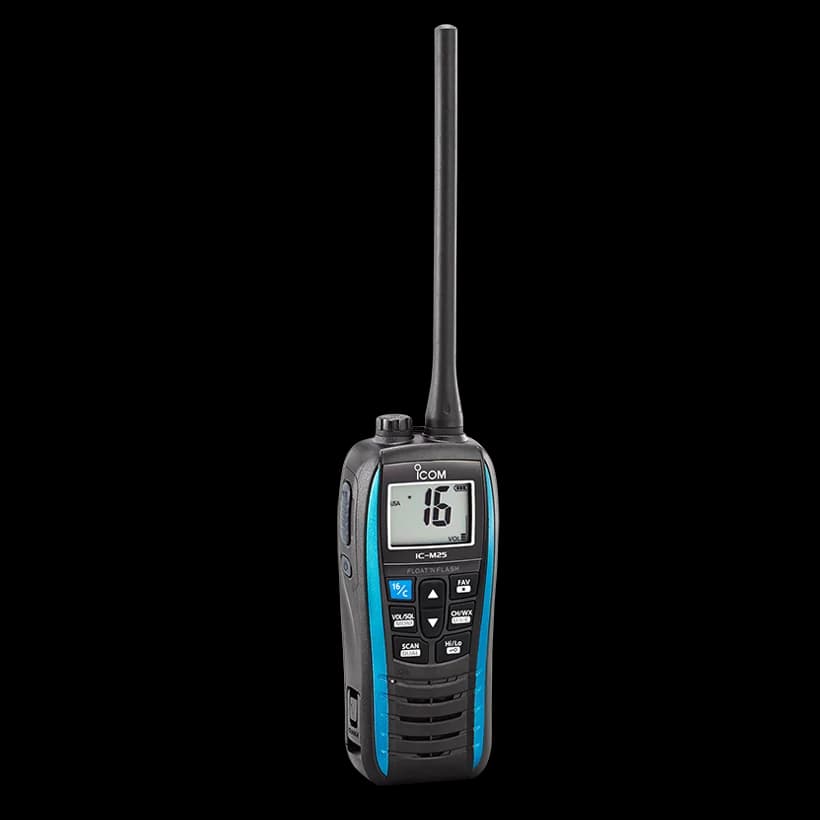

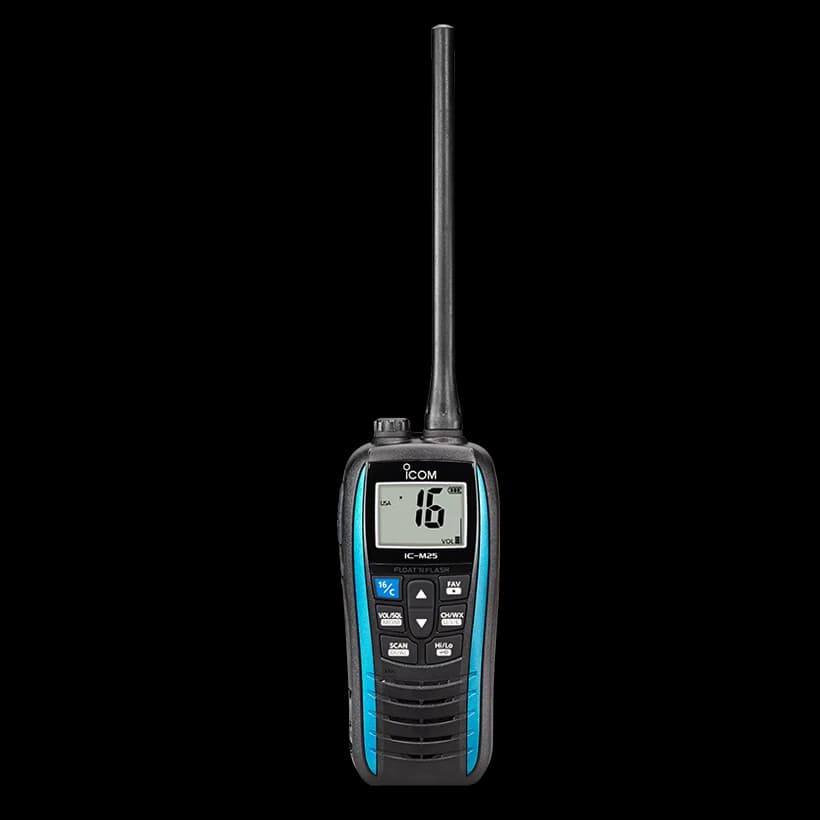

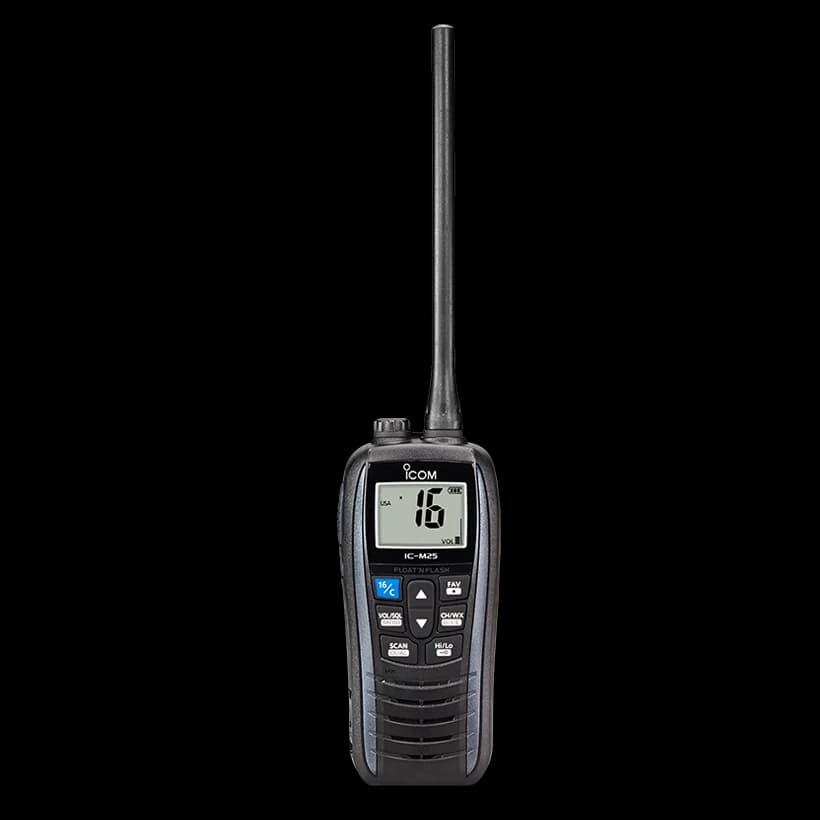

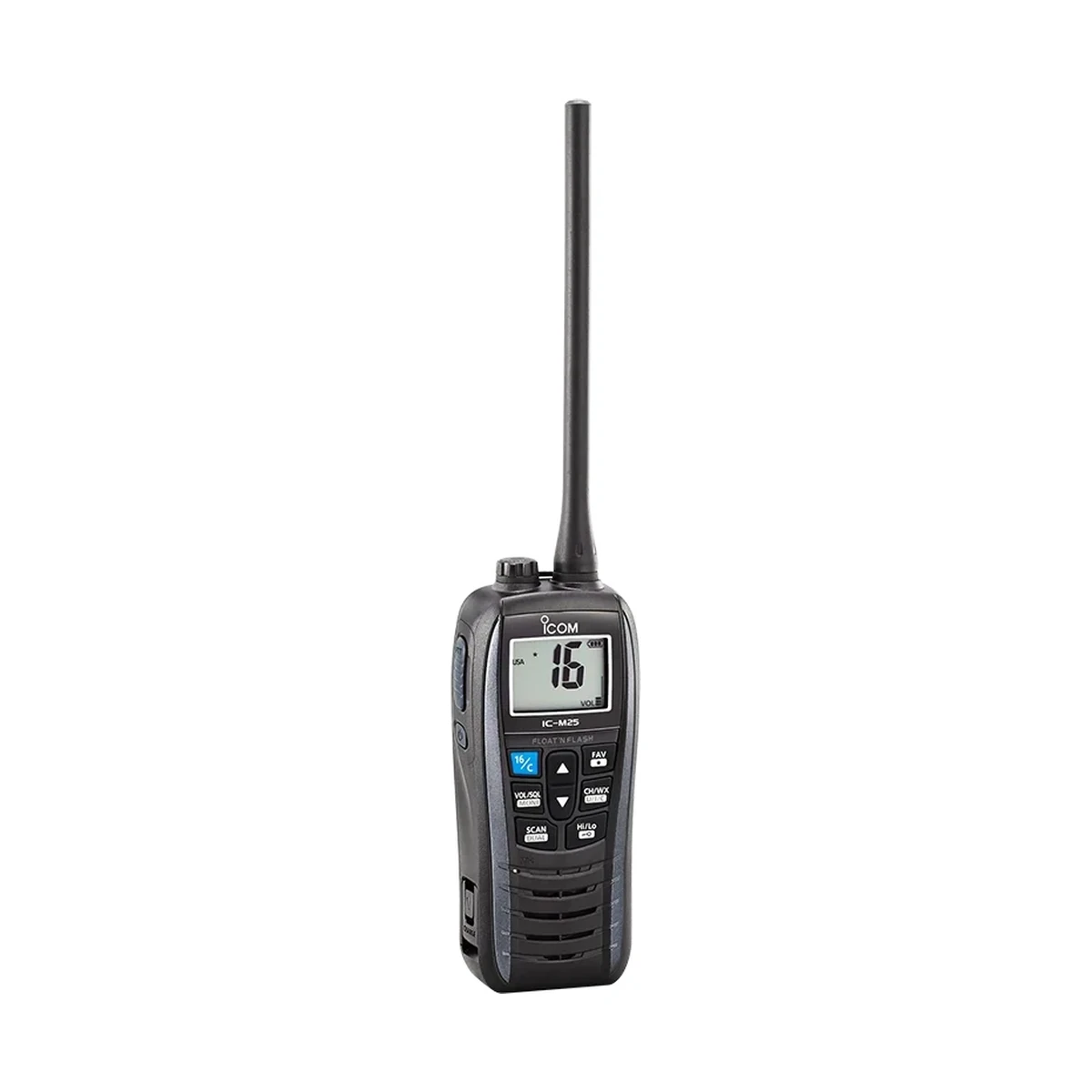

IC-M25
Discontinued by the manufacturer. Three Color Choices and Smart Features. Slim, Lightweight, High Performance Large LCD, Simple User Interface USB Charging (Micro-B USB type) Float'n Flash 11 Hours of Battery Life Optional Speaker-Microphone, HM-213 550mW Audio Output PDF Brochure
- Brand
- Icom
- Category
- Marine
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Frequency range (Tx) | 156.025–157.425 MHz |
|---|---|
| Frequency range (Rx) | 156.050–163.275 MHz |
| Usable channel groups | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM) |
| Power supply voltage | 3.7 V DC nominal |
| Current drain (Tx) | 2.3 A |
| Current drain (Rx - Internal SP/External SP) | 400 mA/200 mA (Max. audio) |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F |
| Antenna impedance | 50 Ω |
| Dimensions (W×H×D) | 56.6×134.2×30.5 mm; 2.2×5.3×1.2 in |
| Weight (approximately) | 218 g; 7.7 oz |
| Output power | 5 W (approximate)/1 W |
| Max. frequency deviation | ±5.0 kHz |
| Frequency stability | ±10 ppm |
| Spurious emissions | –68 dBc typical |
| Adjacent channel power | 70 dB |
| Residual modulation | 40 dB |
| Sensitivity | 0.25 μV typical (at 12 dB SINAD) |
| Squelch sensitivity | 0.25 μV typical (at threshold) |
| Adjacent channel selectivity | 70 dB typical |
| Spurious response | 70 dB typical |
| Intermodulation | 70 dB typical |
| Audio output power - Internal SP | 700 mW typical (8 Ω load) |
| Audio output power - External SP | 300 mW typical (4 Ω load) |
Overview
About this product
Other Features

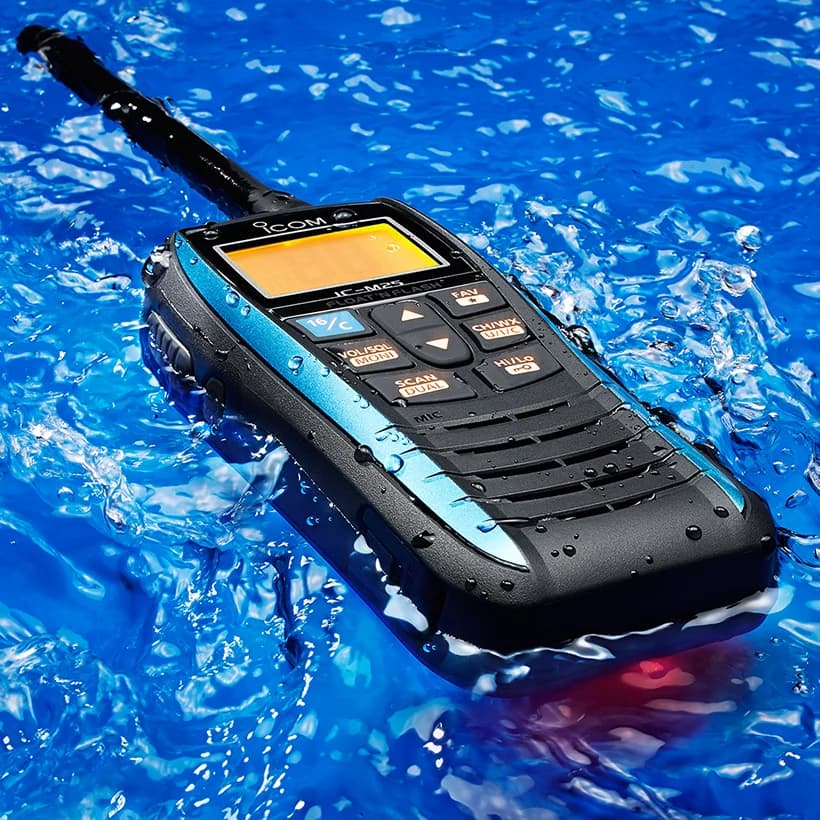

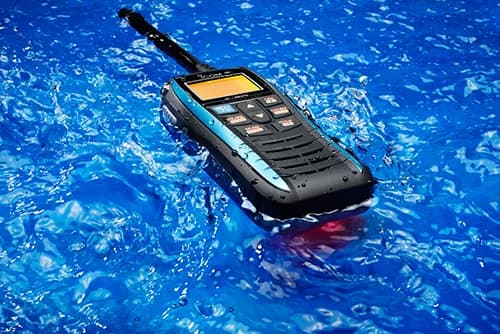

- IPX7 waterproof construction
(1m depth of water for 30 minutes) - 4-step battery life indicator
- Weather channel with weather alert
- Dual/Tri-watch functions
- Instant access to Ch 16 or programmable call channel
- Favorite channel function
- Monitor function opens noise squelch
- Auto scan function
- LCD auto backlighting
- AquaQuake™ prevents audio degradation from a water-logged speaker
Questions
Frequently asked questions
Is the Icom IC-M25 a handheld VHF radio?
Yes. The IC-M25 is a compact handheld unit weighing approximately 218g and measuring 56.6 x 134.2 x 30.5 mm, covering marine VHF channels for INT, USA, CAN and WX groups.
What is the transmit power of the IC-M25?
The IC-M25 offers selectable output power of approximately 5W or 1W.
What is the battery voltage of the IC-M25?
The IC-M25 runs on a nominal 3.7V DC power supply, drawing 2.3A on transmit.
What audio output does the IC-M25 provide?
The IC-M25 delivers 700 mW typical from its internal speaker (8 ohm load) or 300 mW typical through an external speaker (4 ohm load).
