Icom

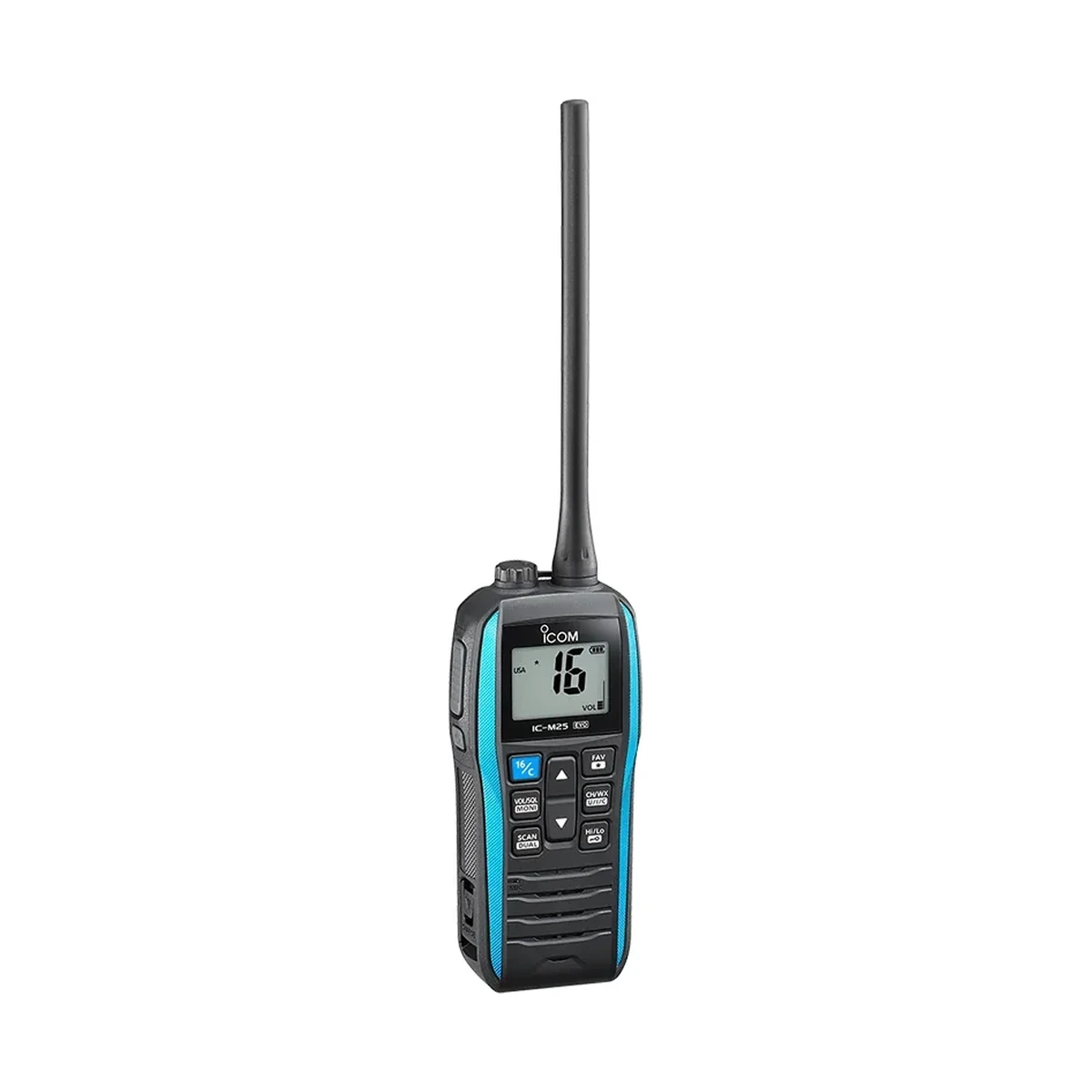

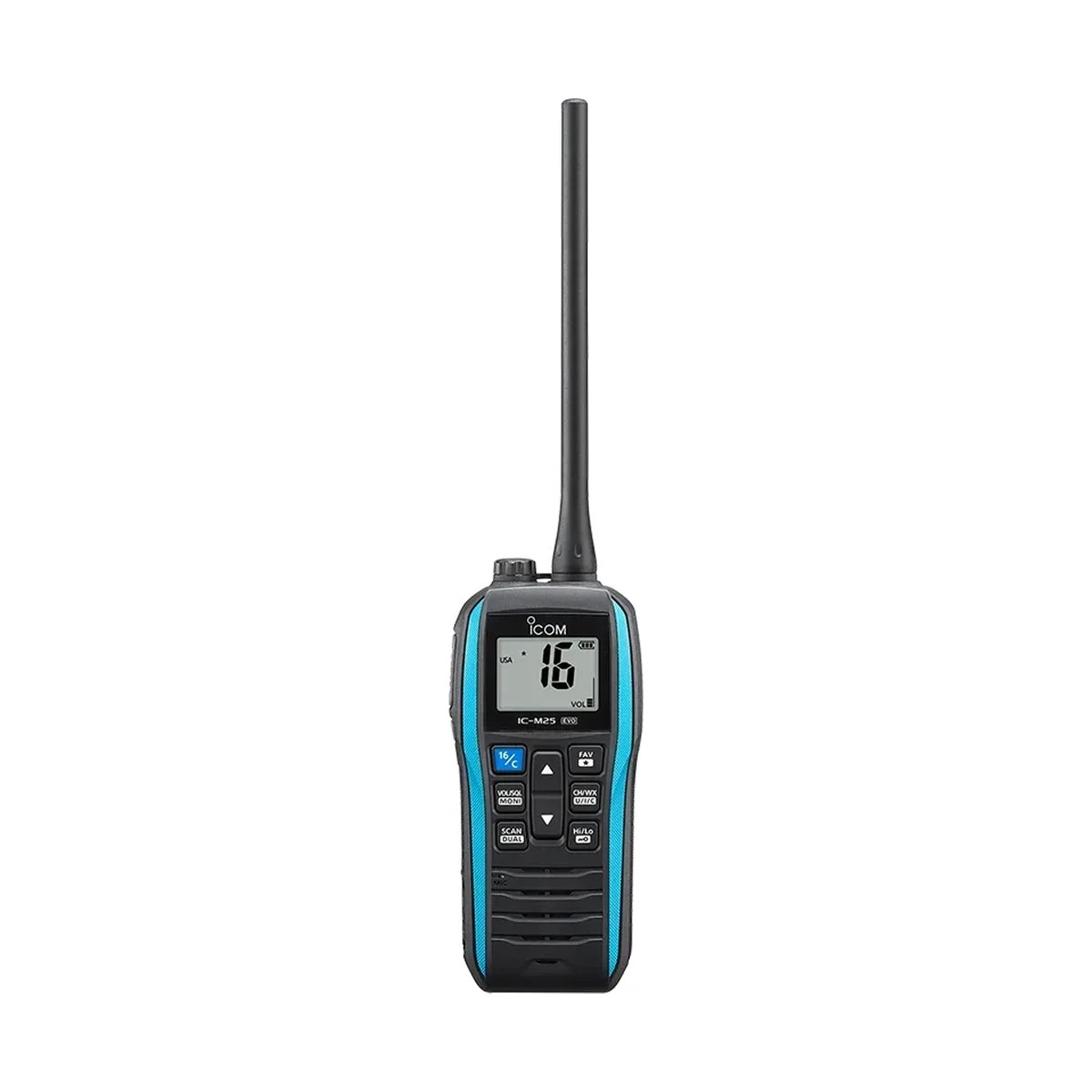

IC-M25EVO
Icom IC-M25EVO compact handheld VHF marine radio with selectable 5W/2.5W/1W output and a lightweight 228g body.
- Brand
- Icom
- Category
- Marine
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Frequency range (Tx) | 156.025 ~ 157.425 MHz |
|---|---|
| Frequency range (Rx) | 156.050 ~ 163.275 MHz |
| Usable channel groups | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM) |
| Power supply voltage | 3.7 V DC nominal |
| Current drain (Tx) | 2.3 A |
| Current drain (Rx Internal SP/External SP) | 400 mA/230 mA (max. audio) |
| Operating temperature range | –20°C ~ +60°C, –4°F ~ +140°F |
| Antenna impedance | 50 Ω |
| Dimensions (W × H × D) | 56.5 × 134.0 × 31.2 mm, 2.2 × 5.3 × 1.2 in |
| Weight (approximately) | 228 g, 8.0 oz (with antenna and MB-133) |
| Output power | Approximate 5 W / 2.5 W / 1 W |
| Max. frequency deviation | ±5.0 kHz |
| Frequency stability | ±10 ppm |
| Spurious emissions | –68 dBc typical |
| Adjacent channel power | More than 70 dB |
| Residual modulation | More than 40 dB |
| Sensitivity | 0.25 μV typical (at 12 dB SINAD) |
| Squelch sensitivity | 0.25 μV typical (at threshold) |
| Adjacent channel selectivity | 70 dB typical |
| Spurious response | 70 dB typical |
| Intermodulation | 70 dB typical |
| Audio output power (Internal SP) | 700 mW typical (8 Ω load) |
| Audio output power (External SP) | 300 mW typical (4 Ω load) |
Overview
About this product
The IC-M25EVO is a compact handheld VHF marine radio transmitting on 156.025 to 157.425MHz across the INT, USA, CAN and WX channel groups, with selectable 5W, 2.5W or 1W output from its 3.7V DC battery. It draws 2.3A on high-power transmit and delivers 700mW of internal speaker audio (300mW external), while weighing just 228g with antenna and clip fitted in a 56.5 x 134.0 x 31.2mm body. It is rated to operate from -20C to +60C.
Questions
Frequently asked questions
What is the output power of the Icom IC-M25EVO?
The IC-M25EVO transmits at approximately 5 W, 2.5 W or 1 W.
What battery does the IC-M25EVO use?
It runs on a 3.7 V DC nominal battery, drawing about 2.3 A on transmit.
How much does the IC-M25EVO weigh?
Approximately 228 g (8.0 oz) with antenna and MB-133 clip fitted.
