Icom
IC-M37
VHF Transceivers Key Features More power, more waterproof, more form factor Voice boost and mute functions Low Battery Alert Function Dual/Tri-Watch Functions Float n Flash Function Instant Access to Chanel and call Channel Favorite Channel Function Weather…
- Brand
- Icom
- Category
- Marine
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Frequency range – TX | 156.025–157.425 MHz |
|---|---|
| Frequency range – RX | 156.050–163.275 MHz |
| Usable channel groups | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E |
| Current drain (at 3.7 V DC) – TX (6.0 W/1.0 W) | 2.75 A/1.0 A |
| Current drain – RX (Max. audio) | 0.4 A/0.2 A (Internal/External SP) |
| Operating temperature range | −20 °C to +60 °C, −4 °F to +140 °F |
| Antenna impedance | 50 Ω |
| Dimensions (W×H×D) | 59.7 × 140.5 × 38.7 mm, 2.4 × 5.5 × 1.5 in |
| Weight (approximate) | 293 g, 10.3 oz (with BP-296, antenna, belt clip) |
| Output power (Hi/Low) | 6 W/1 W |
| Max. frequency deviation | ±5.0 kHz |
| Frequency stability | ±10 ppm |
| Spurious emissions | −68 dBc typical |
| Sensitivity (at 12 dB SINAD) | 0.25 μV typical |
| Squelch sensitivity (Threshold) | 0.25 μV typical |
| Adjacent channel selectivity | 70 dB typical |
| Spurious response | 70 dB typical |
| Intermodulation | 70 dB typical |
| Hum and noise | 40 dB |
| Audio output power – Internal SP | 0.7 W typical (8 Ω load) |
| Audio output power – External SP | 0.3 W typical (4 Ω load) |
Overview
About this product
Additional Features:
- Large Keys and Easy-to-Grip Design
- IP57 dust-protection and waterproof protection (1 m depth of water for 30 minutes)
- Low Battery Alert function
- Voice Loud and Mute function enables to temporary maximize/mute the volume
- AquaQuake™ function prevents audio degradation from a water-logged speaker
- Dualwatch and Tri-Watch functions
- Favorite Channel function
- Instant access to channel 16 and the Call channel
- BP-296 user replaceable Li-ion battery pack supplied
- Weather channels with Weather Alert function

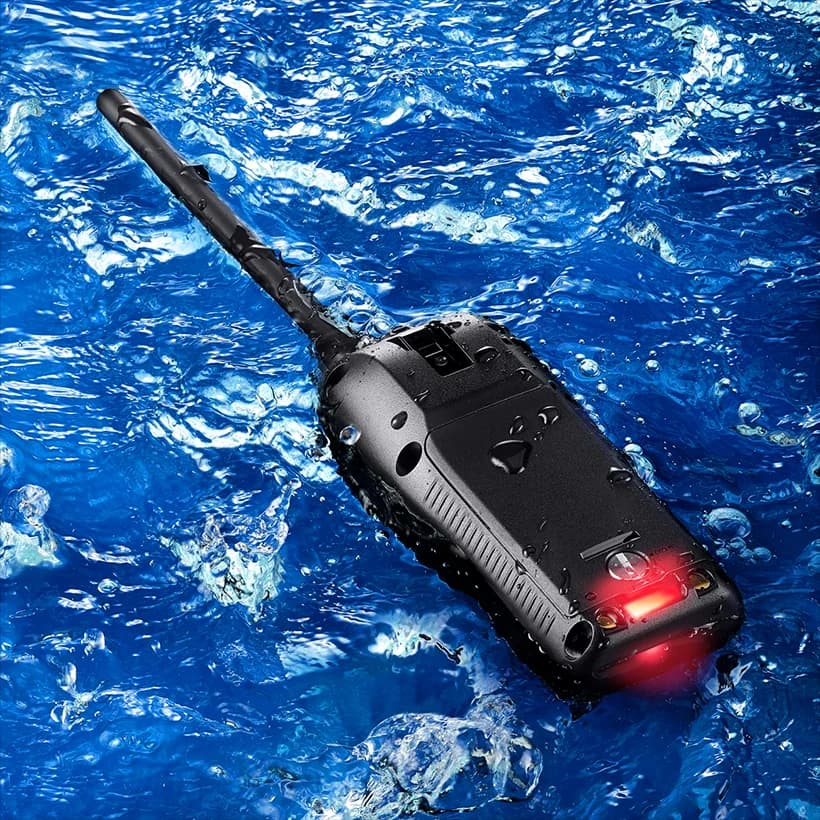

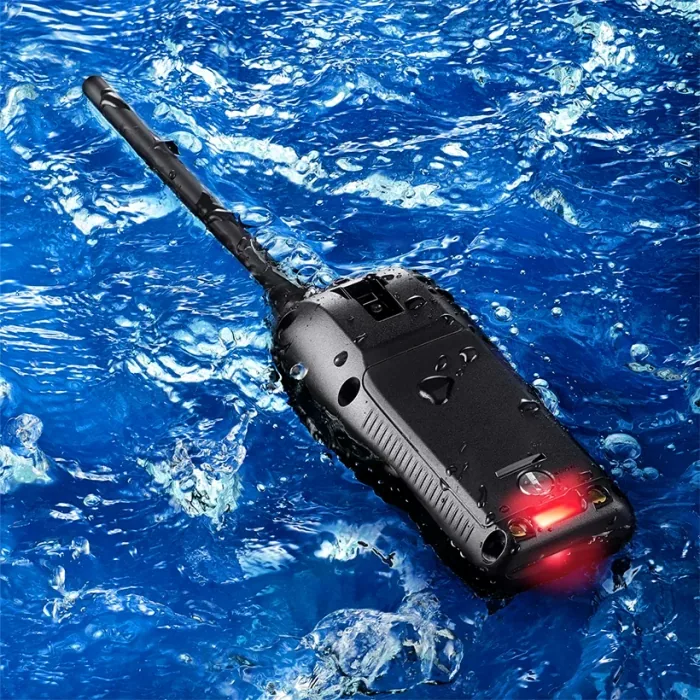

- Float’n Flash Function
- Channel History Function Stores the Last Five Channels Used for Easy Recall
- More than 12 Hours* of Long-Lasting Operating Time (with BP-296)
- 700 mW Audio Output
- 6 W RF Output Power
