Icom
A portable QRP transceiver covering HF through 430/440 MHz with D-STAR digital voice, up to 10 W output, and 500 memory channels.
Technical
| Frequency coverage (USA Version) - Receiver | 0.030–199.999, 400.000–470.000 MHz |
|---|---|
| Frequency coverage (USA Version) - Transmitter | 1.800–1.999, 3.500–3.999, 5.255–5.405, 7.000–7.300, 10.100–10.150, 14.000–14.350, 18.068–18.168, 21.000–21.450, 24.890–24.990, 28.000–29.700, 50.000–54.000, 144.000–148.000, 430.000–450.000 MHz |
| Mode | USB, LSB, CW, RTTY, AM, DV, FM, WFM (Rx only) |
| Memory channels | 500 channels (100 groups) |
| Scan edges | 25 channels |
| Call channels | 4 channels (2 channels × 2 bands) |
| Antenna connector | BNC connector (50Ω) (One connector for all bands) |
| Power supply requirement | 13.8 V DC ±15% (with external power supply); 7.4 V DC (with BP-272) |
| Operating temperature range | –10°C to +60°C; +14°F to +140°F |
| Frequency stability | Less than ± 0.5 ppm (–10°C to +60°C; 14°F to 140°F) |
| Frequency resolution | 1 Hz |
| Current drain (13.8 V DC) - TX (Max. power) | Less than 3 A (10 W) |
| Current drain (7.4 V DC) - TX (Max. power) | Less than 2.5 A (5 W) |
| Dimensions | 200×83.5×82 mm; 7.9×3.3×3.2 in (W×H×D, projections not included) |
| Weight | 1.1 kg; 2.4 lb (approximate; including BP-272) |
| Output power (13.8 V DC) - SSB/CW/RTTY/FM/DV | 0.1 to 10 W |
| Output power (7.4 V DC) - SSB/CW/RTTY/FM/DV | 0.1 to 5 W |
| Spurious emissions (HF) | Less than −50 dB |
| Receiver system (0.030 to 24.999 MHz) | RF Direct Sampling |
| Receiver system (25.000 MHz and above) | Down Conversion IF Sampling |
| Sensitivity (1.800 to 29.999 MHz) - SSB/CW (10 dB S/N) | 0.20 μV |
| Sensitivity (50 MHz to 54 MHz) - SSB/CW (10 dB S/N) | 0.15 μV |
| Sensitivity (144/430/440 MHz) - SSB/CW (10 dB S/N) | 0.11 μV |
| Audio output power - Internal SP | More than 530 mW (12 Ω load at 10% distortion) |
| Audio output power - External SP | More than 200 mW (8 Ω load at 10% distortion) |
Overview

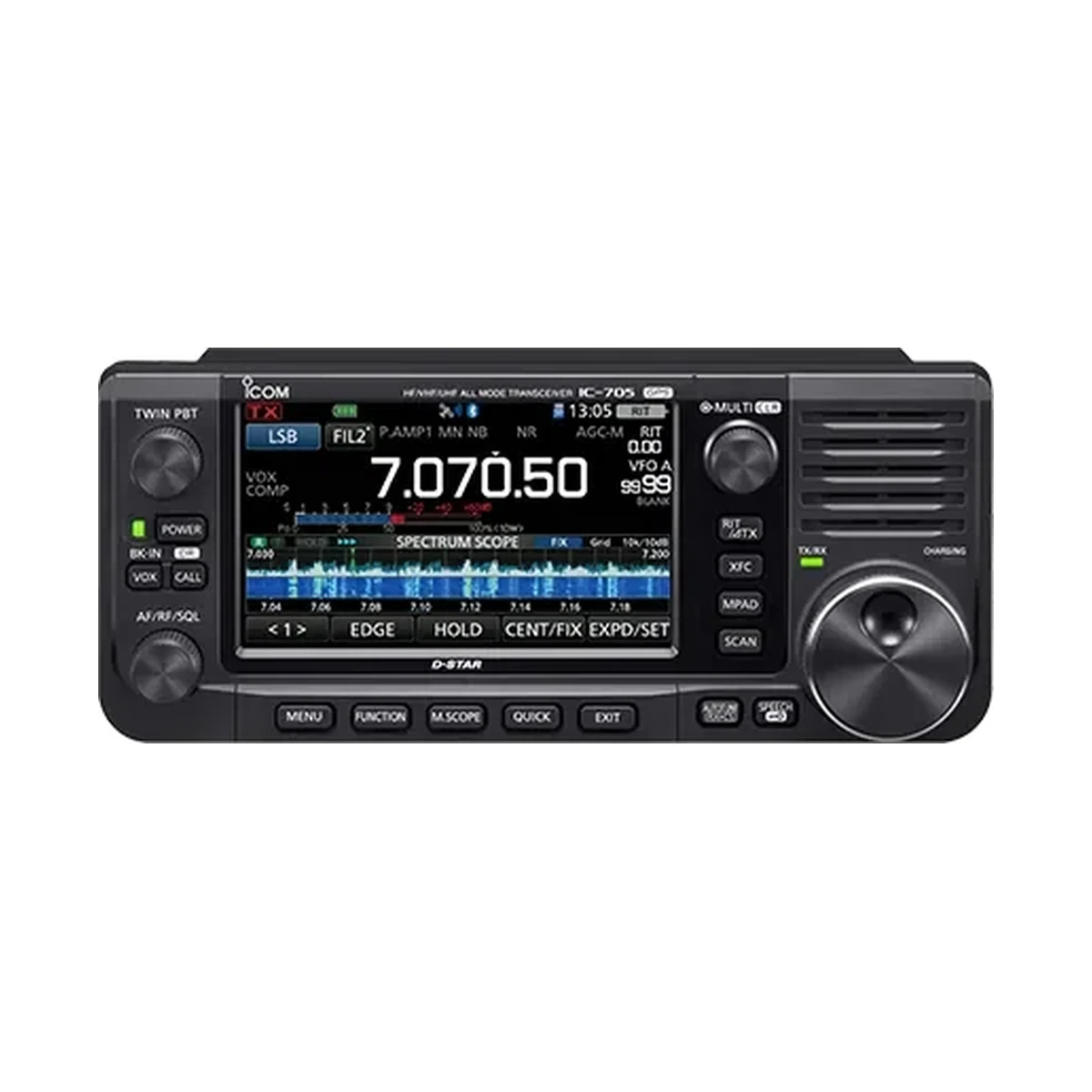

The IC-705 is a portable QRP transceiver covering HF, 50 MHz, 144 MHz, and 430/440 MHz, receiving continuously from 0.030 to 199.999 MHz and 400.000 to 470.000 MHz. It supports USB, LSB, CW, RTTY, AM, D-STAR digital voice, FM, and wideband FM receive, with output up to 10 W on 13.8 V DC external power or 5 W on its BP-272 battery pack. The radio holds 500 memory channels across 100 groups, weighs approximately 1.1 kg with its battery installed, and measures 200 x 83.5 x 82 mm.
Questions
The USA version receives from 0.030 to 199.999 MHz and 400.000 to 470.000 MHz, and transmits on the 160, 80, 60, 40, 30, 20, 17, 15, 12, 10, 6, 2 metre and 70 cm amateur bands.
Running on 13.8 V DC external power the IC-705 outputs up to 10 W (0.1-10 W); on its BP-272 battery at 7.4 V DC it outputs up to 5 W (0.1-5 W).
Yes, its supported modes include USB, LSB, CW, RTTY, AM, DV (D-STAR), FM and WFM (receive only).
The IC-705 weighs approximately 1.1 kg (2.4 lb) including its BP-272 battery, with dimensions of 200 x 83.5 x 82 mm (7.9 x 3.3 x 3.2 in).
