Icom

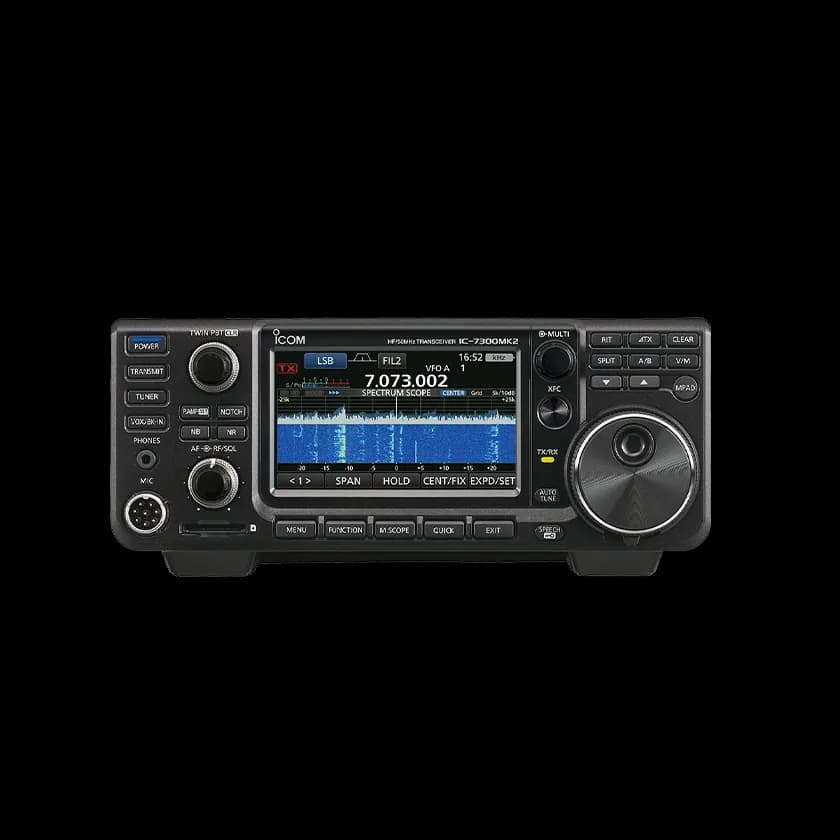

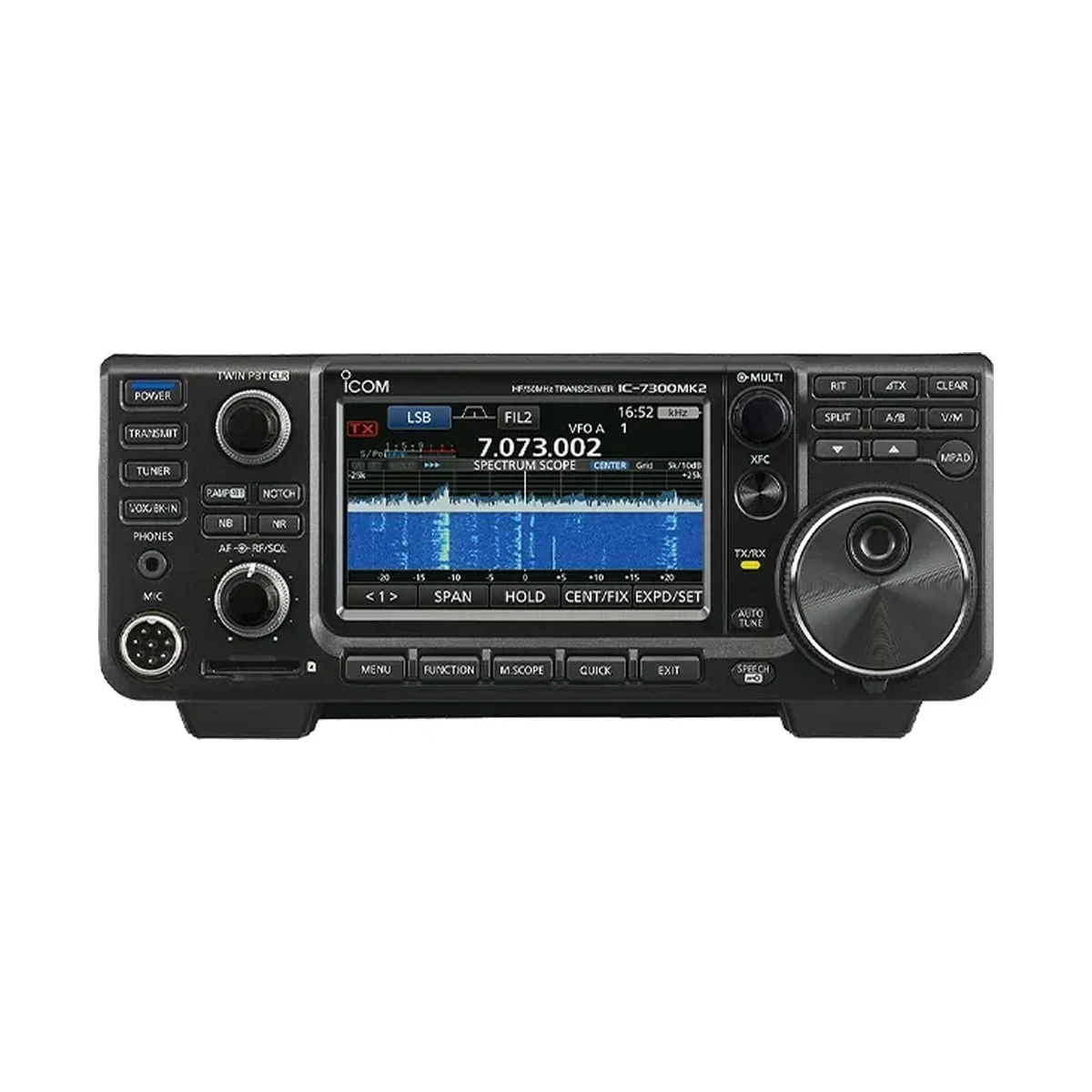

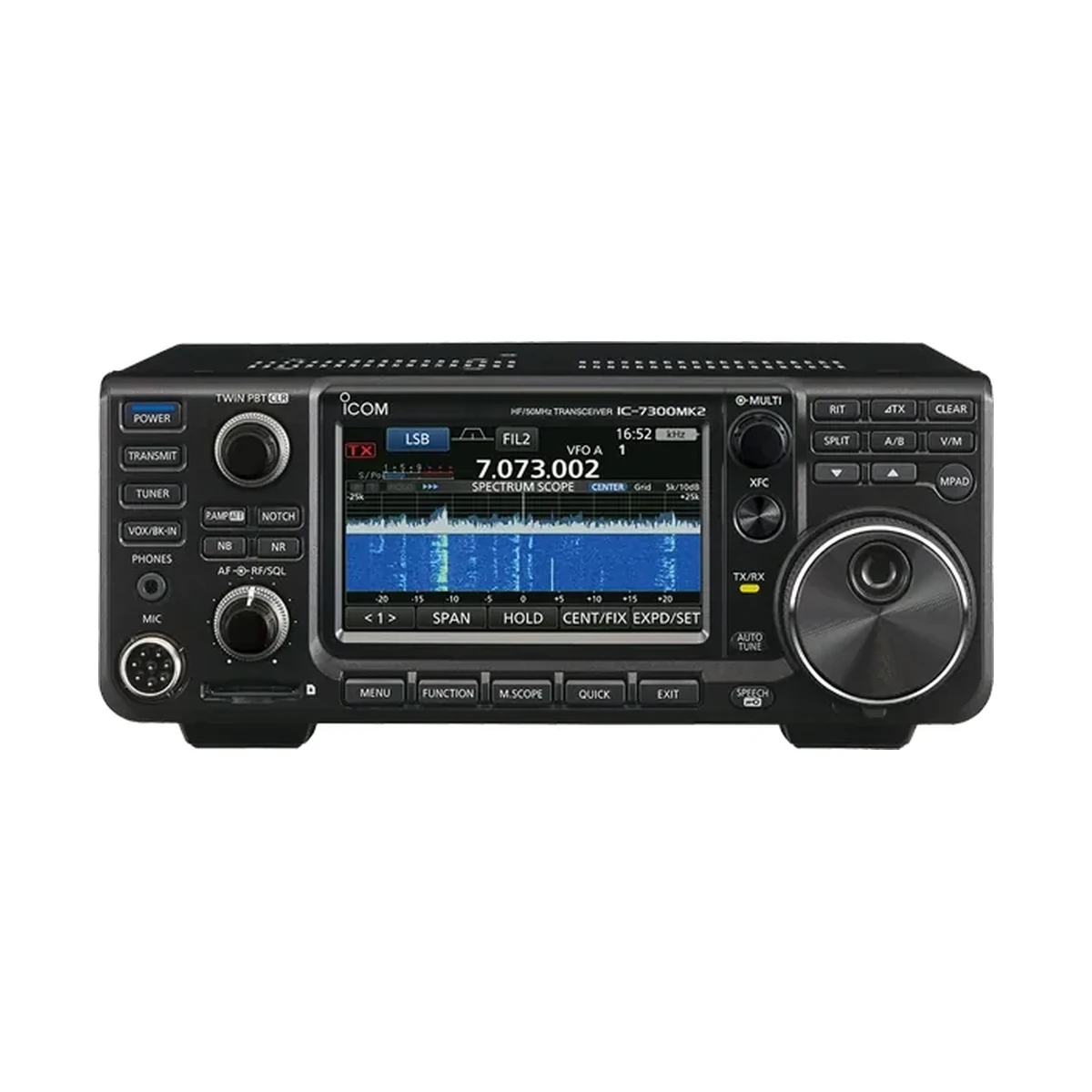

IC-7300MK2
An HF/50 MHz base transceiver with a direct sampling receiver, 100 W output, and a built-in antenna tuner covering 1.8-70 MHz.
- Brand
- Icom
- Category
- Amateur Radio
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Frequency coverage (USA Rx) | 0.030 ~ 74.800 MHz (Guaranteed range: 0.500 ~ 29.999, 50.000 ~ 54.000 MHz) |
|---|---|
| Frequency coverage (USA Tx) | 1.8–1.999 MHz, 3.5–3.999 MHz, 5.255–5.405 MHz, 7.0–7.3 MHz, 10.1–10.15 MHz, 14.0–14.35 MHz, 18.068–18.168 MHz, 21.0–21.45 MHz, 24.89–24.99 MHz, 28.0–29.7 MHz, 50.0–54.0 MHz |
| Mode | A1A (CW), A3E (AM), J3E (SSB), F1B (RTTY), F3E (FM) |
| Memory channels | 101 (99 regular, 2 scan edges) |
| Antenna impedance | 50Ω unbalanced |
| Antenna connector | SO-239 × 1, SMA × 2 (RX antenna IN/OUT) |
| Power supply | 13.8 V DC ±15% |
| Power consumption (Tx) | 21 A |
| Power consumption (Rx) | 0.7 A typical (Standby), 1.25 A (Maximum audio) |
| Operating temperature | –10 ˚C ~ +60 ˚C; 14 ˚F ~ 140 ˚F |
| Frequency stability | ±0.5 ppm or less (–10 ˚C ~ +60 ˚C) |
| Frequency resolution | 1 Hz |
| Dimensions | 240 × 94 × 237.6 mm; 9.4 × 3.7 × 9.4 in |
| Weight | 4.1 kg; 9.0 lb |
| Output power (HF/50 MHz SSB/CW/FM/RTTY) | 0.6 ~ 100 W |
| Output power (HF/50 MHz AM) | 0.125 ~ 25 W |
| Output power (70 MHz SSB/CW/FM/RTTY) | 0.3 ~ 50 W |
| Spurious emission (HF) | –50 dB or less |
| Receiver system | Direct Sampling Superheterodyne |
| Intermediate frequency | 12 kHz |
| Sensitivity (1.8–29.999 MHz SSB/CW) | –16 dBμV (0.16 μV) |
| Sensitivity (50 MHz SSB/CW) | –18 dBμV (0.13 μV) |
| Audio output power | 2.5 W or more (at 10 % distortion with an 8 Ω load, 1 kHz) |
| Tuner frequency range | 1.8 ~ 70 MHz bands |
| Tuner matching impedance range | 16.7 ~ 150Ω unbalanced (3 : 1 VSWR or less) |
Overview
About this product
The IC-7300MK2 is an HF and 50 MHz base transceiver with a direct sampling superheterodyne receiver covering 0.030 to 74.800 MHz on receive, and transmitting on the amateur HF bands plus 50 MHz and 70 MHz. It outputs 0.6 to 100 W on SSB, CW, FM, and RTTY (0.125 to 25 W on AM), with a built-in antenna tuner covering 1.8 to 70 MHz and matching impedances from 16.7 to 150 ohms. The set holds 101 memory channels, weighs 4.1 kg, measures 240 x 94 x 237.6 mm, and maintains frequency stability of ±0.5 ppm across its -10°C to +60°C operating range.
Questions
Frequently asked questions
What frequency bands can the IC-7300MK2 transmit on?
The USA version transmits on the 1.8, 3.5, 5.255-5.405, 7, 10.1, 14, 18.068-18.168, 21, 24.89-24.99, 28 and 50 MHz amateur bands, with receive coverage from 0.030 to 74.800 MHz.
What output power does the IC-7300MK2 deliver?
On HF and 50 MHz, the IC-7300MK2 delivers 0.6 to 100 W on SSB/CW/FM/RTTY and 0.125 to 25 W on AM; on 70 MHz it delivers 0.3 to 50 W on SSB/CW/FM/RTTY.
Does the IC-7300MK2 have a built-in antenna tuner?
Yes, its internal tuner covers 1.8 to 70 MHz bands and matches impedances from 16.7 to 150 ohms unbalanced (3:1 VSWR or less).
How many memory channels does the IC-7300MK2 have?
The IC-7300MK2 has 101 memory channels: 99 regular channels plus 2 scan edges.
