Digital Yacht
5G Xtream Router
The Digital Yacht 5G Xtream Router is a marine-grade 5G/4G dual-SIM router with dual-band WiFi, four LAN ports, and IPX4 protection for onboard internet connectivity.
- Brand
- Digital Yacht
- Category
- Marine Network & Interface
- Manufacturer
- Digital Yacht website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Operating Temp | -40 to +75 C |
|---|---|
| Main unit dimensions (ex antennas) | 180 x 125 x 55mm |
| Weight | 3800 g |
| Protection | IPX4 |
| 5G/LTE Technology | 5G Sub-6Ghz SA/NSA, up to 2.1/3.3Gbps downlink (4x4 MIMO); 4G(LTE) CAT 20 up to 2GB/s |
| 5G Support Bands (NSA) | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77 |
| 5G Support Bands (SA) | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 |
| 4G Support Bands (LTE-FDD) | B1, B3, B5, B7, B8, B20, B28, B32 |
| 4G Support Bands (LTE-TDD) | B38, B40, B41, B42, B43 |
| WiFi | Dual Wi-Fi band independent 2.4 & 5 GHz (Maximum 150 connections), 802.11 b/g/n/ac |
| 4G & 5G Antennas | Dual 48cm external wide band high gain MIMO supplied with 7m cables and mounting bases (10 & 20m options available) plus additional 100mm dome antenna for 4x4 MIMO operation optimised for 5G (7m cable only) |
| Interfaces | 4 x LAN 10/100 Ethernet Port, 1 x WAN 10/100 Ethernet Port |
Overview
About this product

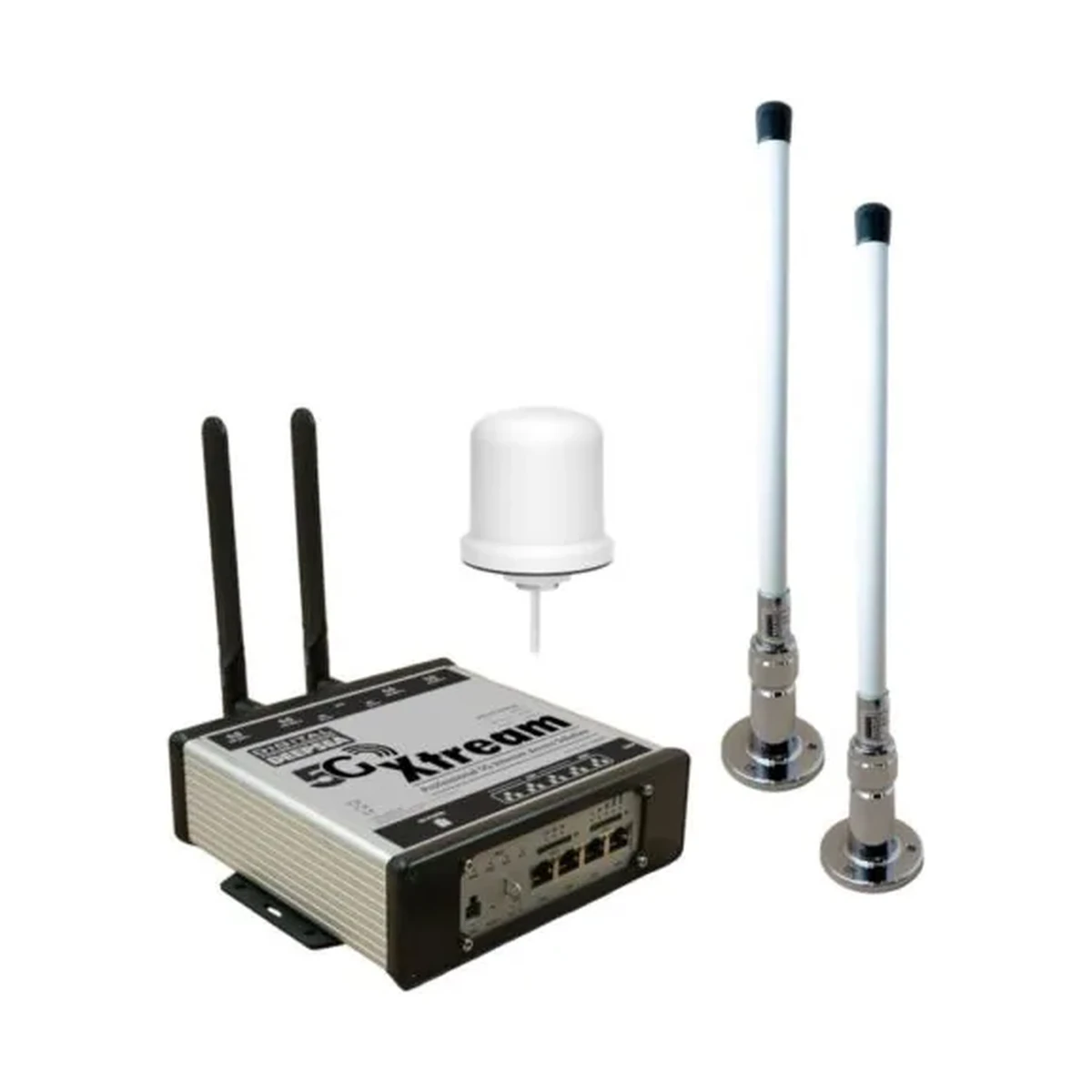

The 5G Xtream Router is Digital Yacht's high-end onboard connectivity solution, combining 5G Sub-6GHz SA/NSA support (up to 2.1/3.3Gbps downlink over 4x4 MIMO) with 4G LTE Cat 20 fallback for reliable internet access at sea. It provides dual independent 2.4GHz and 5GHz WiFi bands handling up to 150 connections, four LAN ports plus a WAN port, and ships with dual 48cm external MIMO antennas alongside a dedicated dome antenna for optimised 5G reception. Housed in an IPX4-rated enclosure rated from -40 to +75C, it is built to withstand the marine environment while keeping crew and navigation systems online.
Questions
Frequently asked questions
What operating temperature range does the 5G Xtream Router support?
The 5G Xtream Router is rated for operation from -40C to +75C, suiting it to exposed onboard installation locations.
Is the 5G Xtream Router protected against water and dust?
It carries an IPX4 protection rating.
What 5G and 4G networks does the 5G Xtream Router support?
It supports 5G Sub-6GHz SA/NSA with speeds up to 2.1/3.3Gbps downlink (4x4 MIMO), plus 4G LTE CAT 20 up to 2GB/s. Supported 5G NSA bands are n1, n3, n5, n7, n8, n20, n28, n38, n40, n41 and n77, with 5G SA adding n78. 4G LTE-FDD coverage is B1, B3, B5, B7, B8, B20, B28 and B32, and LTE-TDD coverage is B38, B40, B41, B42 and B43.
What WiFi and wired network connections does the 5G Xtream Router provide?
It broadcasts independent dual-band WiFi (2.4 & 5 GHz, 802.11 b/g/n/ac) supporting up to 150 connections, and provides 4 x LAN 10/100 Ethernet ports plus 1 x WAN 10/100 Ethernet port for wired devices.
