Haiyang

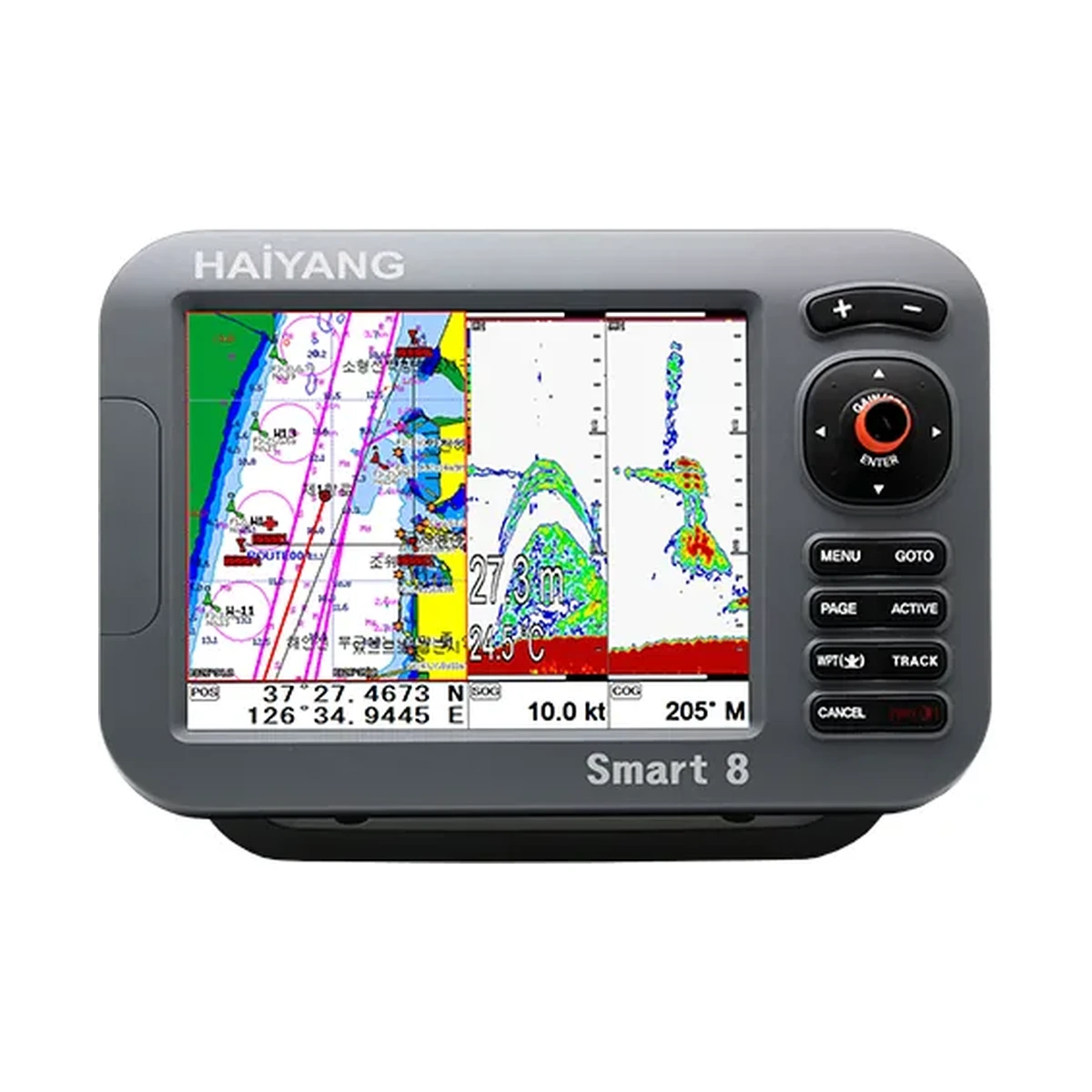

Haiyang HD 880 CF
The Haiyang HD 880 CF is an 8-inch SVGA chartplotter/fishfinder combo with multi-constellation GNSS and IMO Resolution MSC.112(73) compliance.
- Brand
- Haiyang
- Category
- Marine
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Display Screen | 8 inch color LCD with LED backlight |
|---|---|
| Resolution | SVGA (800 x 600 pixels) |
| Power Supply | DC 12V ~ 36V (±10%) |
| Operation Temperature (Display Unit) | -15°C ~ +50°C |
| Operation Temperature (Antenna Unit) | -25°C ~ +70°C |
| Performance Standard | IMO Resolution MSC.112(73) |
| GNSS Receiver Capabilities | GPS L1 C/A code, GLONASS L10F, QZSS L1 C/A code, Galileo E1B/E1C/L1 |
| Number of Channel | 52 channel over |
| Horizontal Positioning Accuracy (Autonomous) | 2.5m (CEP 50%) |
| Sensitivity | Acquisition -148 dBm, Tracking -165 dBm, Reacquisition -162 dBm |
| Nav Update | 1Hz |
| Support | DGPS, SBAS (EGNOS, WAAS, MASA, GAGAN, GLONASS) |
| Display Method | Mercator projection |
| Display Mode | True motion/N/S/E/W up/Course up/Head up |
| Latitude Limits | Between 85°N to 85°S |
| Map Scale | 0.05NM to 1,500NM |
| Map Datum | WGS-84 |
| Waypoint | 100,000 points (16 colors and 16 icons selectable per point) |
| Track Point | 50,000 points (2 types) |
| Route | Max capacity 100 Routes (20 WPTs per Route, each with name tags of 8 alphanumeric characters) |
| Draw Point | 1,000 points |
| Area Name | 1,000 points |
| Chart Data | HY-MAP (Built-in or External) / C-MAP 4D |
| Output Data | NMEA-0183 |
| Input Data | NMEA-0183 |
| Alarm | Arrival, Anchor, XTE, Interval timer, Userline |
| Fishfinder Display Mode | Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, Partial-zoom, A-scope |
| Fishfinder Frequency | 50 and 200 kHz |
| Fishfinder Output Power | 600W / 1.5kW |
| Range Speed (600W) | 2.5m ~ 600m |
| Range Speed (1,200W) | 2.5m ~ 1,500m |
| Image Speed | Fixed 8 speeds (4/1, 2/1, 1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop |
| Interference Rejection | 3 levels |
| Noise Rejection | 30 levels |
| Function | Gain (auto/manual), Range (auto/manual), Shift (auto/manual), White/Black line, Support speed sensor, Water temperature, Time machine, Contrast |
Overview
About this product
The Haiyang HD 880 CF combines an 8 inch color LCD (SVGA, 800 x 600) chartplotter with a dual-frequency 50 and 200 kHz fishfinder, and a 52-plus channel GNSS receiver covering GPS, GLONASS, QZSS and Galileo with DGPS/SBAS augmentation. It stores up to 100,000 waypoints, 50,000 track points and 100 routes, and reads HY-MAP and C-MAP 4D chart data over a Mercator projection display. It meets IMO Resolution MSC.112(73), and runs on a DC 12V to 36V supply with an antenna unit rated from -25°C to +70°C.
Questions
Frequently asked questions
What satellite systems does the HD-880CF's GPS receiver support?
The HD-880CF's GNSS receiver tracks GPS L1 C/A code, GLONASS L1OF, QZSS L1 C/A code and Galileo E1B/E1C/L1 across more than 52 channels, with DGPS and SBAS (EGNOS, WAAS, MSAS, GAGAN, GLONASS) augmentation support.
What size is the HD-880CF display?
It has an 8-inch color LCD with LED backlight at SVGA resolution (800 x 600 pixels).
How many waypoints and routes can the HD-880CF store?
It stores up to 100,000 waypoints (16 colors and 16 icons selectable per point), 50,000 track points, and a maximum of 100 routes with 20 waypoints per route.
What fishfinder power and depth range does the HD-880CF offer?
The built-in fishfinder runs at 50 and 200 kHz with 600W/1.5kW output power. Range is 2.5m to 600m at 600W, extending to 2.5m to 1,500m at 1,200W.
