Garmin
A 6.1-inch keyed-button fishfinder/chartplotter combo with built-in CHIRP sonar and ClearVu scanning for boats up to 32 GB of chart storage.
Technical
| Dimension | 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm) |
|---|---|
| Weight | 1.5 lbs (0.7 kg) |
| Water rating | IPX7 |
| Display type | WVGA, TN, keyed input |
| Display size | 6.1" x 3.4" (15.5 x 8.7 cm) |
| Display resolution | 800 x 480 pixels |

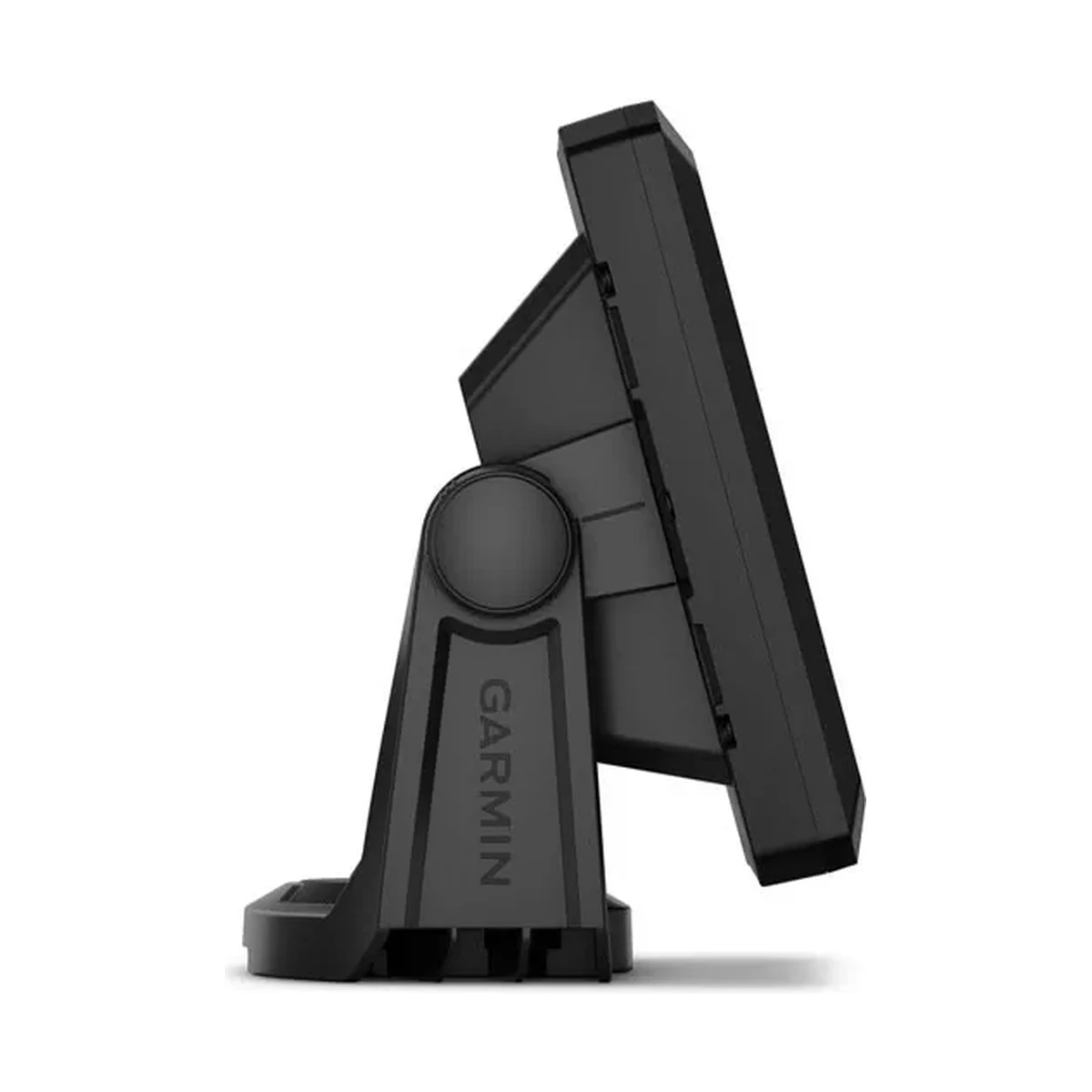

| Mounting options | Bail or flush |
| Accepts data cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation routes | 100 |
| Receiver | GPS, Galileo; built-in, 5 Hz, supports WAAS |
| Power input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 1.0 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18 W |
| Sonar power output | 500 W |
| Traditional sonar | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| Networking & connections | 1 4-pin transducer port, Garmin Wi-Fi network (local connection) |
Overview
The ECHOMAP UHD2 7" cv is a compact fishfinder and GPS combo unit with a 6.1 x 3.4 inch WVGA display, keyed controls and an IPX7-rated housing. It carries a built-in GPS and Galileo receiver at 5 Hz with WAAS support, along with a built-in 500 W CHIRP sonar offering traditional and ClearVu scanning at frequencies from 260 to 1200 kHz. Data storage runs to a single microSD card up to 32 GB, with capacity for 5,000 waypoints, 50 saved tracks and 100 routes, and it connects to a 4-pin transducer and a Garmin Wi-Fi network for chart and software updates. Power draw is a typical 1.0 A at 12 Vdc.
Questions
It has built-in traditional single channel CHIRP sonar (50/77/83/200 kHz, L, M, H CHIRP) plus built-in ClearVu scanning sonar (260/455/800/1000/1200 kHz), with 500 W of sonar power output.
Yes, it carries an IPX7 water rating.
Its built-in receiver supports GPS and Galileo at 5 Hz, with WAAS support.
It has a 6.1 x 3.4 inch (15.5 x 8.7 cm) WVGA display with keyed input, at 800 x 480 resolution.
