Icom

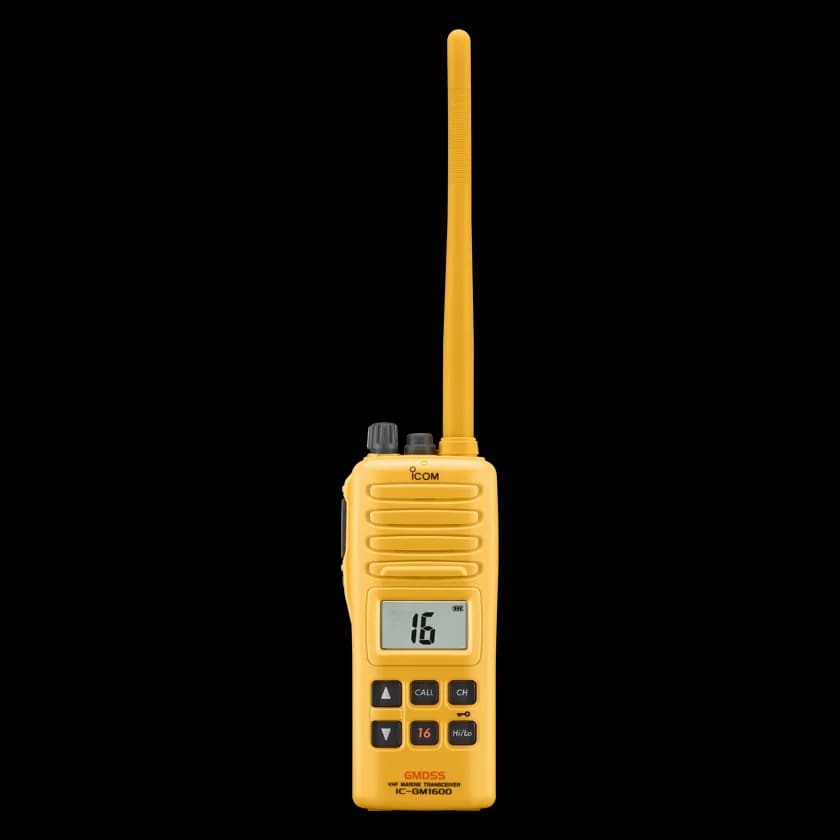

IC-GM1600
Icom IC-GM1600 GMDSS survival-craft VHF radio built to IMO MSC.149(77), rated for over 8 hours of operation even at -20C.
- Brand
- Icom
- Category
- Marine
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Frequency Range (Tx/Rx) | 156.300–156.875 MHz |
|---|---|
| Dimensions (W×H×D, projections not included) | 65×145×44 mm / 2.56×5.7×1.7 in |
| Weight (approx., with BP-234) | 385 g; 13.6 oz |
| Current Drain - Transmit (High) | 1.0 A (2 W)/0.7 A (1.2 W) |
| Current Drain - Max Audio | 400 mA (Internal SP)/200 mA (External SP) |
| Sensitivity (at 12 dB SINAD) | 0.20 µV typical |
| Intermodulation Rejection | 70 dB typical |
| Audio Output Power (10% dist./8 Ω load) | 350 mW typical (External SP) / 700 mW typical (Internal SP) |
| RF Output Power | 2 W/1.2 W |
| Waterproofing | 1m depth waterproof construction as specified by IMO resolution MSC.149(77) |
| Battery Operating Time (with optional BP-234 lithium pack) | More than 8 hours even at –20°C |
Overview
About this product
The IC-GM1600 is a GMDSS survival-craft two-way radio built to IMO resolution MSC.149(77), transmitting and receiving on 156.300 to 156.875MHz with selectable 2W or 1.2W RF output. It is rated to withstand 1 metre of water immersion and, fitted with the optional BP-234 lithium battery pack, delivers more than 8 hours of operating time even at -20C. Compact and lightweight at 385g and 65 x 145 x 44mm, it produces up to 700mW of internal speaker audio for use in survival craft and lifeboats.
Questions
Frequently asked questions
What is the output power of the Icom IC-GM1600?
It transmits at 2 W (high) or 1.2 W (low).
Is the IC-GM1600 waterproof?
Yes. It has 1 m depth waterproof construction as specified by IMO resolution MSC.149(77), the GMDSS two-way VHF radiotelephone apparatus standard.
What battery life does the IC-GM1600 offer?
With the optional BP-234 lithium battery pack it is rated for more than 8 hours of operation, even at -20 degrees C.
How much does the IC-GM1600 weigh?
Approximately 385 g (13.6 oz) with the BP-234 battery fitted.
