Icom

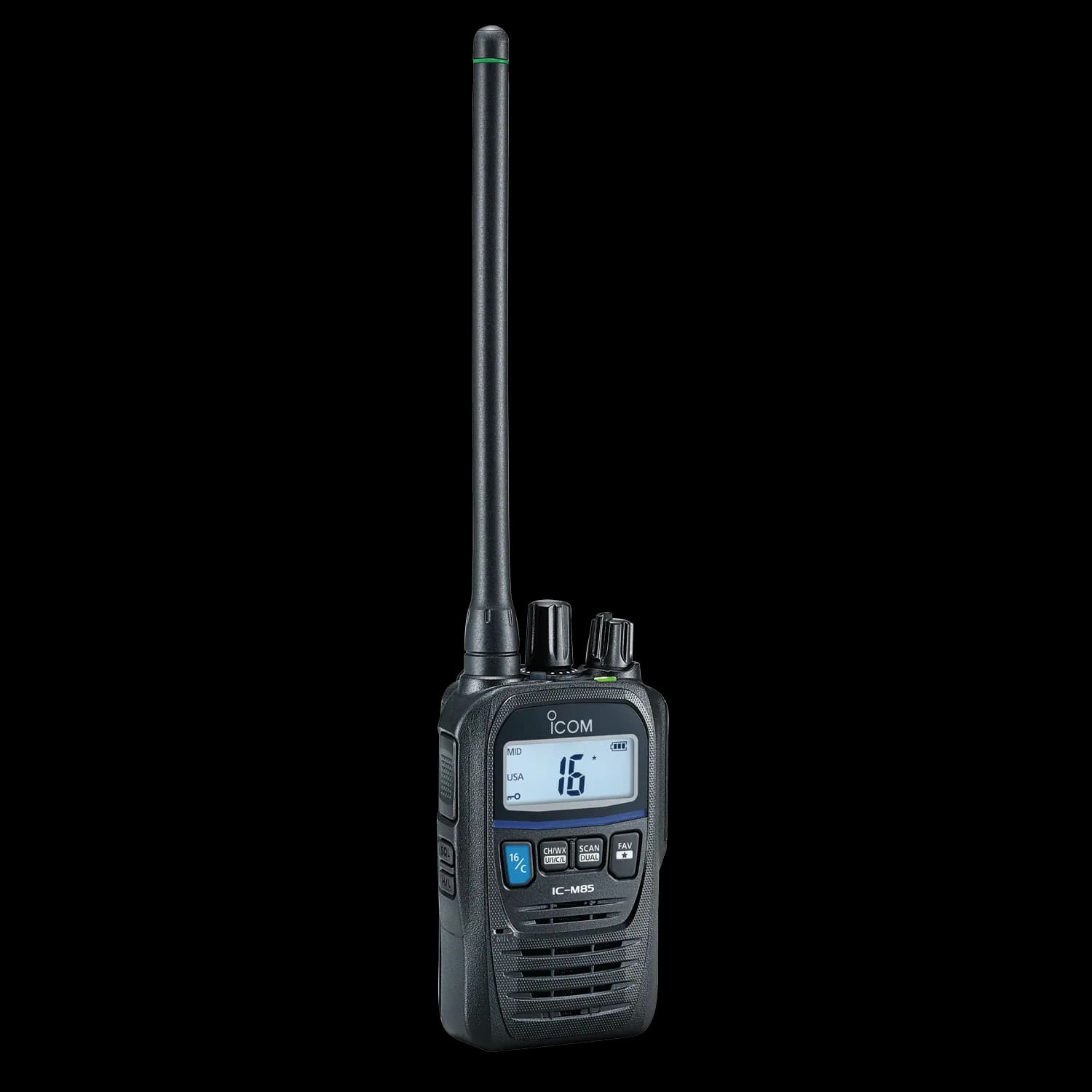

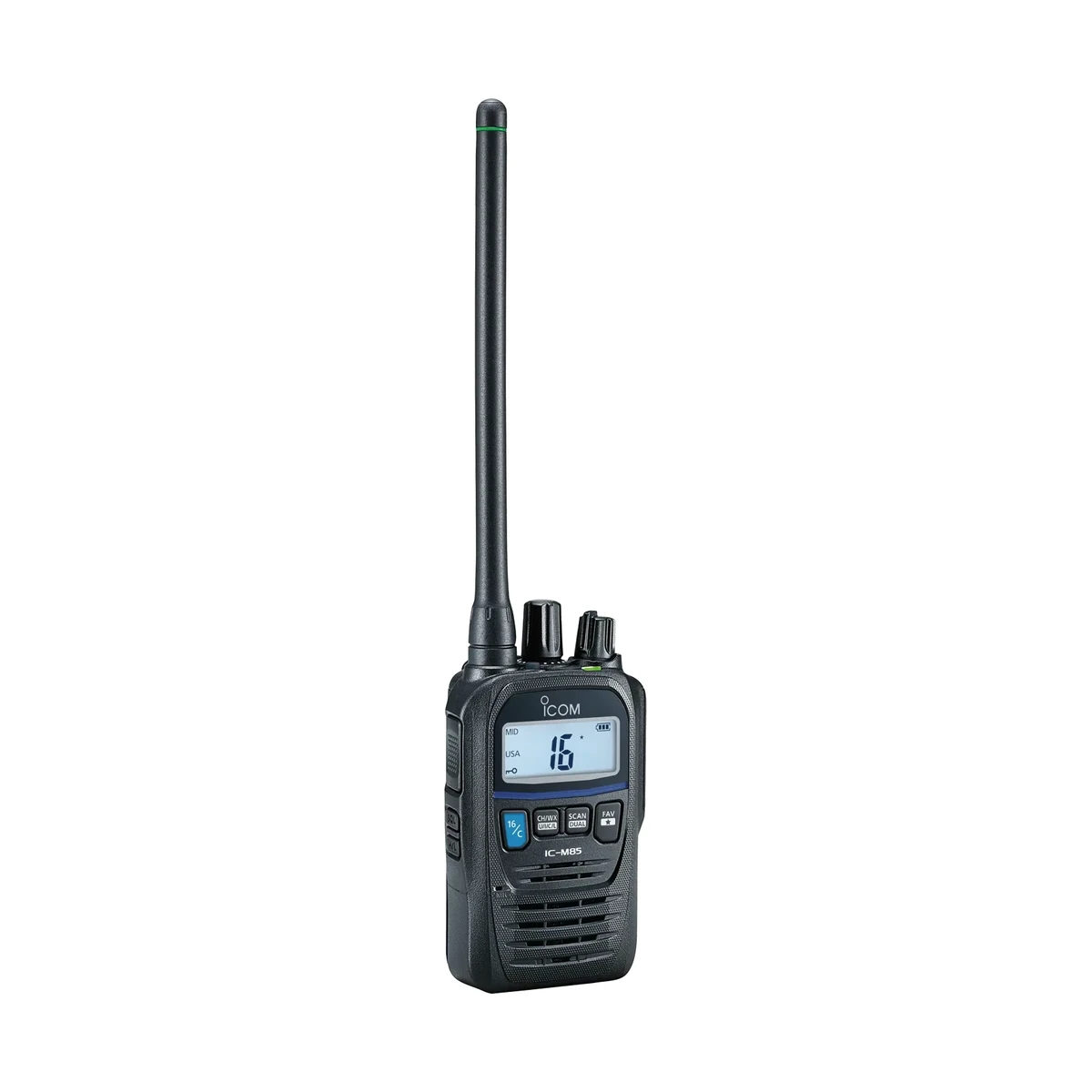

IC-M85UL — atex transceivers from Icom. Intrinsically safe marine handheld (UL913 Ed.8 / ANSI-TIA-4950-B).
Technical
| Marine channels | USA, INT, CAN, WX channels (varies by version) |
|---|---|
| Land mobile channels | 100 |
| Frequency coverage Tx | 156.025–157.425 MHz |
| Frequency coverage Rx | 156.050–163.275 MHz |
| Type of emissions (USA) | 16K0G3E (25 kHz) |
| Type of emissions (EXP) | 16K0G3E (25 kHz), 16K0F3E (25 kHz), 11K0F3E (12.5 kHz) |
| Power supply requirement | 7.2 V DC nominal |
| Current drain Tx (USA) | 1.5 A (at 5 W), 0.9 A (at 2 W) |
| Current drain Rx | 0.45 A |
| Antenna impedance | 50 Ω |
| Operating temperature range | -20 °C to +60 °C |
| Dimensions | 56 × 92 × 34.1 mm (with BP-292UL) |
| Weight | 285 g (with BP-292UL, FA-SC58V and MBB-3) |
| Output power (USA) | 5/3/1 W marine, 2/1 W land mobile |
| Max. frequency deviation | ±5.0 kHz |
| Frequency stability | ±5.0 ppm |
| Spurious emissions | -70 dBc typical |
| Hum and noise | 40 dB |
| Audio harmonic distortion | 10% (at 60% deviation) |
| Sensitivity | 0.25 μV typical (at 12 dB SINAD) |
| Adjacent channel selectivity | 70 dB typical |
| Spurious response | 70 dB typical |
| Intermodulation | 70 dB typical |
| Audio output power (internal speaker) | 700 mW typical |
| Audio output power (external speaker) | 700 mW typical |
Overview
IC-M85UL — atex transceivers from Icom. Intrinsically safe marine handheld (UL913 Ed.8 / ANSI-TIA-4950-B).
