Icom

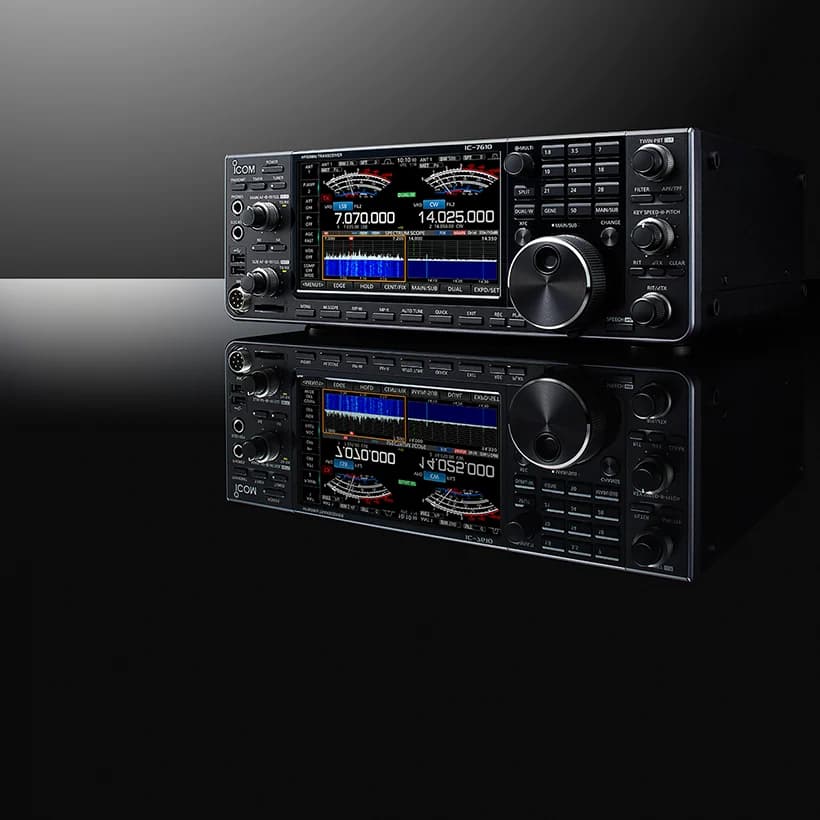

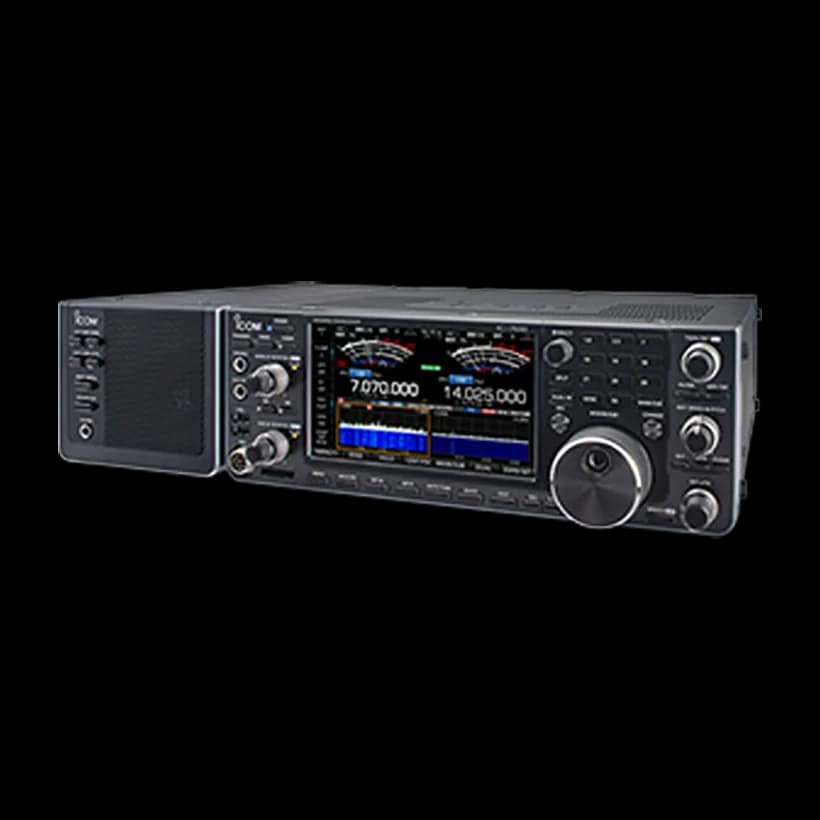

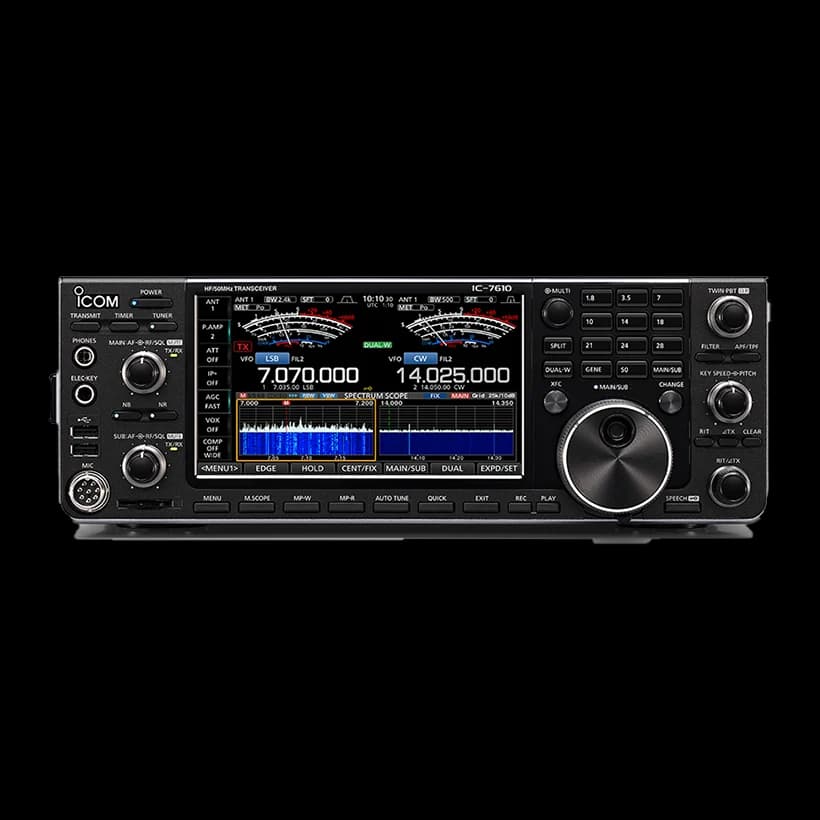

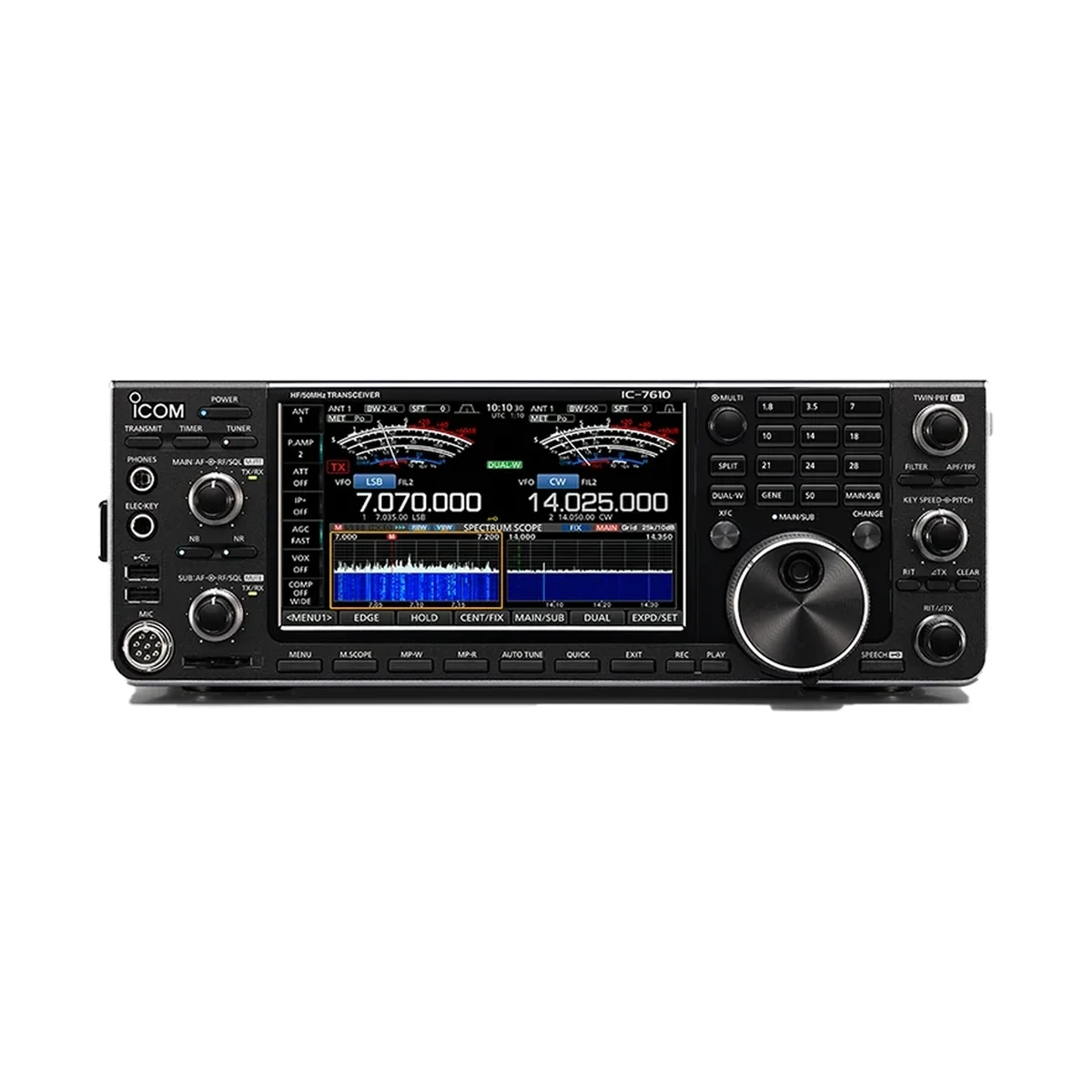

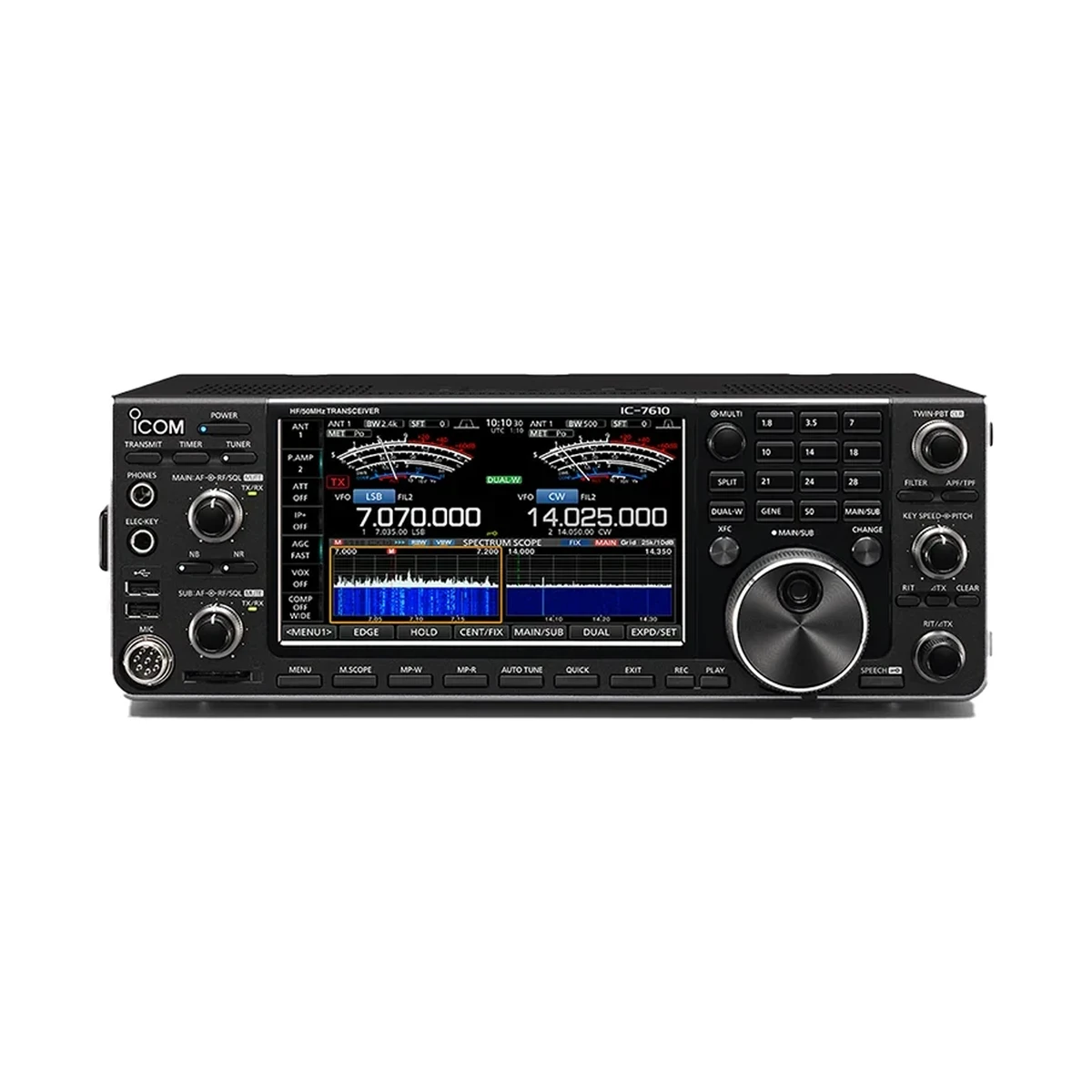

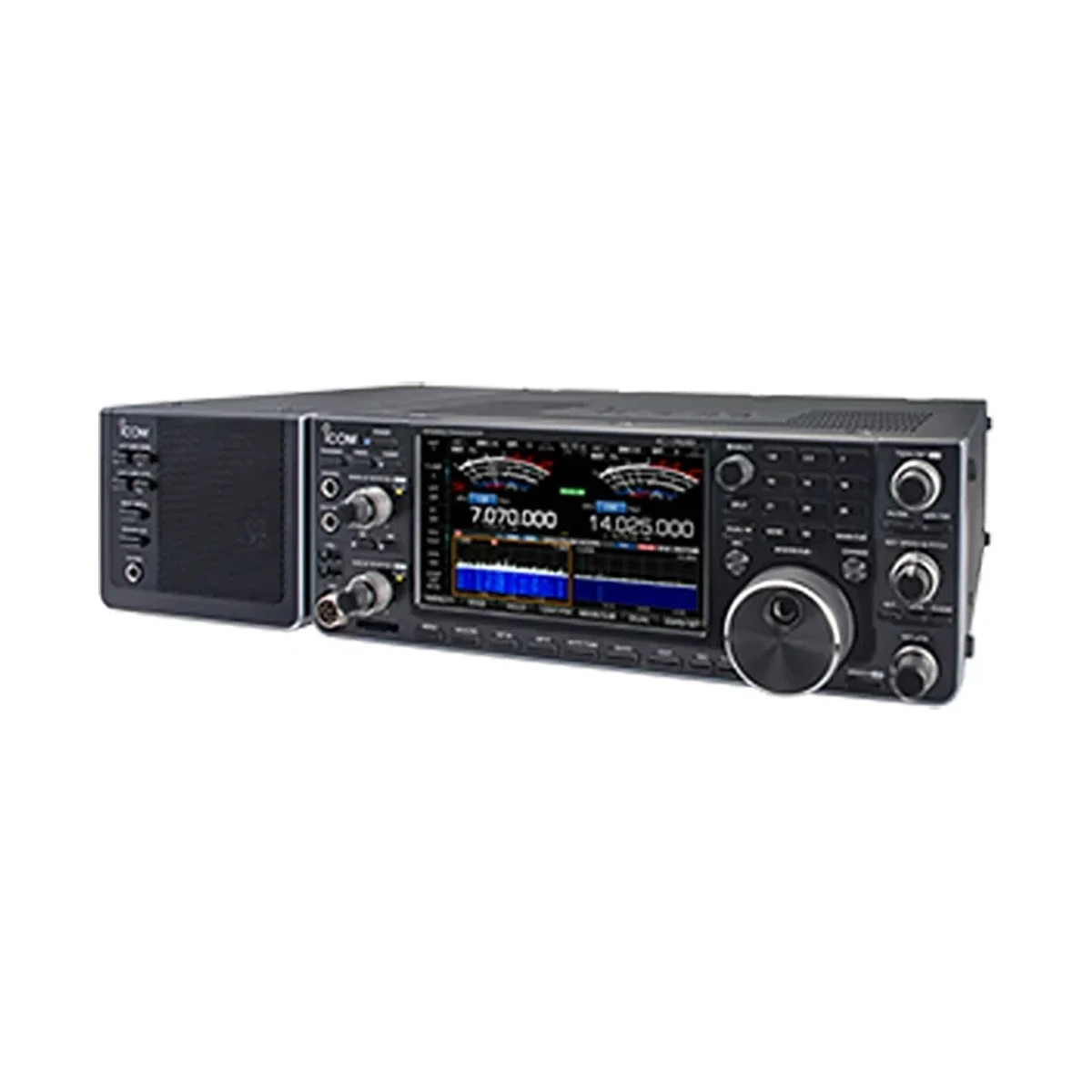

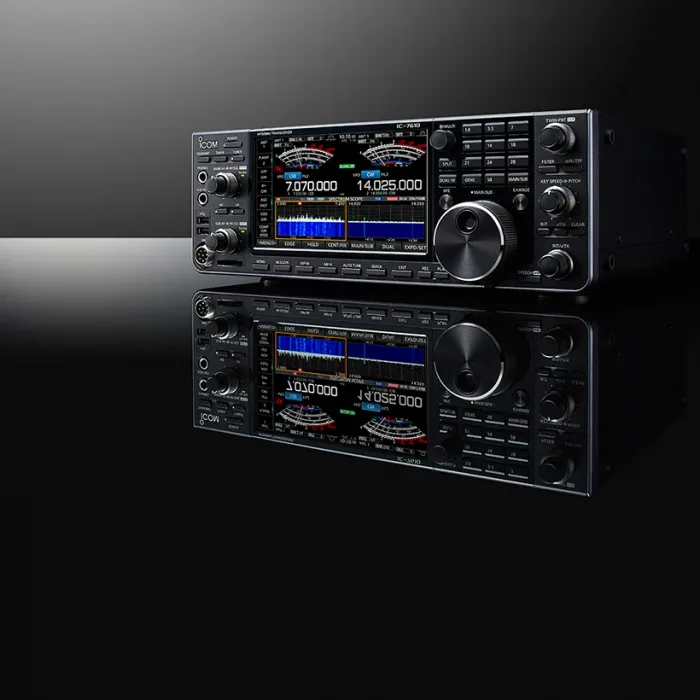

IC-7610
HF Transceiver Key Features Innovative RF Direct Sampling System Astonishing 110 dB* RMDR Customized VCXO Is Used for the Master Clock Independent Dual Receiver DIGI-SEL for Main and Sub Bands High Quality Speaker Sound Digital-Up-Conversion (DUC) for Clean…
- Brand
- Icom
- Category
- Amateur Radio
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Frequency coverage (USA version) RX | 0.030–60.00 MHz |
|---|---|
| Frequency coverage (USA version) TX | 1.800–1.999, 3.500–3.999, 5.255–5.405, 7.000–7.300, 10.100–10.150, 14.000–14.350, 18.068–18.168, 21.000–21.450, 24.890–24.990, 28.000–29.700, 50.000–54.000 MHz |
| Frequency coverage (EUR version) RX | 0.030–60.00 MHz |
| Frequency coverage (EUR version) TX | 0.1357–0.1378, 1.810–1.999, 3.500–3.800, 5.255–5.405, 7.000–7.200, 10.100–10.150, 14.000–14.350, 18.068–18.168, 21.000–21.450, 24.890–24.990, 28.000–29.700, 50.000–52.000 MHz |
| Mode | USB, LSB, CW, RTTY, PSK31/63, AM, FM |
| Number of channels | 101 (99 regular, 2 scan edges) |

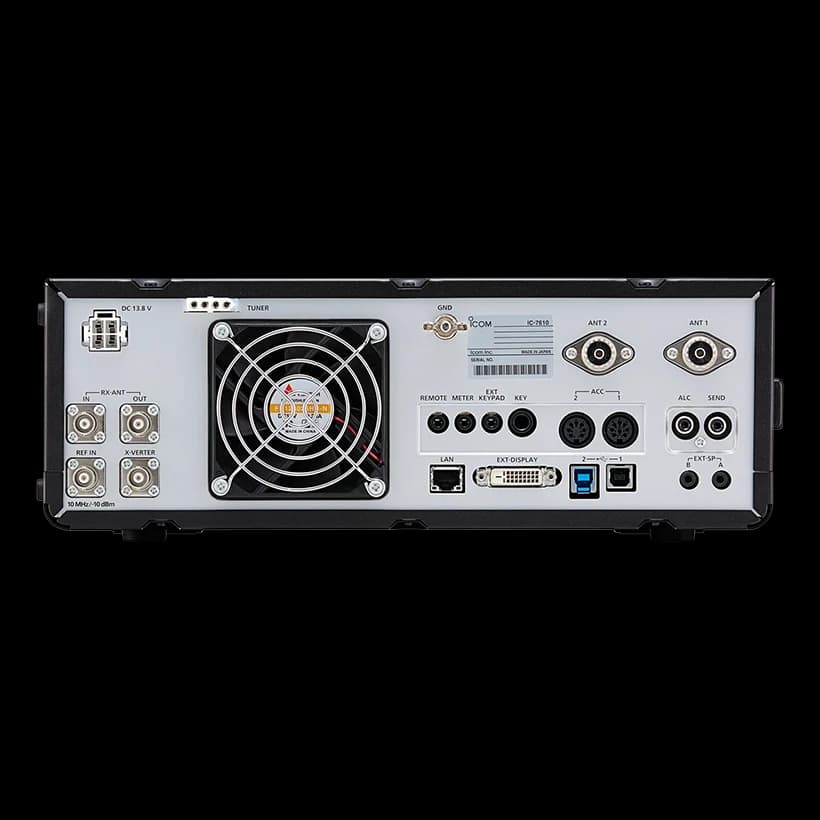

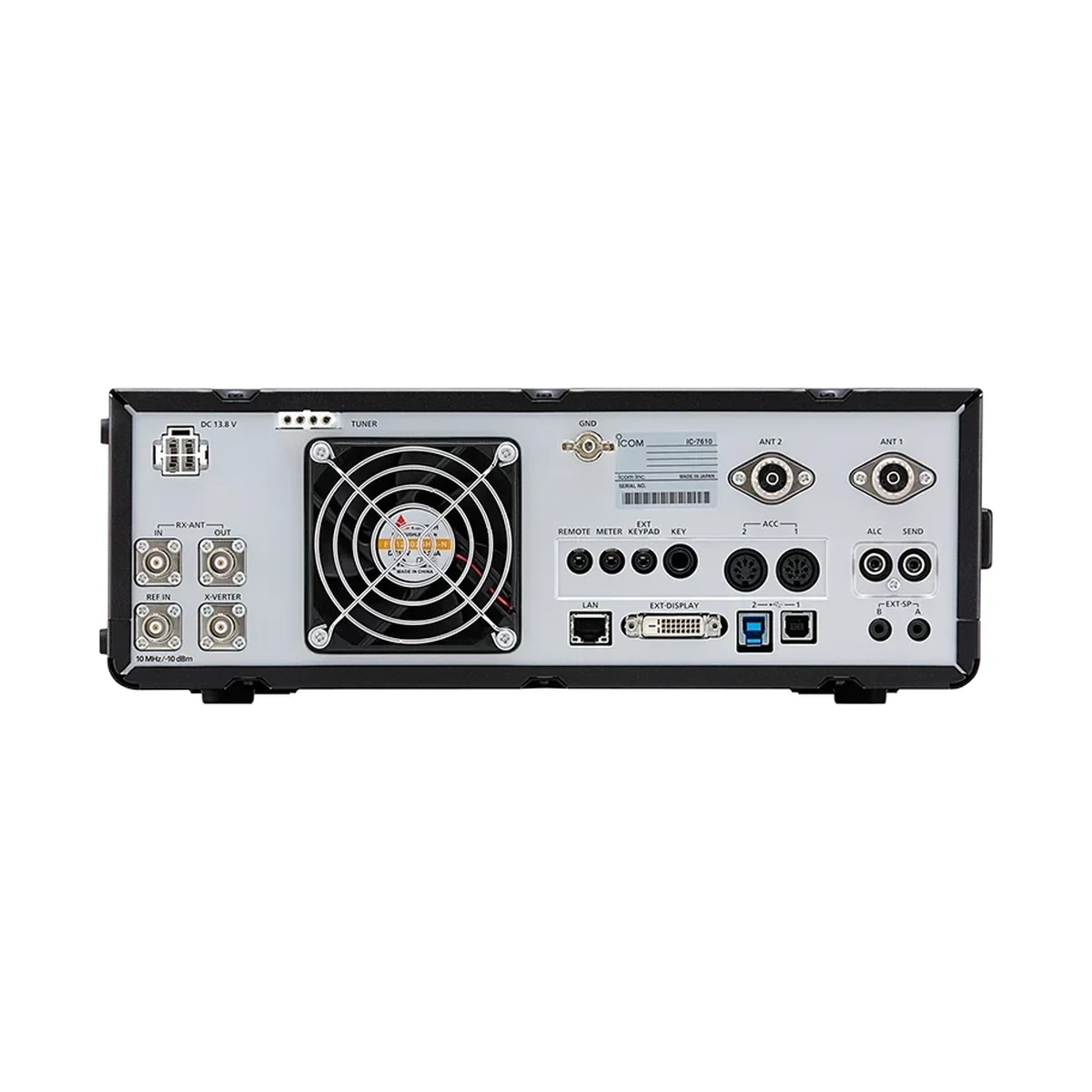

| Antenna connectors | SO-239 × 2 (50Ω unbalanced), BNC × 2 (RX antenna In/Out) |
| Power supply requirement | 13.8V DC ±15% |
| Power consumption TX | 23 A (at 100 W output power) |
| Power consumption RX | 3.0 A (Standby), 3.5 A (Maximum audio) |
| Operating temperature range | 0°C to +50°C |
| Frequency stability | Less than ±0.5ppm |
| Frequency resolution | 1 Hz (fine) |
| Dimensions | 340×118×277 mm |
| Weight | 8.8 kg |
| Output power (SSB/CW/FM/RTTY/PSK) | 1–100 W |
| Output power (AM) | 1–25 W |
| Modulation system SSB | Digital P.S.N. modulation |
| Modulation system AM | Digital Low power modulation |
| Modulation system FM | Digital Reactance modulation |
| Spurious emission (HF bands) | Less than -50 dB |
| Spurious emission (50 MHz bands) | Less than -63 dB |
| Carrier suppression | More than 50 dB |
| Unwanted sideband | More than 50 dB |
| Microphone impedance | 600Ω |
| Receiver system | Direct Sampling Superheterodyne |
| Intermediate frequency | 12 kHz |
| Sensitivity 0.5–1.799MHz AM (at 10dB S/N) | 6.3μV typ. |
| Sensitivity 1.8–29.999MHz SSB/CW (at 10dB S/N) | 0.16μV typ. |
| Sensitivity 1.8–29.999MHz AM (at 10dB S/N) | 2.0μV typ. |
| Sensitivity 28.0–29.7MHz FM (at 12dB SINAD) | 0.5μV typ. |
| Sensitivity 50–54MHz SSB/CW (at 10dB S/N) | 0.13μV typ. |
| Sensitivity 50–54MHz AM (at 10dB S/N) | 1.0μV typ. |
| Sensitivity 50–54MHz FM (at 12dB SINAD) | 0.32μV typ. |
| Selectivity SSB (BW: 2.4kHz, sharp) | More than 2.4 kHz/–6 dB; Less than 3.6 kHz/–60 dB |
| Selectivity CW (BW: 500Hz, sharp) | More than 500 Hz/–6 dB; Less than 700 Hz/–60 dB |
| Selectivity RTTY (BW: 500Hz, sharp) | More than 500 Hz/–6 dB; Less than 700 Hz/–60 dB |
| Selectivity AM (BW: 6kHz) | More than 6.0 kHz/–6 dB; Less than 15 kHz/–60 dB |
| Selectivity FM (BW: 15kHz) | More than 12.0 kHz/–6 dB; Less than 20 kHz/–60 dB |
| Spurious and image rejection (HF bands) | More than 70dB |
| Spurious and image rejection (50 MHz band) | More than 70 dB |
| Audio output power (at 13.8V DC) | More than 2.0 W (at 10% distortion with an 8Ω load, 1 kHz) |
| Tuner frequency range | 1.9–50 MHz bands |
| Tuner matching impedance range | 16.7Ω –150Ω unbalanced |
| Tuner tuning accuracy | Less than 1:1.5 VSWR |
| Tuner tuning time | 2–3 seconds (average) |
Overview
About this product
RF Direct Sampling Takes You to the Next Level
with Advanced RMDR and True Dual Receive
Whether it is poor band conditions, or battling to pick out a call in a large pile-up, faint signals have always been a challenge for DXers and Contesters around the world. The difference between putting the QSO in the log or having to try another time is the capability of your receiver. One key factor is the RMDR capabilities, the ability to pick out a faint signal in the presence of stronger, adjacent signals. The IC-7610 introduces dual RF direct sampling receivers, achieving 110dB RMDR, rivaling that of top-of-the-line transceivers.
Questions
Frequently asked questions
What frequency range does the Icom IC-7610 cover?
The IC-7610 receives from 0.030 to 60.00 MHz and transmits on the amateur HF bands plus 50-54 MHz (USA version) or 50-52 MHz (EUR version).
What is the maximum output power of the IC-7610?
The IC-7610 delivers 1 to 100 W on SSB, CW, FM, RTTY and PSK, and 1 to 25 W on AM.
How much does the IC-7610 weigh?
The IC-7610 weighs 8.8 kg and measures 340 x 118 x 277 mm.
Does the IC-7610 have dual receivers?
The IC-7610 has two SO-239 antenna connectors (50 Ω unbalanced) plus two BNC RX antenna in/out connectors for independent receive antennas.
