Icom

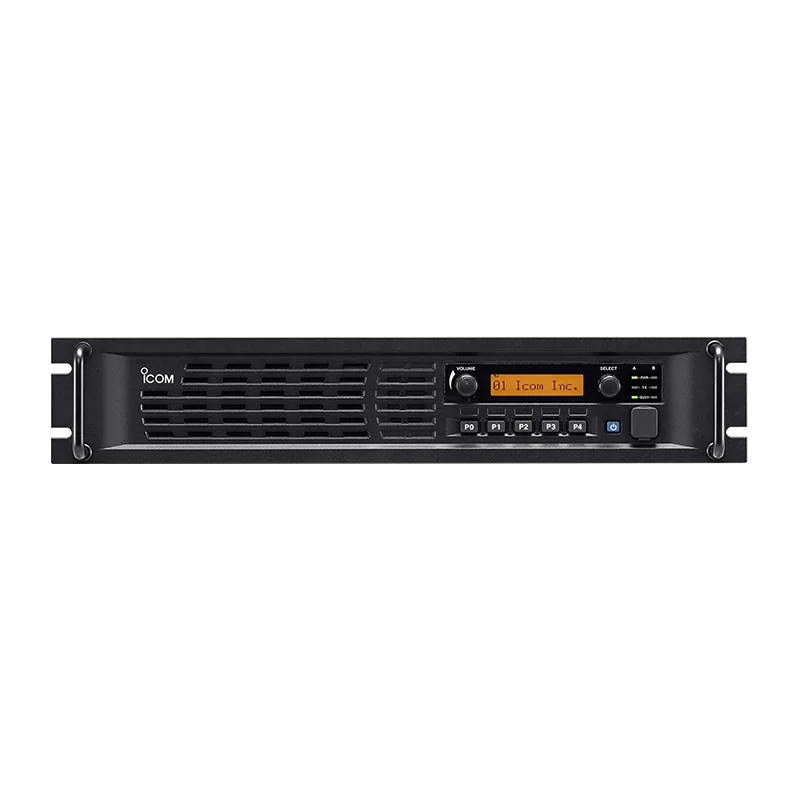

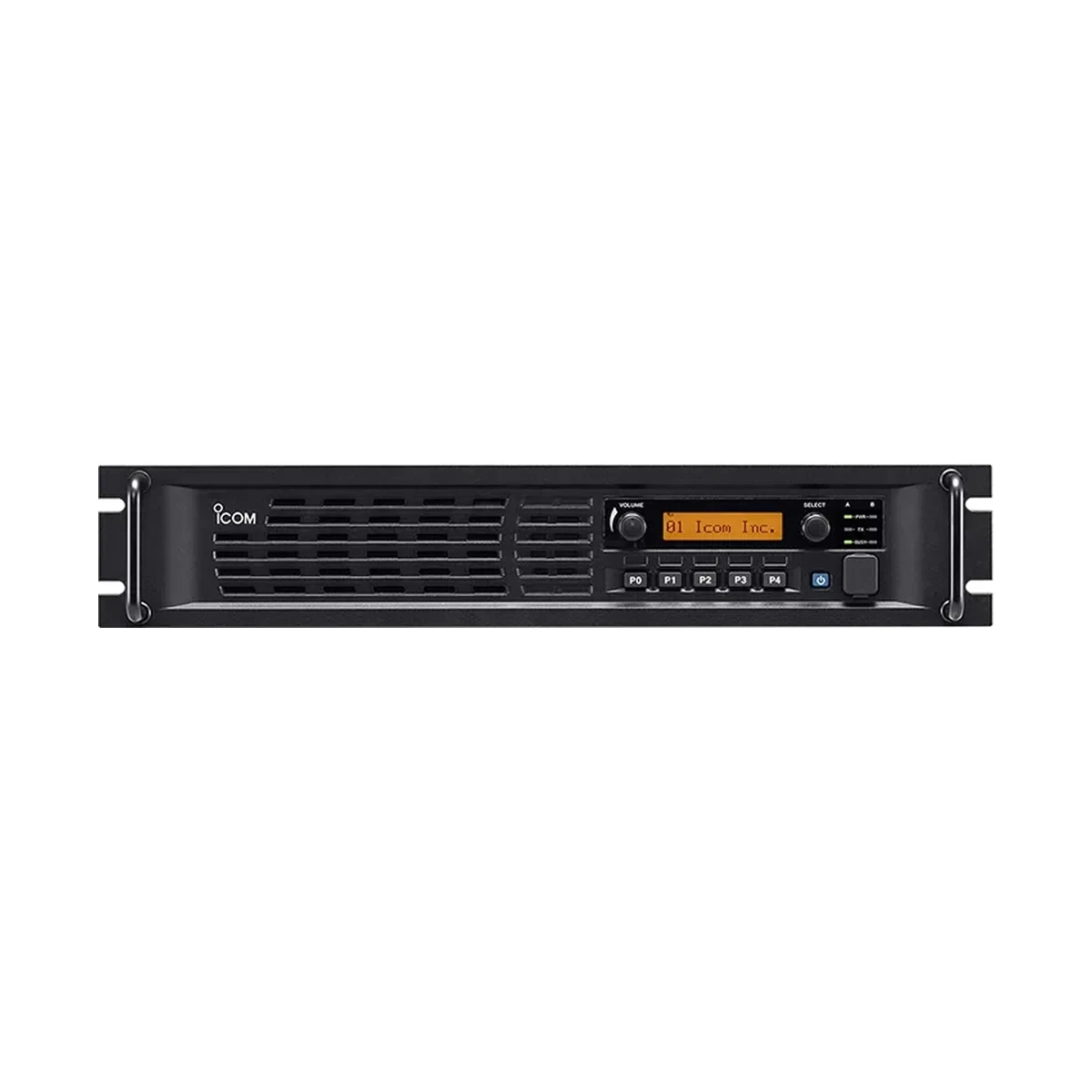

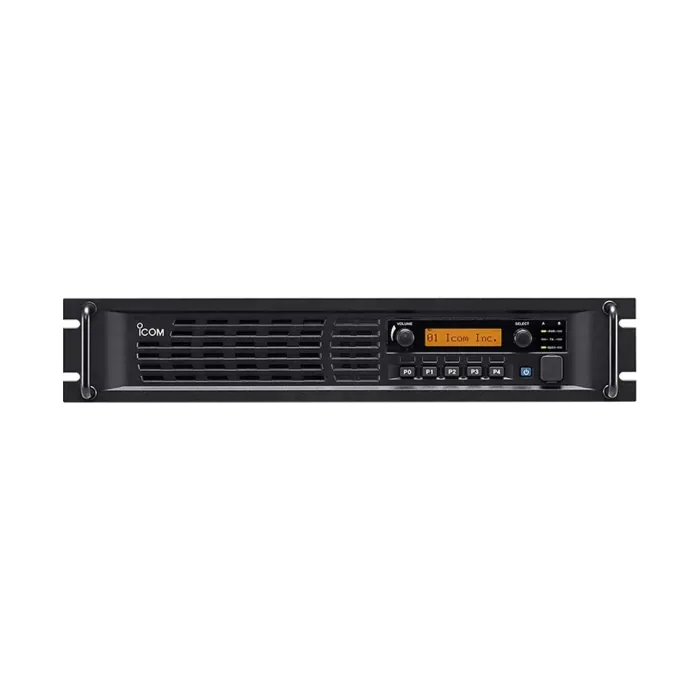

A VHF repeater covering 136-174 MHz with 32 channels, selectable 50/25/5 W output, and GNSS-correctable frequency stability, built for -30°C to +60°C outdoor operation.
Technical
| Frequency Coverage (IC-FR5300) | 136-174 MHz (USA, EXP, EUR, CAN, AUS) |
|---|---|
| Number of Channels | 32 channels / 1 zone |
| Channel Spacing | 6.25/12.5/25 or 7.5/15/30 kHz |
| Type of Emission | 16K0F3E (25 kHz), 14K0F3E (20 kHz, EUR), 11K0F3E (12.5/15 kHz, USA), 8K50F3E (12.5 kHz), 4K00F1E/F1D (6.25/7.5 kHz) |
| Power Supply Requirement (USA, CAN, EXP) | 13.6 V DC |
| Power Supply Requirement (EUR, AUS) | 13.2 V DC |
| Current Drain - Tx High | 15.0 A max (50W); 8.0 A max (25W) at 13.6V DC |
| Current Drain - Standby | 500 mA (FAN OFF) |
| Current Drain - Max Audio | 1900 mA |
| Dimensions (Main Unit) | 483 × 88 × 260 mm (19.0 × 3.5 × 10.2 in) |
| Weight (Main Unit) | 5.78 kg (12.7 lb) |
| Operating Temperature Range (USA/CAN/EXP) | –30℃ to +60℃ (–22 °F to +140 °F) |
| RF Output Power (IC-FR5300) | 50 W, 25 W, 5 W (USA, EXP, CAN, AUS); 25 W, 10 W, 5.8 W (EUR, EXP) |
| Frequency Stability | ±1.0 ppm or less; ±0.1 ppm or less (corrected using GNSS) |
| Audio Harmonic Distortion (IC-FR5300) | 0.9% typ. (TIA-603); 1.1% typ. (EN 300 086) at 1kHz 40% deviation |
| FM Hum and Noise (IC-FR5300) | 83 dB typ. (W); 77 dB typ. (N) |
| Analog Sensitivity 12 dB SINAD (IC-FR5300) | –119 dBm (0.25 μV) typ. (TIA-603) |
| Digital Sensitivity (IC-FR5300) | –4.0 dBμV (0.32 μV) emf typ. at 1% BER (EN301 166) |
| AF Output Power | 3.9 W typ. (at 5% distortion with a 4Ω load) |
Overview
The IC-FR5300 is a VHF repeater covering 136-174 MHz with 32 channels across a single zone, supporting channel spacing down to 6.25 kHz for narrowband analog and digital operation. It delivers selectable RF output of 50 W, 25 W, or 5 W depending on region, drawing up to 15 A on transmit at full power, and holds frequency stability of ±1.0 ppm or better, tightening to ±0.1 ppm when corrected by GNSS. Housed in a rack-mountable chassis measuring 483 x 88 x 260 mm and weighing 5.78 kg, it is rated for continuous outdoor operation from -30°C to +60°C.
Questions
The IC-FR5300 delivers up to 50 W, 25 W or 5 W RF output in the USA/EXP/CAN/AUS versions, and 25 W, 10 W or 5.8 W in the EUR/EXP version.
The IC-FR5300 supports 32 channels across 1 zone, with selectable channel spacing of 6.25/12.5/25 kHz or 7.5/15/30 kHz.
The IC-FR5300 (USA/CAN/EXP versions) is rated to operate from -30 degrees C to +60 degrees C (-22 degrees F to +140 degrees F).
The IC-FR5300 main unit weighs 5.78 kg (12.7 lb) and measures 483 x 88 x 260 mm (19.0 x 3.5 x 10.2 in).
