High-power repeaters covering VHF 146-174 MHz and UHF 440-475 MHz with up to 500 channels and 110 W / 100 W output.
Technical
| Frequency coverage (VHF) | 146–174MHz |
|---|---|
| Frequency coverage (UHF) | 440–475MHz |
| Number of channels | Max. 500 channels |
| Channel spacing | 12.5/20/25/30kHz |
| Type of emission | 16K0F3E, 11K0F3E, 8K10F1E/F1D |
| Power supply requirement | 13.6V DC nominal |
| Tx current drain (High) | 16A (VHF) / 18A (UHF) |
| Rx current drain | 3A max. audio |
| Standby current | 280mA |
| Dimensions | 482×88×413 mm (18.98×3.46×16.26 in) |
| Weight | 11.0kg (24.3lb) |
| RF output power (High, 100% duty cycle) | 110W (VHF) / 100W (UHF) |
| RF output power (Low) | 50W (both models) |
| Spurious emissions | 80dB min. (VHF) / 76dB min. (UHF) |
| Max. frequency deviation | ±5.0kHz/±2.5kHz (W/N) |
| Audio harmonic distortion | 3% typ. (60% deviation) |
| Sensitivity (12dB SINAD/5% BER) | 0.30μV typ. |
| Adjacent channel selectivity | 82/76dB min. (W/N) / 55dB min. (Digital) |
| AF output power (5% distortion) | 7.5W typ. with 8Ω load |
Overview

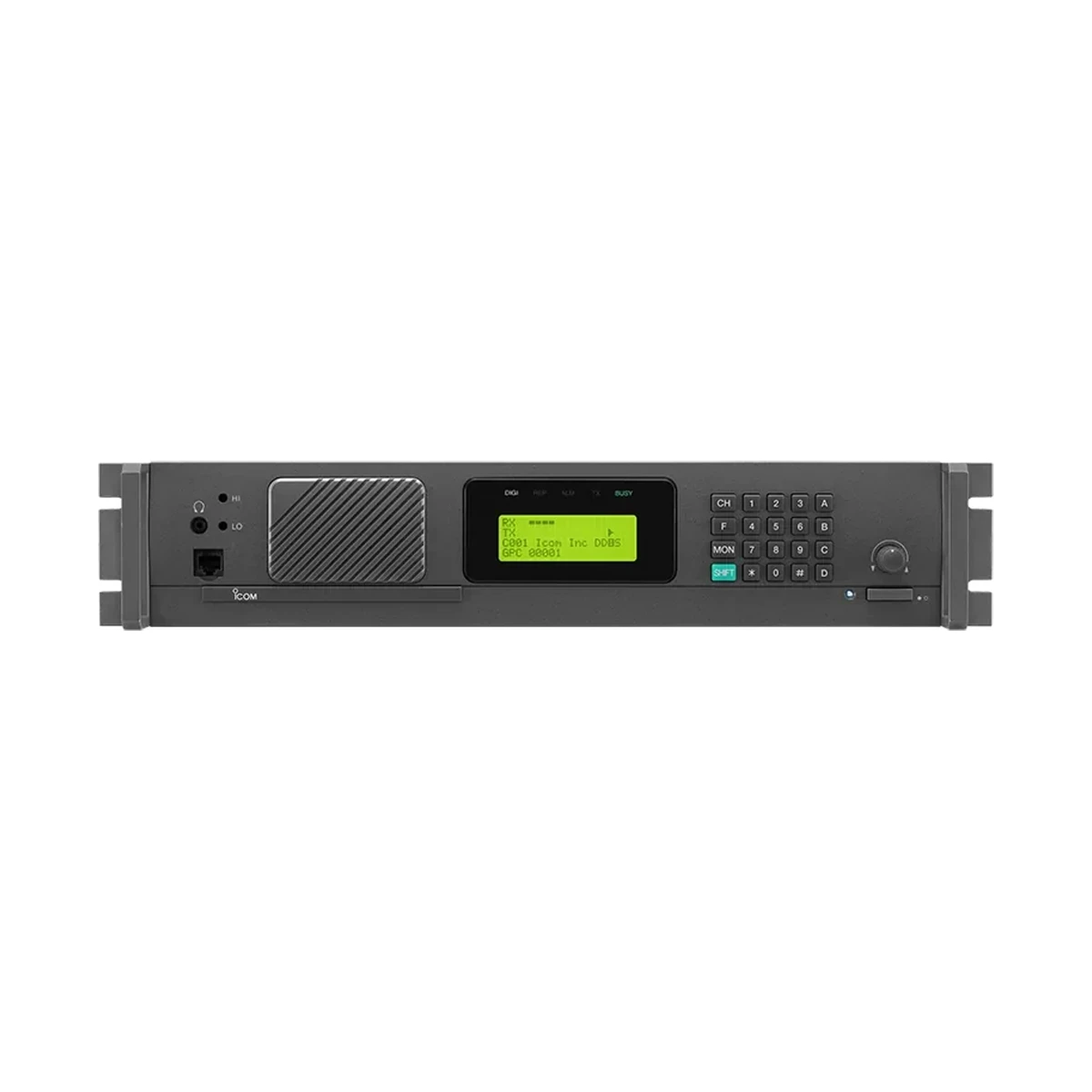

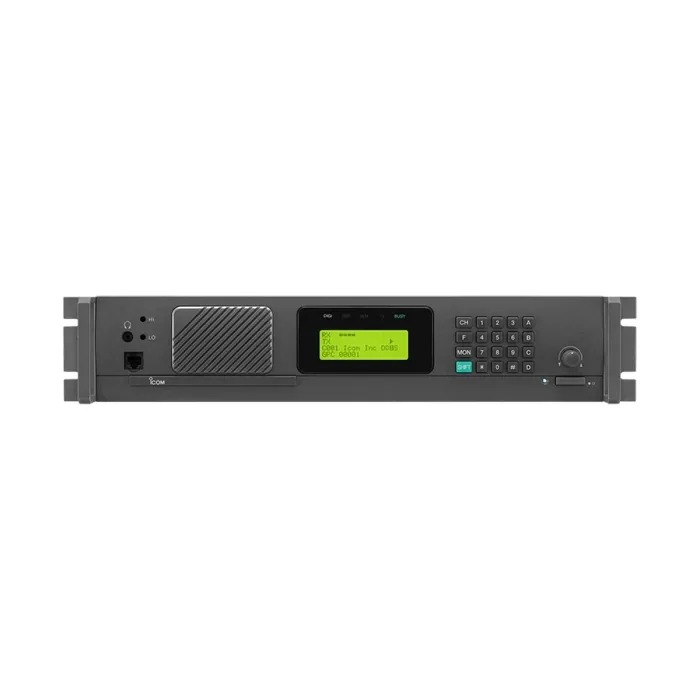

The IC-FR9010 and IC-FR9020 are high-power repeaters covering VHF 146-174 MHz and UHF 440-475 MHz respectively, supporting up to 500 channels with 12.5/20/25/30 kHz channel spacing. High-power output reaches 110 W on the VHF FR9010 and 100 W on the UHF FR9020 at a 100% duty cycle, with a low-power setting of 50 W on both, drawing up to 18 A on transmit from a 13.6 V DC supply. Housed in a rack-mount chassis measuring 482 x 88 x 413 mm and weighing 11 kg, the repeaters offer 0.30 μV typical sensitivity and up to 7.5 W of audio output into an 8Ω load.
Questions
At 100% duty cycle, the IC-FR9010 (VHF) delivers 110 W high power and the IC-FR9020 (UHF) delivers 100 W high power, with 50 W available as a low-power setting on both models.
The IC-FR9010 covers 146-174 MHz (VHF) and the IC-FR9020 covers 440-475 MHz (UHF).
Both models support a maximum of 500 channels, with selectable 12.5/20/25/30 kHz channel spacing.
Both repeaters weigh 11.0 kg (24.3 lb) and measure 482 x 88 x 413 mm (18.98 x 3.46 x 16.26 in).
