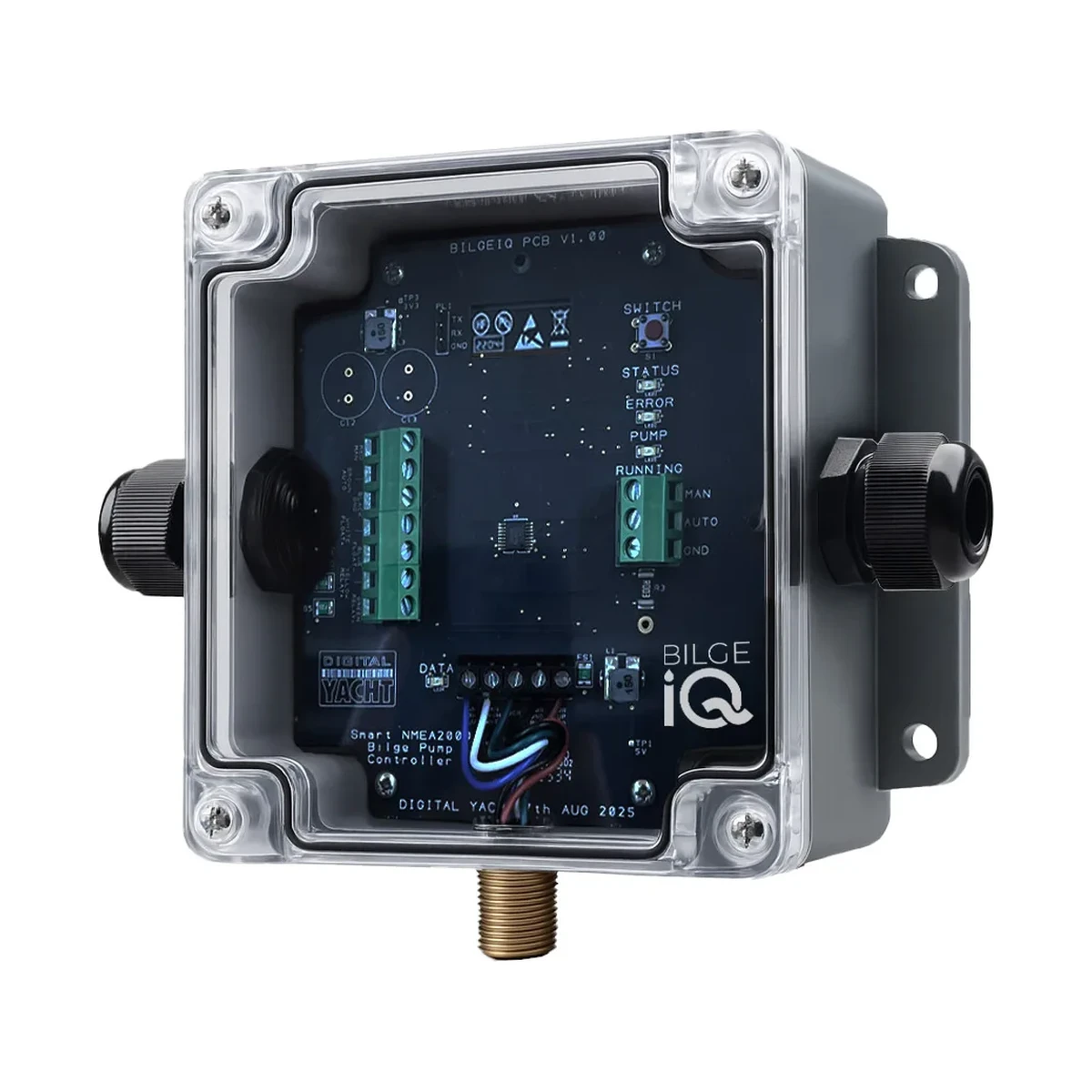

Bilge IQ – Bilge Pump Monitor & Controller
The Digital Yacht Bilge IQ is a smart WiFi and NMEA 2000 bilge pump monitor that tracks pump activity, current draw, and fault conditions with remote access.
- Brand
- Digital Yacht
- Category
- Marine Network & Interface
- Manufacturer
- Digital Yacht website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Function | Smart Wi-Fi and NMEA 2000 bilge pump monitor - real-time status, alerts, pump history and remote access |
|---|---|
| Monitoring | Pump activity, electrical current draw, run duration and fault conditions |
| Compatibility | Connects any bilge pump, old or new, with or without a float switch |
| Interface | Built-in web interface for phone, tablet or PC control and monitoring; displays on NMEA 2000 MFD |
| Included accessories | 1m 7-core power data cable included; built-in WiFi antenna |
| Dimensions | 160 x 120 x 65 mm |
| Weight | 550 g |
Overview
About this product
Bilge IQ is a smart bilge pump monitor and controller from Digital Yacht that combines WiFi and NMEA 2000 connectivity to give real-time status, alerts, pump history and remote access from any bilge pump, old or new, with or without a float switch. It tracks pump activity, electrical current draw, run duration and fault conditions, presenting the data through a built-in web interface for phone, tablet or PC as well as on any connected NMEA 2000 multifunction display. The unit ships with a 1m 7-core power data cable and a built-in WiFi antenna, housed in a 160 x 120 x 65 mm, 550g enclosure.
Questions
Frequently asked questions
Will Bilge IQ work with my existing bilge pump?
Yes, it connects to any bilge pump, old or new, with or without a float switch.
What does Bilge IQ actually monitor?
It monitors pump activity, electrical current draw, run duration and fault conditions, giving real-time status, alerts and pump history.
How do I view Bilge IQ's alerts?
It has a built-in web interface for phone, tablet or PC control and monitoring, and can also display on an NMEA 2000 MFD.
What's included with Bilge IQ for installation?
It includes a 1m 7-core power data cable and a built-in WiFi antenna.
