Digital Yacht

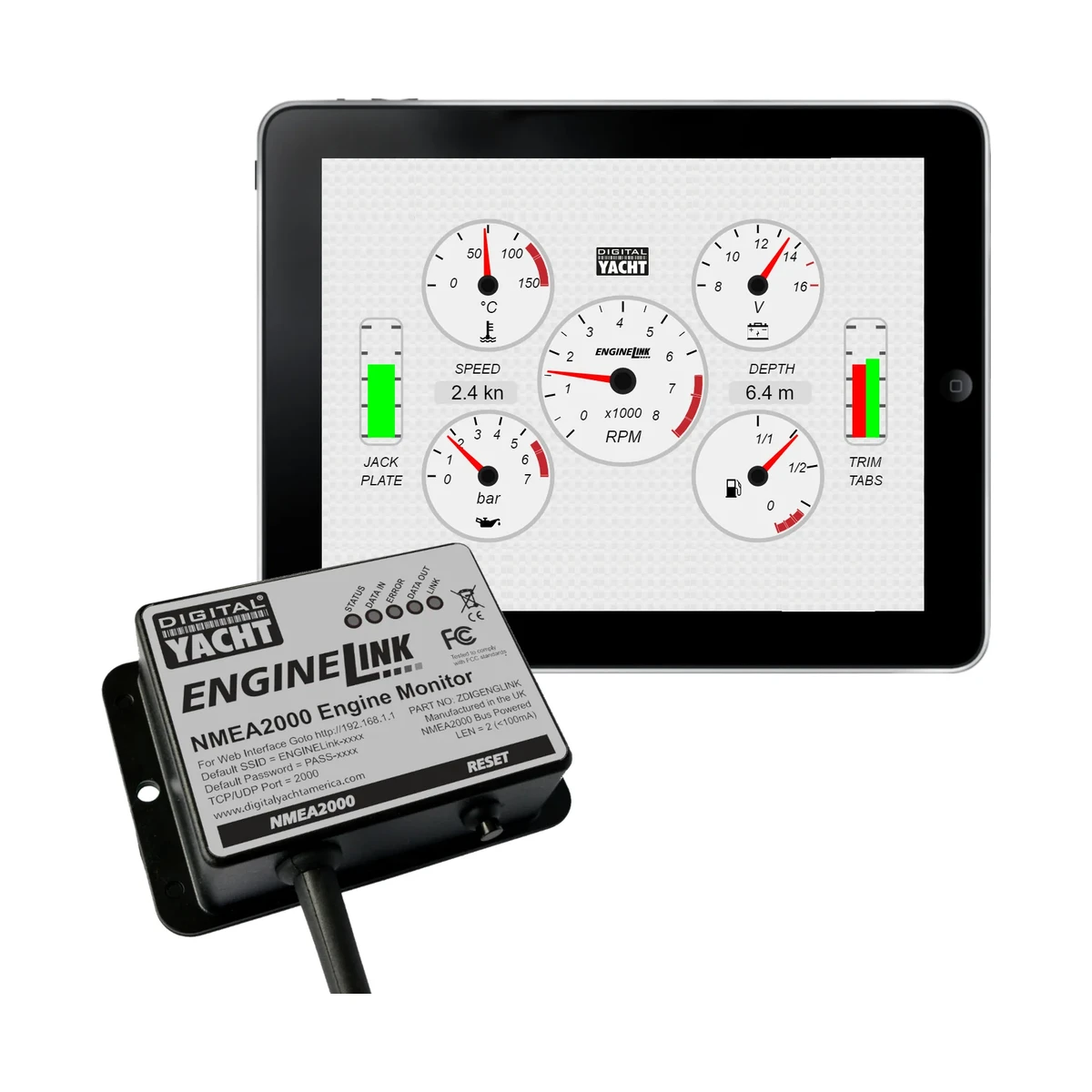

The Digital Yacht ENGINELink is a wireless gateway that displays NMEA 2000 engine data such as RPM, voltage, and temperature through a built-in web interface.
Technical
| Function | Wireless gateway for NMEA 2000 networks with integrated engine instrument displays |
|---|---|
| Compatibility | Engines/outboards with NMEA 2000 capability, single or dual engine support |
| Connectivity | Secure, password protected wifi network or connect to existing boat wifi network |
| Interface | Built-in web interface, works with any modern web browser |
| Displayed parameters | RPM, battery voltage, temperature, pressure, fuel, and more; dedicated electric engine display page |
| Additional support | Displays data from NMEA 2000 compatible Trim Tabs and Jack Plates; streams AIS and GPS data to apps such as Navionics |
| Weight | 180 g |
| Dimensions | 105 x 72 x 32 mm |
Overview
ENGINELink is a wireless gateway from Digital Yacht that connects to NMEA 2000-capable engines and outboards, supporting either single or dual engine setups, and presents live engine data through a built-in web interface accessible from any modern browser. It displays RPM, battery voltage, temperature, pressure and fuel readings, with a dedicated page for electric engines, and can also show data from NMEA 2000-compatible trim tabs and jack plates while streaming AIS and GPS data to apps such as Navionics. It connects over a secure password-protected WiFi network or joins an existing boat network, and is housed in a compact 105 x 72 x 32 mm, 180g enclosure.
Questions
It displays RPM, battery voltage, temperature, pressure, fuel and more, and includes a dedicated electric engine display page.
Yes, it supports single or dual engine setups for engines and outboards with NMEA 2000 capability.
It has a built-in web interface that works with any modern web browser, accessible over its own secure password-protected WiFi network or your boat's existing WiFi.
Yes, it also displays data from NMEA 2000 compatible trim tabs and jack plates, and can stream AIS and GPS data to apps such as Navionics.
