The Digital Yacht BM100 is a complete NMEA 2000 battery monitoring package built around a Victron SmartShunt and VE.Direct interface.
Technical
| Package | Complete package with SmartShunt and veKonvert NMEA 2000 interface |
|---|---|
| Shunt capacity | 500A SmartShunt included for main battery system |
| Secondary battery monitoring | Monitors voltage of a separate (e.g. starter) battery |
| Connectivity | Universal NMEA 2000 gateway using VE.Direct interface |
| Display compatibility | Works with Raymarine, Garmin, Navico, Furuno multi-function displays |
| Data parameters | Battery voltage, charge/discharge current, state of charge, time to depletion |
| Installation | Plug 'n play connectivity, self-powered from the NMEA 2000 bus |
| Mobile interface | Bluetooth connectivity for phone/tablet access |
| Expandability | Supports multiple SmartShunts for multi battery systems |
| Weight | 400 g |
Overview

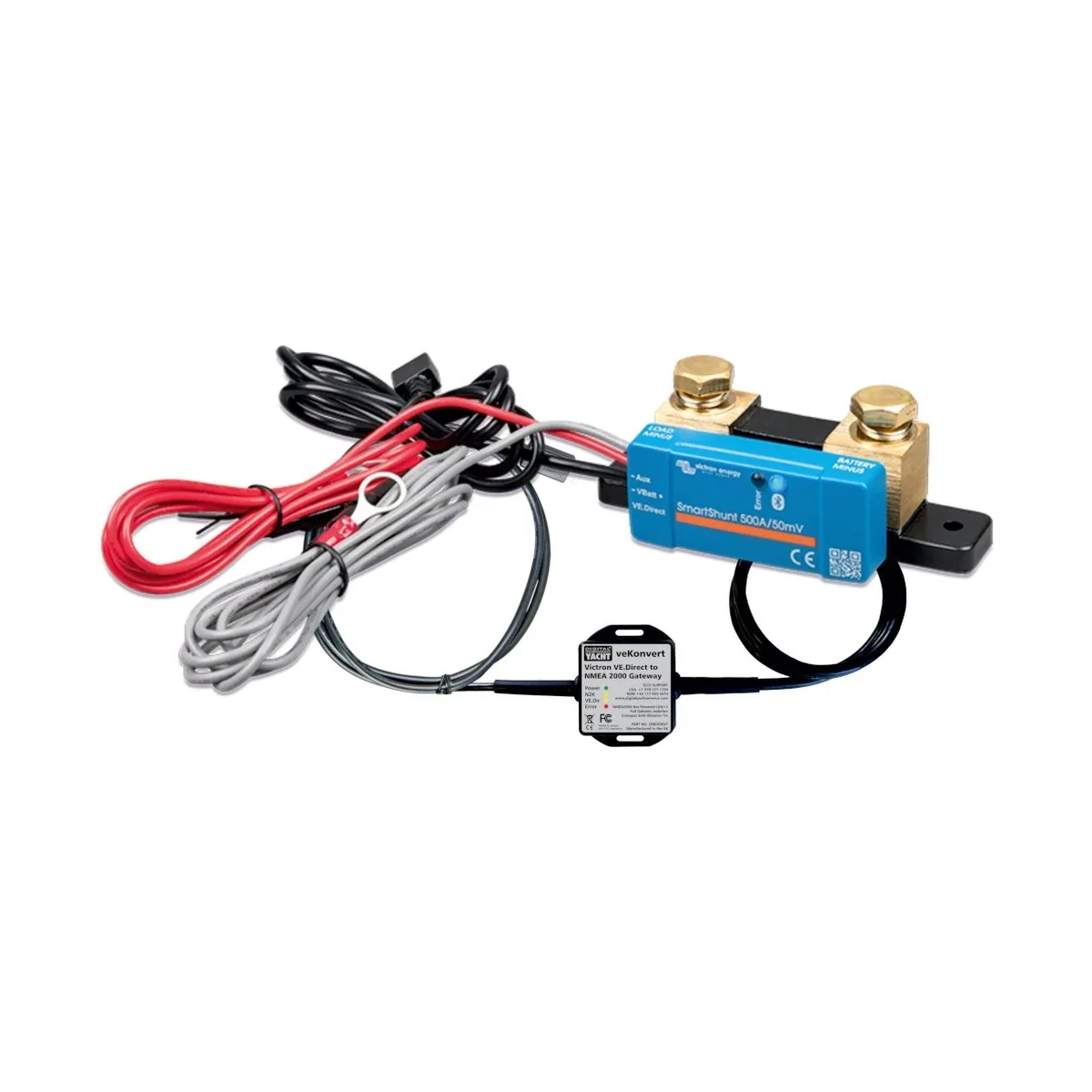

BM100 is a complete battery monitoring package from Digital Yacht, combining a 500A SmartShunt with a veKonvert NMEA 2000 interface using the VE.Direct protocol to report battery voltage, charge and discharge current, state of charge and time to depletion on any NMEA 2000-compatible multifunction display, including Raymarine, Garmin, Navico and Furuno. It can also monitor the voltage of a separate battery, such as a starter battery, and supports multiple SmartShunts for multi-battery systems. Installation is plug-and-play, with the unit self-powered from the NMEA 2000 bus and Bluetooth connectivity available for direct phone or tablet access.
Questions
It's a complete package with a 500A SmartShunt for the main battery system and a veKonvert NMEA 2000 interface.
It works with Raymarine, Garmin, Navico and Furuno multi-function displays.
Yes, it can monitor a separate battery (such as a starter battery) in addition to the main system, and supports multiple SmartShunts for multi-battery setups.
Yes, the BM100 has Bluetooth connectivity for phone or tablet access to battery voltage, charge/discharge current, state of charge and time to depletion.
