Digital Yacht

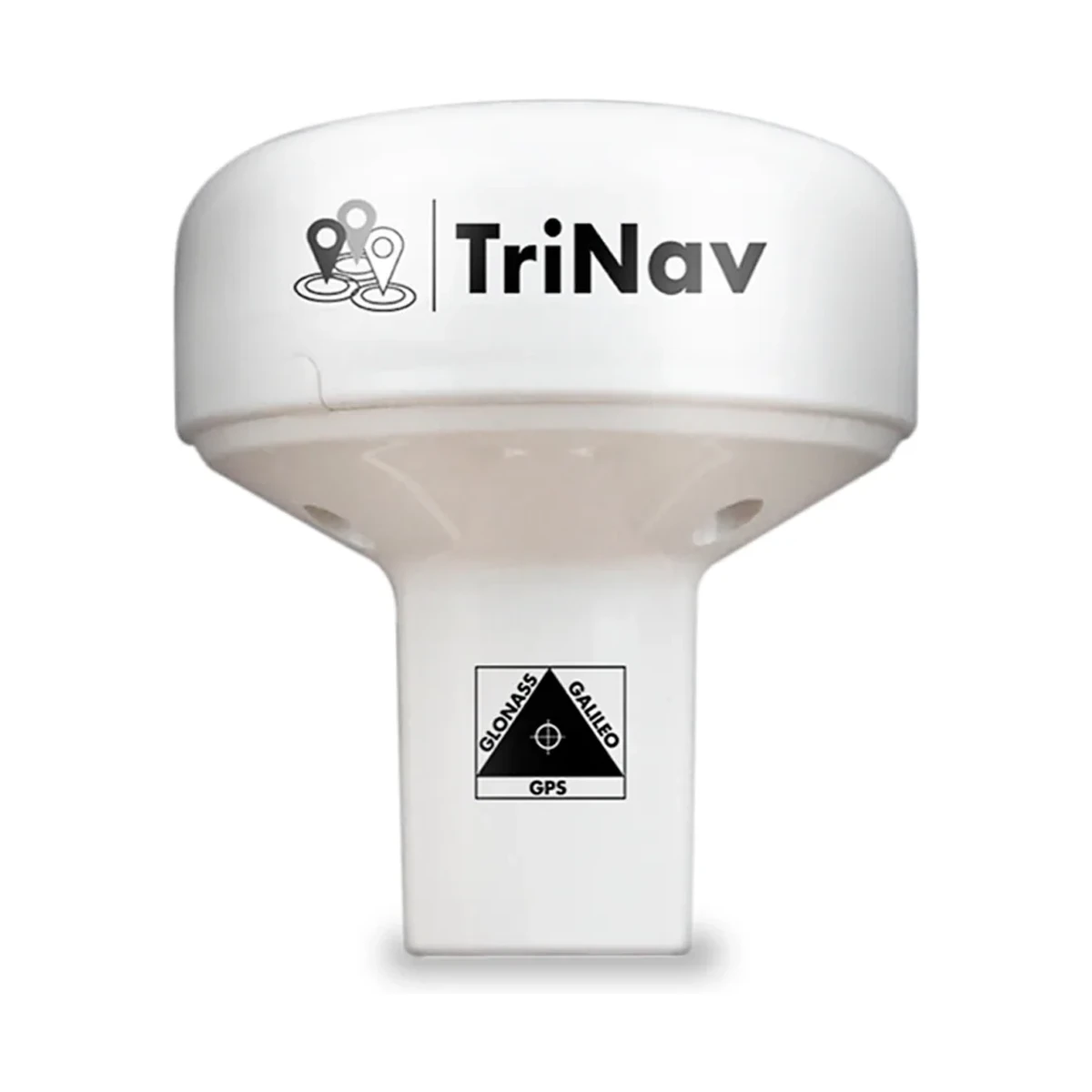

GPS160 NMEA 0183
The Digital Yacht GPS160 is a 72-channel multi-GNSS positioning receiver with sub-1m typical accuracy, available in NMEA 0183, NMEA 2000, wireless, and USB interface variants.
- Brand
- Digital Yacht
- Category
- Marine Network & Interface
- Manufacturer
- Digital Yacht website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| GNSS receiver | 72 channel GPS, Glonass, Beidou and Galileo positioning receiver |
|---|---|
| Accuracy | Sub 1m typically, using QuadNav technology combining all satellite data |
| Configuration | Configurable as dedicated GPS, Glonass, Beidou or Galileo only device |
| Interface variants | Seatalk1, NMEA 2000, wireless, USB |
| Baud rate | 4800, 38400 and 115200 baud, programmable |
| Update rate | Up to 18Hz, user selectable |
| Power consumption | Ultra low (<20mA) at 12V DC |
| Cable length | 10m included |
| MOB | MOB switch input generates synthetic AIS MOB NMEA output |
| ECDIS support | Datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST) |
| Installation | Puck installation or 1" x 14TPI threaded mount |
| Dimensions | 245 x 165 x 100 mm |
| Weight | 514 g |
Overview
About this product
GPS160 is a 72-channel multi-constellation positioning receiver from Digital Yacht, combining GPS, GLONASS, BeiDou and Galileo data through the brand's QuadNav technology to achieve sub-1m typical accuracy, or it can be configured as a dedicated single-constellation device. It is available in Seatalk1, NMEA 2000, wireless and USB interface variants, with a programmable baud rate and update rates up to 18Hz, and draws under 20mA at 12V DC. The unit includes a MOB switch input that generates a synthetic AIS MOB NMEA output, supports ECDIS datum sentence structures, and installs via a puck mount or a 1 inch x 14TPI threaded fitting.
Questions
Frequently asked questions
How accurate is the GPS160?
It typically achieves sub 1m accuracy using QuadNav technology, which combines data from GPS, Glonass, Beidou and Galileo satellites via its 72 channel receiver.
What update rate does the GPS160 support?
It supports update rates of up to 18Hz, user selectable.
What interface options does the GPS160 offer?
It's available in Seatalk1, NMEA 2000, wireless, or USB interface variants, with a programmable baud rate of 4800, 38400 or 115200.
Does the GPS160 support man overboard alerts?
Yes, its MOB switch input generates a synthetic AIS MOB NMEA output.
