iSeaSense – Wireless Speed Depth Temp Pack
The Digital Yacht iSeaSense Wireless Speed Depth Temp Pack is an NMEA 2000 sensor and WiFi gateway delivering speed, depth, and temperature data to navigation apps.
- Brand
- Digital Yacht
- Category
- Marine Network & Interface
- Manufacturer
- Digital Yacht website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Interface | NMEA 2000 interface and wireless gateway with integrated display server |
|---|---|
| Speed accuracy/range | 0.3 to 45 knot, 5Hz updates |
| Data update rate | Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second |
| Depth operating frequency | 235KHz |
| Max depth | 100m |
| Hull deadrise support | up to 22 degrees |
| Transducer cable | 6m NMEA 2000 cable |
| Thru hull size | Standard 2" |
| WiFi range | Integrated wifi antenna typically covers boats up to 20m |
| Connected devices | Supports TCP/IP and UDP connections for 3rd party apps on up to 7 connected devices |
Overview
About this product

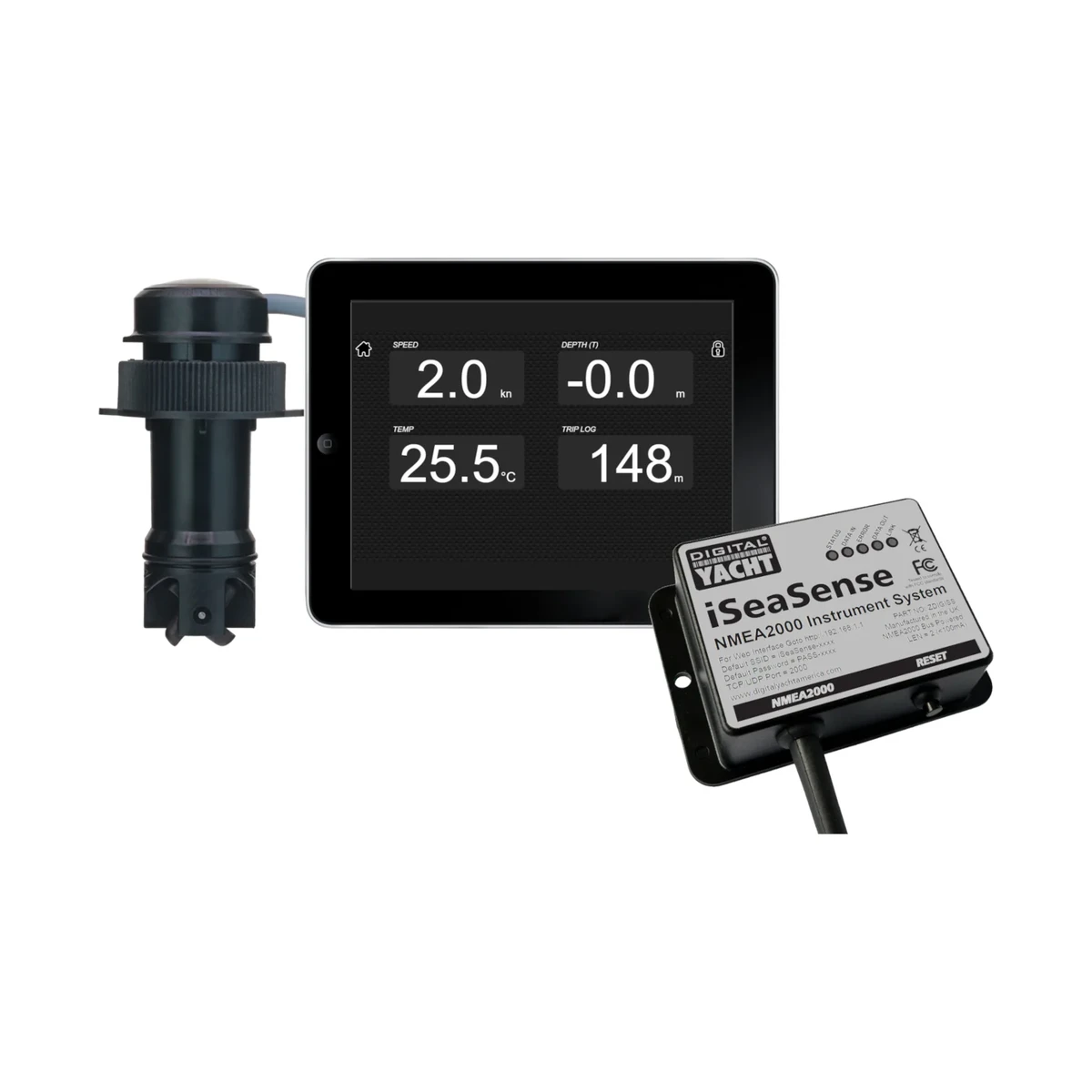

The iSeaSense Wireless Speed Depth Temp Pack pairs an NMEA 2000 through-hull sensor with a wireless gateway and integrated display server from Digital Yacht. It delivers speed readings from 0.3 to 45 knots at 5Hz, depth to 100m at a 235kHz operating frequency updated once per second, and supports hull deadrise angles up to 22 degrees via a 6m NMEA 2000 transducer cable through a standard 2 inch thru-hull fitting. Its integrated WiFi antenna typically covers boats up to 20m and can stream data over TCP/IP and UDP to as many as seven connected devices running third-party apps.
Questions
Frequently asked questions
What is the maximum depth range of the iSeaSense?
It measures depth down to 100m using a 235KHz operating frequency.
What speed range can the iSeaSense measure?
It measures boat speed from 0.3 to 45 knots, with 5Hz updates.
What thru-hull fitting does the iSeaSense transducer use?
It uses a standard 2 inch thru hull fitting and comes with a 6m NMEA 2000 cable.
How many devices can connect to the iSeaSense over WiFi?
It supports TCP/IP and UDP connections for third-party apps on up to 7 connected devices, with WiFi typically covering boats up to 20m.
