iSeaSense ISSPK2 - Wireless Speed/Depth/Temp Pack Plus Wind
The Digital Yacht iSeaSense ISSPK2 is a wireless NMEA 2000 sensor pack combining speed, depth, temperature, and wind data with WiFi output for navigation apps.
- Brand
- Digital Yacht
- Category
- Marine Network & Interface
- Manufacturer
- Digital Yacht website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Speed accuracy/range | fast, super accurate 5Hz speed updates from 0.3 to 45 knot |
|---|---|
| Data Update Rate | Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second |
| Depth operating frequency | 235KHz |
| Max depth | 100m |
| Hull deadrise support | up to 22 degrees |
| Transducer cable | 6m NMEA 2000 cable, self powered from iSeaSense NMEA 2000 backbone |
| Thru hull size/diameter | Standard 2" |
| Wind sensor power | 8-18V power with ultra low 25mA power consumption |
| Wind sensor cable | 20m ultra thin 4mm masthead cable |
| WiFi range | Integrated wifi antenna typically footprints boat up to 20m |
| Connected devices | Supports additional TCP/IP and UDP data connections for 3rd party apps on up to 7 connected devices |
Overview
About this product

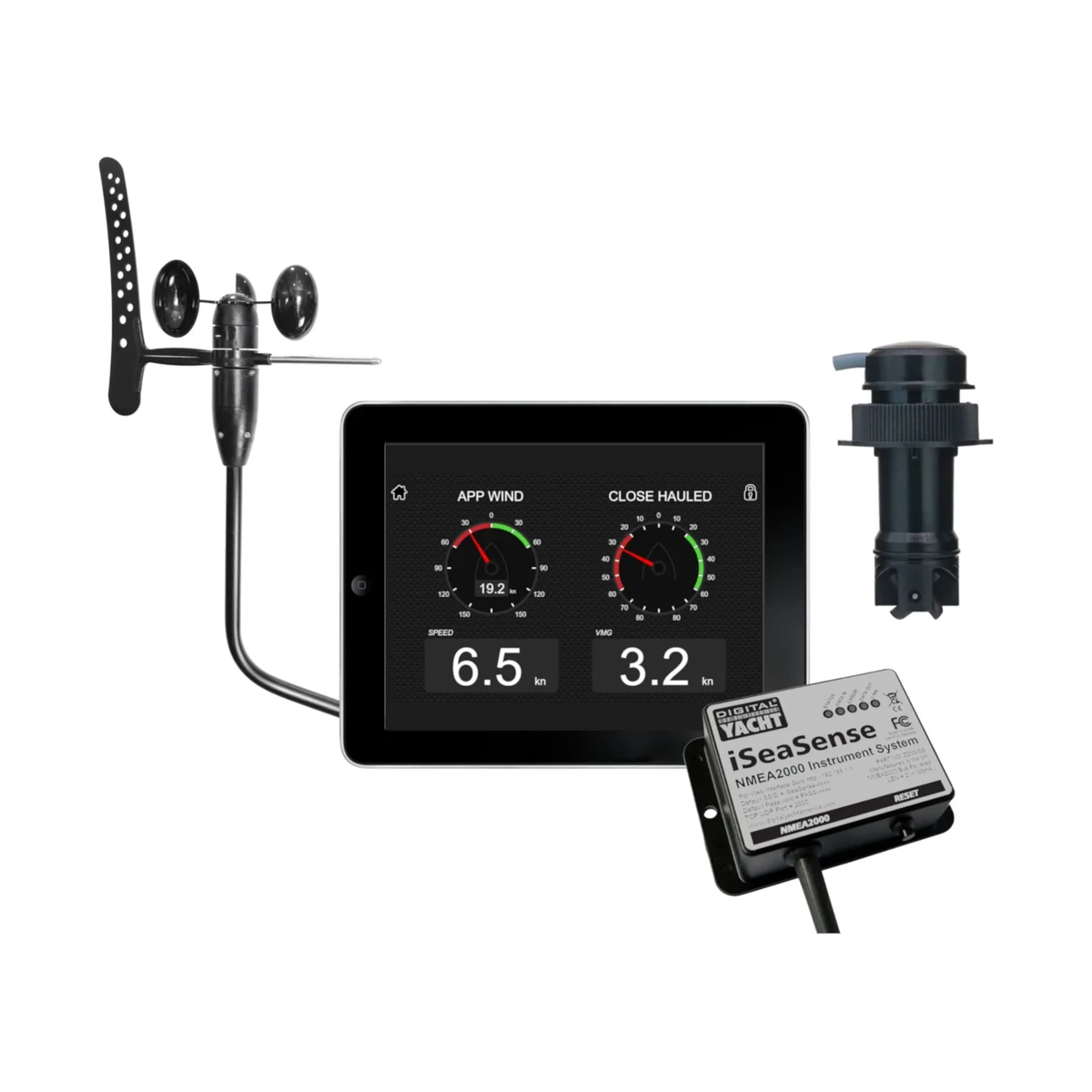

The iSeaSense ISSPK2 is a wireless sensor pack from Digital Yacht that combines speed, depth, temperature and wind data on a single self-powered NMEA 2000 backbone. The through-hull transducer delivers 5Hz speed updates from 0.3 to 45 knots, depth readings to 100m at a 235kHz operating frequency, and supports hull deadrise angles up to 22 degrees, while the wind sensor runs on an 8-18V supply with an ultra-low 25mA draw over a 20m masthead cable. An integrated WiFi antenna typically covers boats up to 20m and streams data over TCP/IP and UDP to as many as seven connected devices running third-party navigation apps.
Questions
Frequently asked questions
What speed range does the iSeaSense ISSPK2 measure?
It provides fast, accurate speed readings updated at 5Hz across a range of 0.3 to 45 knots.
How deep can the iSeaSense ISSPK2 read depth, and how is it powered?
The depth transducer operates at 235KHz to a maximum depth of 100m, updating once per second, and is self powered from the iSeaSense NMEA 2000 backbone via a 6m NMEA 2000 cable.
What size thru-hull does the iSeaSense ISSPK2 need, and what hull shapes does it fit?
It fits a standard 2 inch thru-hull and supports hulls with up to 22 degrees of deadrise.
How far does the iSeaSense ISSPK2's WiFi reach, and how many devices can connect?
The integrated WiFi antenna typically footprints a boat up to 20m, and supports additional TCP/IP and UDP data connections for up to 7 connected devices running third-party apps.
