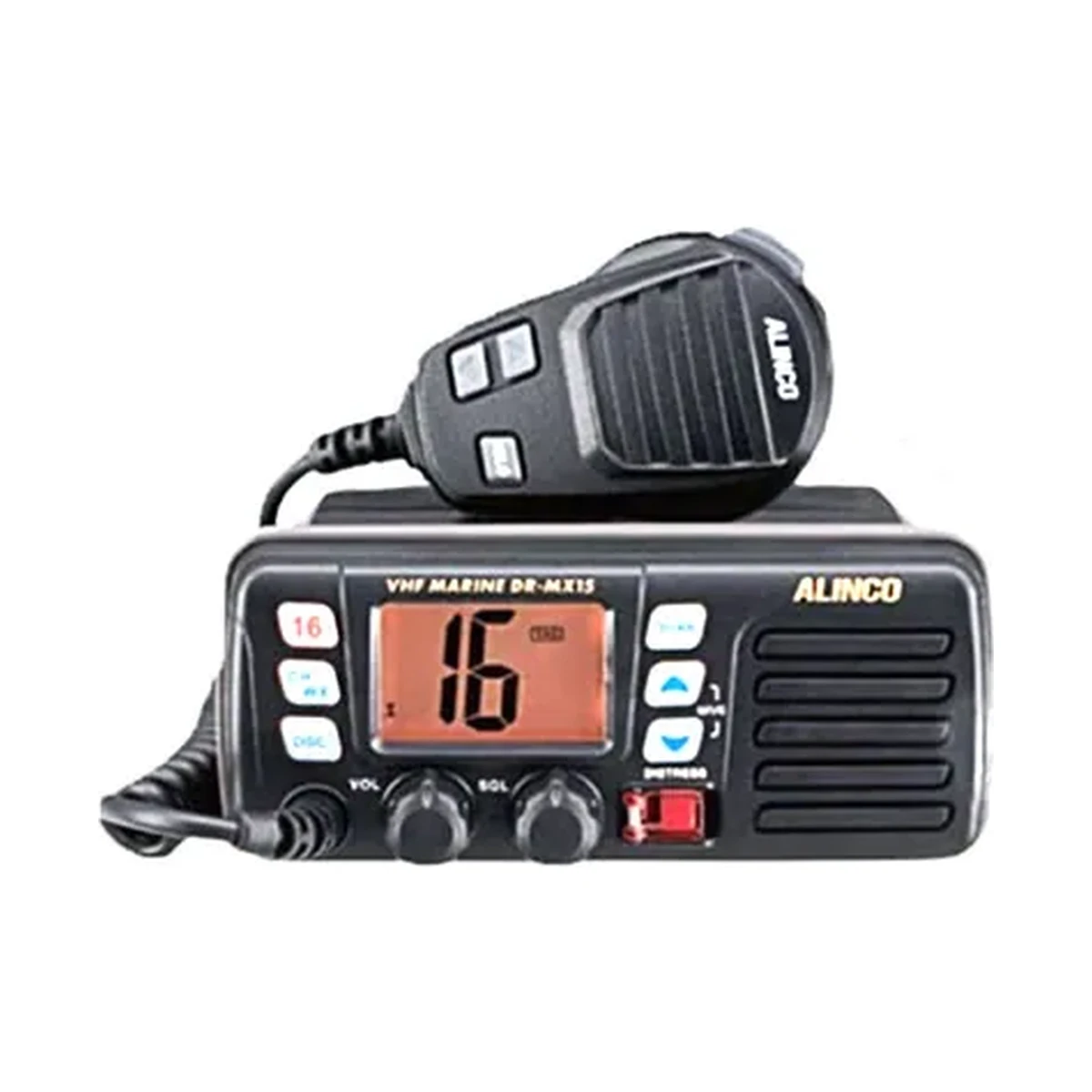

Alinco
SPECIFICATIONS Frequency range Tx : 156.025-157.425MHz Rx : 156.050-163.275MHz Frequency stability ±10ppm Emission type FM (16K0G3E), DSC(16K0G2B) Antenna impedance 50 Ω Rated voltage 13.8V ±15% Current Consumption 1.5A (Max audio output) 5.5A (TX 25W)/ 1.5A…
Technical
| Frequency range | Tx: 156.025-157.425MHz / Rx: 156.050-163.275MHz |
|---|---|
| Frequency stability | ±10ppm |
| Emission type | FM (16K0G3E), DSC (16K0G2B) |
| Antenna impedance | 50 Ω |
| Rated voltage | 13.8V ±15% |
| Current Consumption | 1.5A (Max audio output), 5.5A (TX 25W) / 1.5A (TX 1W) |
| Operating temperature | -20 to +60C |
| Ingress protection | IPX7 |
| Dimensions (WxHxD) | 153mm x 67mm x 152mm approx. |
| Weight | 742g (with microphone) |
| RF Output Power | 25W / 1W |
| Modulation Type | Variable Reactance |
| Spurious Emission | ≥70dB |
| Frequency deviation | ±5KHz |
| Receiver Circuit | Double-Conversion Superheterodyne |
| Intermediate Frequencies | 1st: 21.7 MHz / 2nd: 450 kHz |
| Sensitivity | 0.22µV (12 dB SINAD) |
| Adjacent Channel Selectivity | 70 dB |
| Intermodulation response | 70 dB |
| Audio Output (External speaker) | 4.5W (4Ω 10% THD) |
Overview
TRANSMITTER
RECEIVER
