Icom

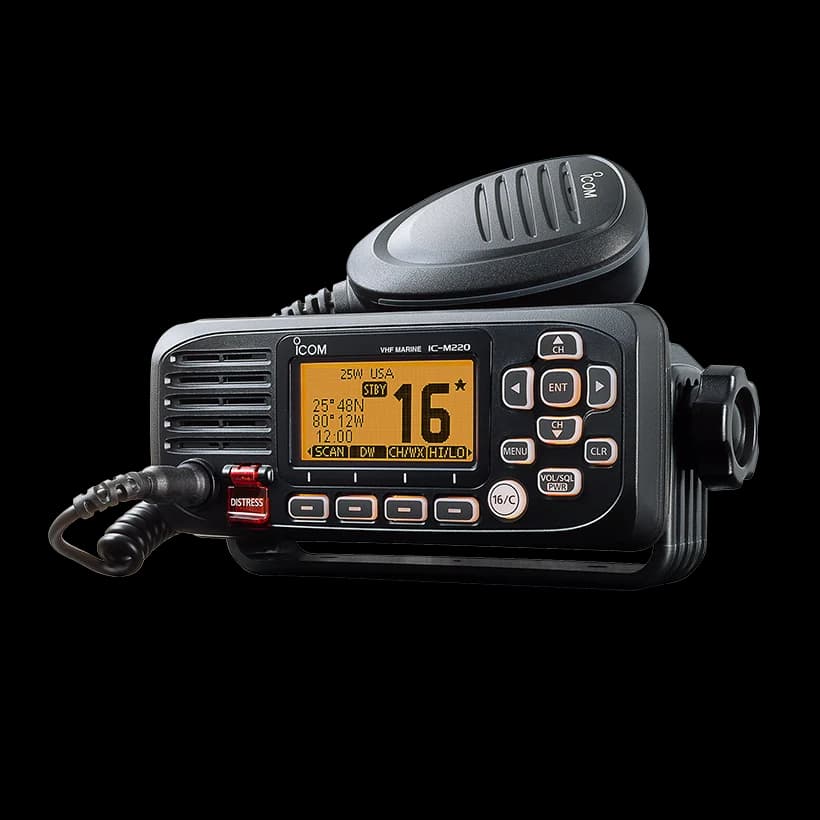

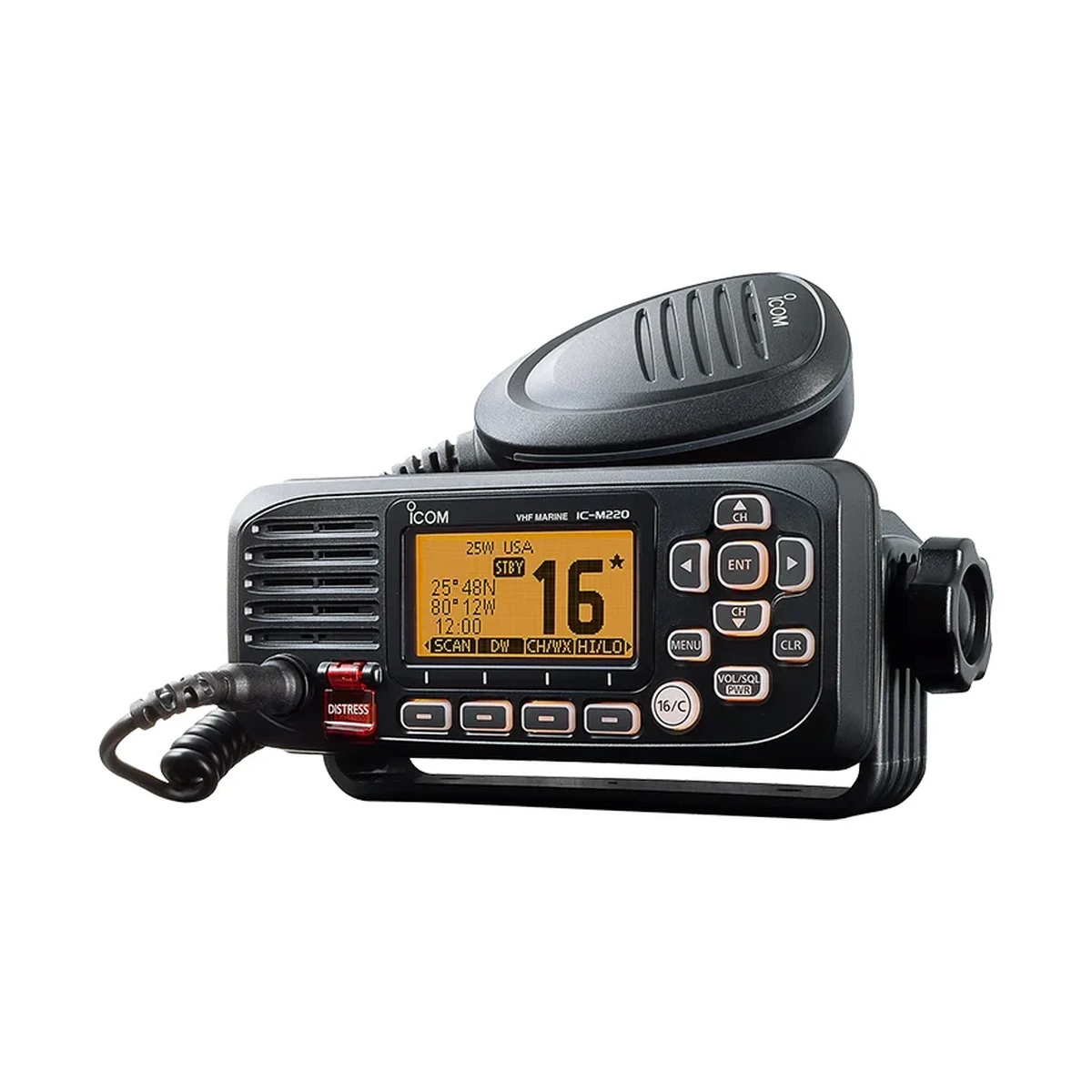

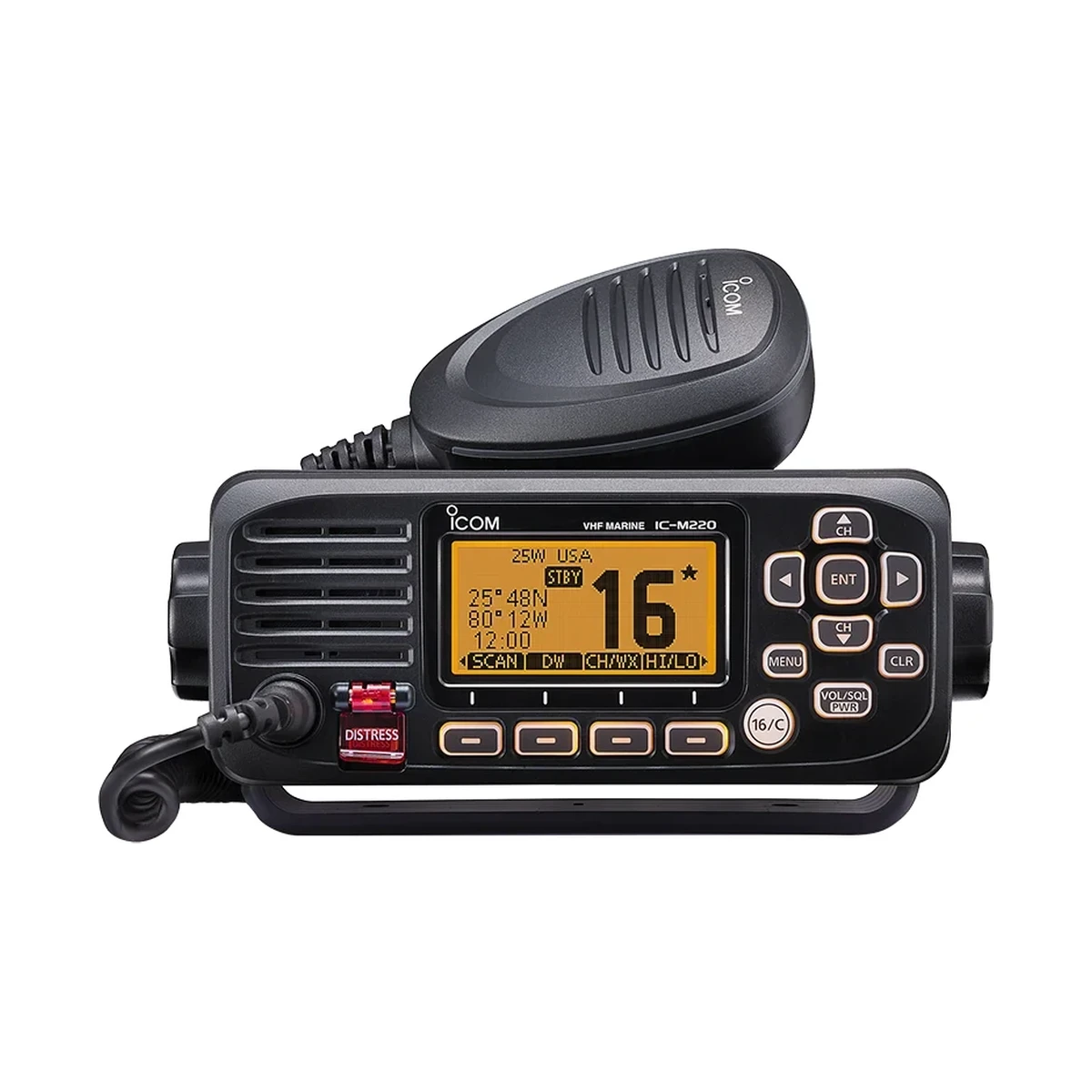

VHF Fixed Mount Transceivers Key Features: `High Quality, Excellent Performance Compact Body (W × H × D; 156.5 × 66.5 × 110.1 mm; 6.2 × 2.6 × 4.3 in) Easy Installation in Limited Space Powerful Front Mount Speaker Delivers Loud and Clear Audio Built-in Class…
Technical
| Frequency range TX | 156.025–157.425 MHz |
|---|---|
| Frequency range RX | 156.050–163.275 MHz |
| CH70 | 156.525 MHz |
| Usable channels | USA, CAN, INT, WX channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Power supply requirement | 13.8 V DC nominal (11.7–15.9 V DC) |
| Current drain TX 25W | 5 A |
| Current drain RX AF max | 1.2 A |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F |
| Antenna impedance | 50 Ω(SO-239) |
| Dimensions (W×H×D) | 156.5×66.5×110.1 mm; 6.2×2.6×4.3 inch |
| Weight (approx.) | 700 g; 1.5 lb (with HM-237B) |
| NMEA Input formats | RMC, GGA, GNS, GLL, VTG |
| NMEA Output formats | DSC, DSE, RMC, GSA, GSV |
| Output power | 25 W, 1 W |
| Max. frequency deviation | ±5 kHz |
| Frequency tolerance | ±5 ppm |
| Spurious emissions | Less than –60 dBc |
| Sensitivity Main | –13 dBµ typ. (12 dB SINAD) |
| Sensitivity DSC | –5 dBµ emf typ. (1% BER) |
| Squelch sensitivity | Less than –10 dBμ |
| Adjacent channel selectivity Main | More than 68 dB |
| Adjacent channel selectivity DSC | More than 68 dBμ emf (1% BER) |
| Intermodulation Main | More than 63 dB |
| Intermodulation DSC | More than 55 dBμ emf (1% BER) |
| Audio output power (4 Ω load, 10% distortion) | 4.5 W typical |
| Hum and noise | More than 40 dB |
