Icom

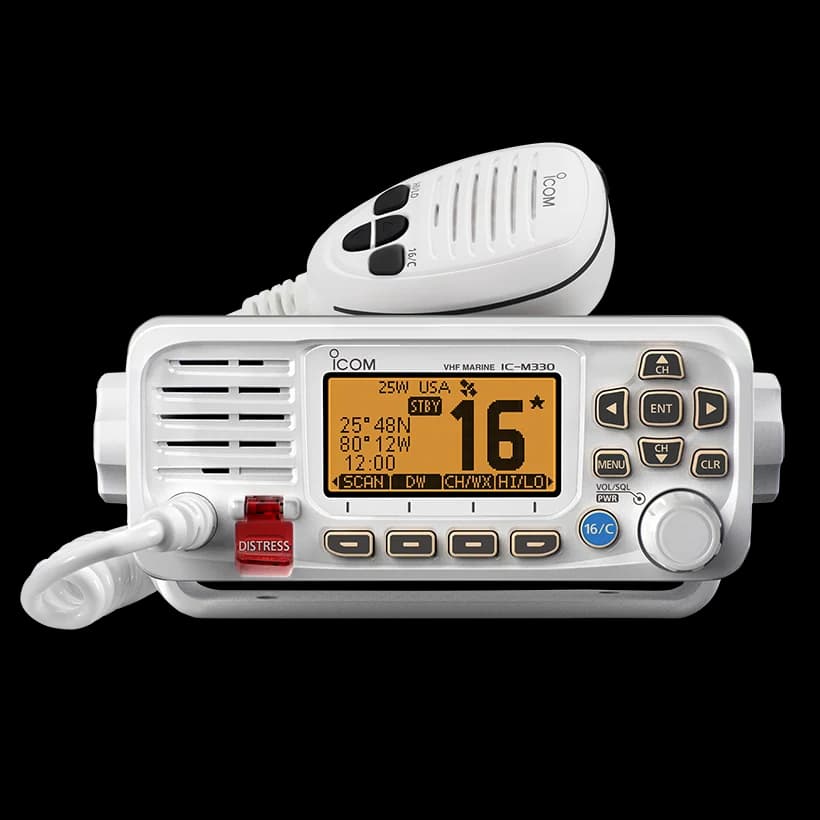

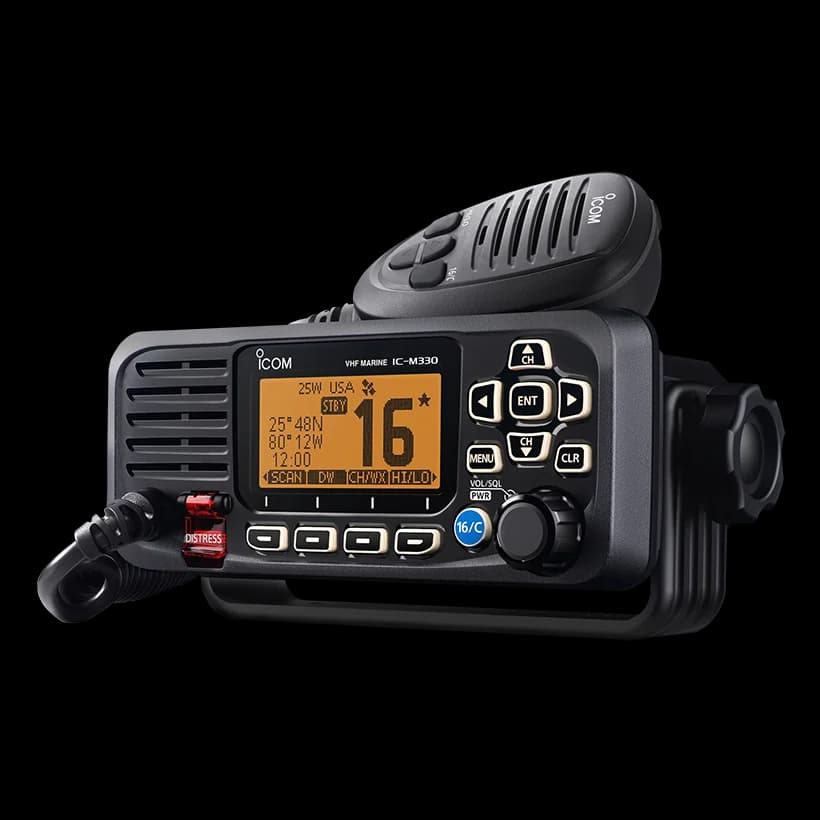

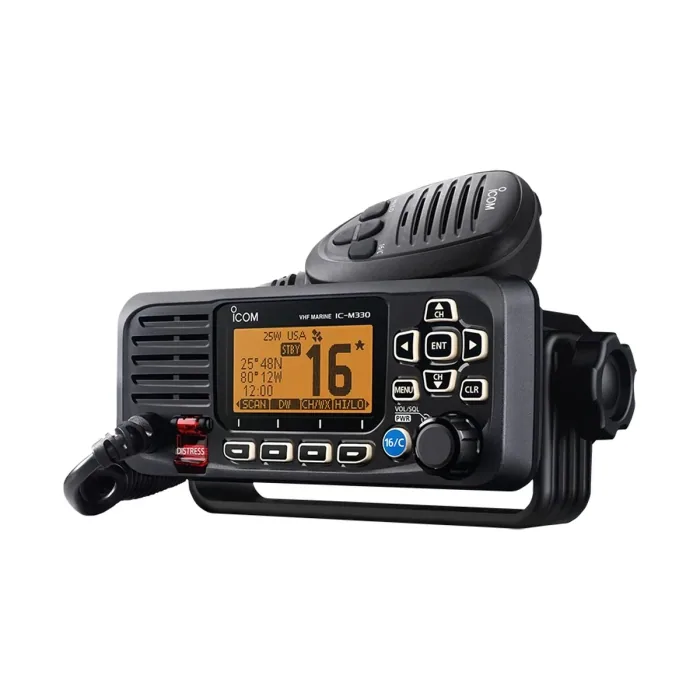

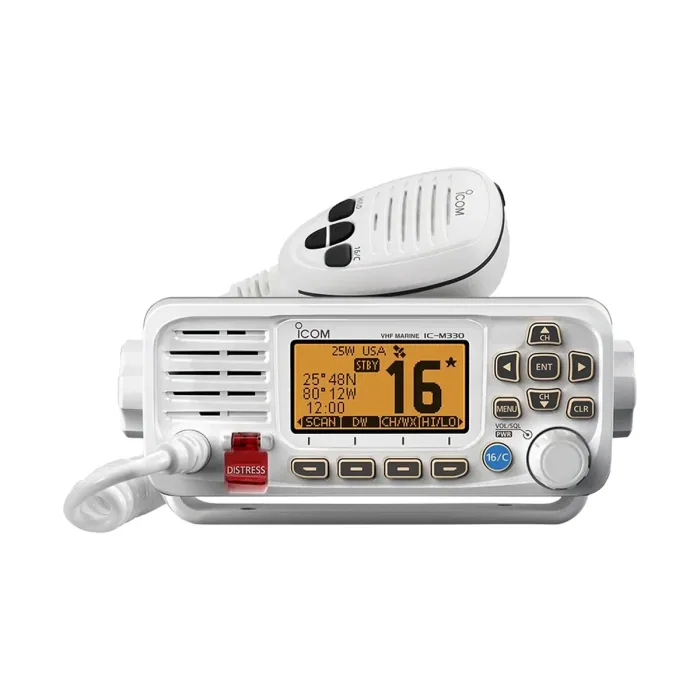

VHF Fixed Mount Transceivers Key Features: Top Performance Ultra Compact VHF Ultra Compact Body, Flexible Installation New Speaker Delivers Dynamic, Clear Audio Built-in Class D DSC Class Leading Receiver Performance Intuitive Operation with Icom Marine User…
Technical
| Frequency range TX | 156.025–161.600 MHz |
|---|---|
| Frequency range RX | 156.050–163.275 MHz |
| CH70 | 156.525 MHz |
| Usable channels | USA, CAN, INT, WX channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Power supply requirement | 13.8V DC nominal (11.7-15.9 V DC) |
| Current drain TX 25 W | 5 A |
| Current drain RX AF max | 1 A |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Antenna impedance | 50 Ω (SO-239) |
| Dimensions (W×H×D) | 156.5 × 66.5 × 88.2 mm; 6.2 × 2.6 × 3.5 in |
| Weight (approx.) | 730 g; 1.6 lb |
| NMEA formats In | RMC, GGA, GNS, GLL, VTG |
| NMEA formats Out | DSC, DSE, RMC, GSA, GSV |
| Output power (at 13.8 V DC) | 25 W, 1 W |
| Max. frequency deviation | ±5 kHz |
| Frequency tolerance | ±5 ppm |
| Spurious emissions High | Less than -70 dBc |
| Spurious emissions Low | Less than -56 dBc |
| Sensitivity Main | -13 dBμ typ. (12 dB SINAD) |
| Sensitivity DSC | -5 dBμ emf typ. (1% BER) |
| Squelch sensitivity | Less than -10 dBμ |
| Adjacent channel selectivity Main | More than 70 dB |
| Adjacent channel selectivity DSC | More than 73 dBμ emf (1% BER) |
| Spurious response Main | More than 70 dB |
| Spurious response DSC | More than 73 dBμ emf (1% BER) |
| Intermodulation Main | More than 70 dB |
| Intermodulation DSC | More than 68 dBμ emf (1% BER) |
| Hum and noise | More than 40 dB |
| Audio output power (at 10% distortion, 4 Ω load) | 4.5 W typical |
