Garmin

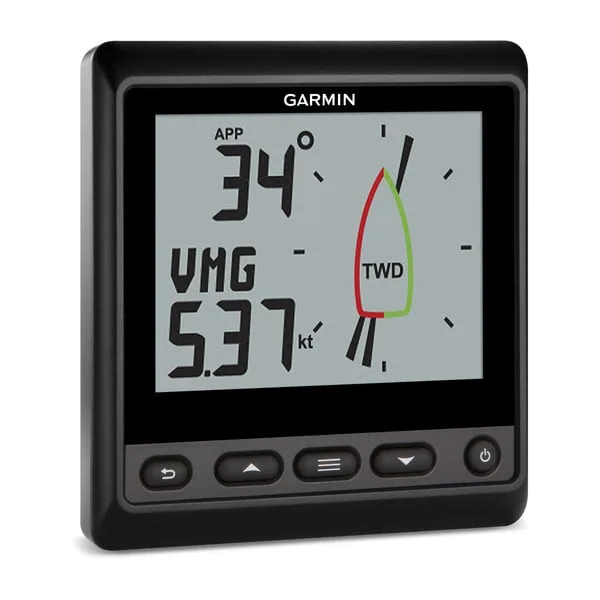

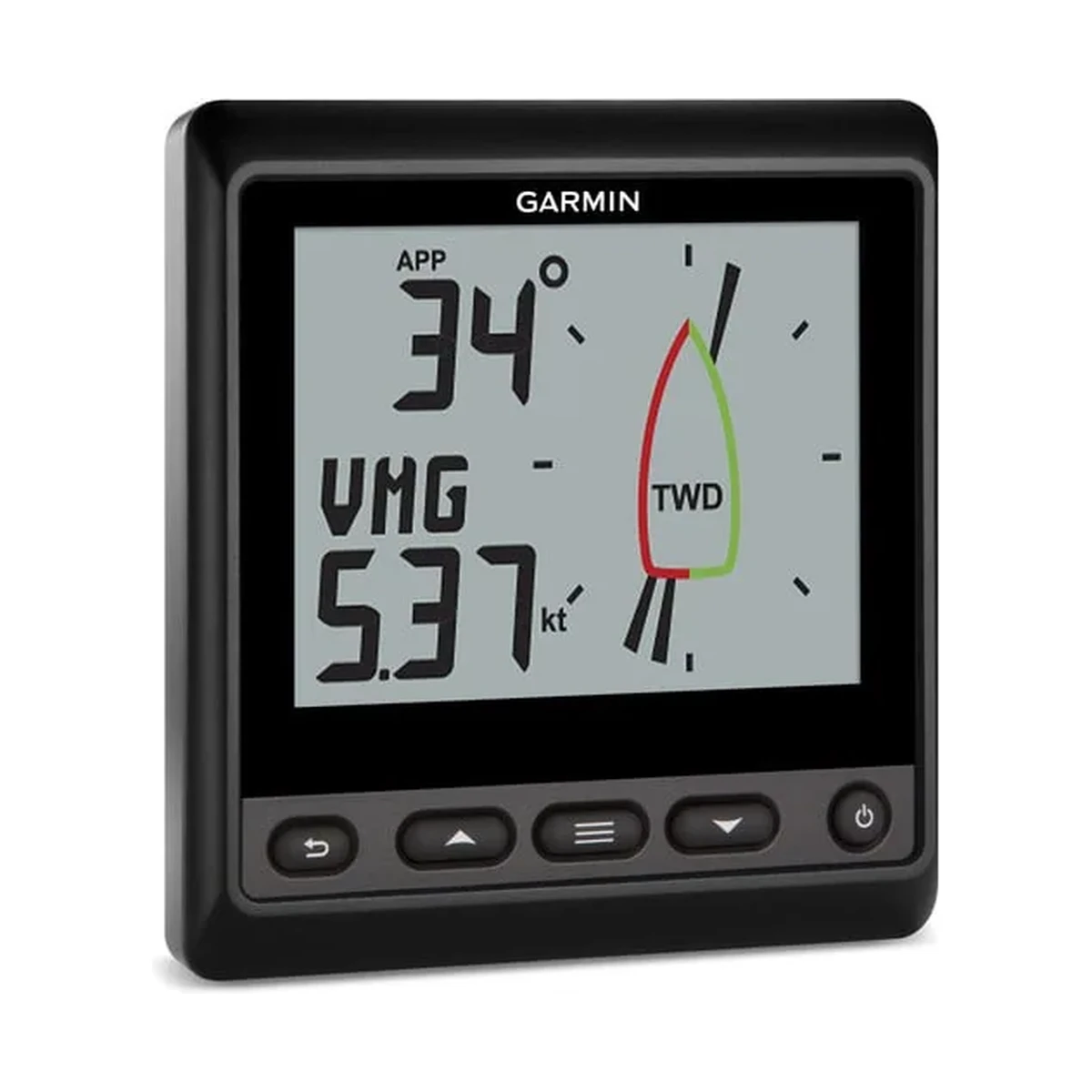

GNX Wind
A compact NMEA 2000 wind display for sailboats, built into a gasketed, IPX7-rated polycarbonate housing.
- Brand
- Garmin
- Category
- Marine
- Manufacturer
- Garmin website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Physical dimensions without sun cover | 110 x 115 x 30 mm (4.33 x 4.53 x 1.18 in.) |
|---|---|
| Physical dimensions with sun cover | 115 x 120 x 35.5 mm (4.53 x 4.72 x 1.40 in.) |
| Weight without sun cover | 247 g (8.71 oz.) |
| Weight with sun cover | 283 g (9.98 oz.) |
| Temperature range | From 5° to 158°F (from -15° to 70°C) |
| Compass-safe distance | 209 mm (8.25 in.) |
| Case material | Fully-gasketed polycarbonate |
| Lens material | Glass with an anti-glare finish |
| Water rating | IEC 60529 IPX7 |
| Power consumption | 1.35 W max |
| Unit maximum voltage | 32 Vdc |
| NMEA 2000 input voltage | 9 to 16 Vdc |
| NMEA 2000 LEN @ 9 Vdc | 3 |
| NMEA 2000 draw | 150 mA |
Overview
About this product
The GNX Wind is a dedicated wind instrument display for sailboats, built into a fully gasketed polycarbonate case with a glass, anti-glare-finished lens and an IPX7 water rating. It measures 110 x 115 x 30 mm and weighs 247 g without its optional sun cover, drawing a maximum of 1.35 W over its NMEA 2000 connection at 9 to 16 Vdc. It is rated for operation from minus 15 to 70 degrees C and carries a compass-safe distance of 209 mm.
Questions
Frequently asked questions
Is the Garmin GNX Wind display waterproof?
Yes. It carries an IEC 60529 IPX7 water rating and has a fully-gasketed polycarbonate case with an anti-glare glass lens.
What operating temperature range does the GNX Wind support?
It is rated to operate from -15 to 70 degrees C (5 to 158 degrees F).
How does the GNX Wind connect and how much power does it draw?
It connects over NMEA 2000, accepting 9 to 16 Vdc input with a load equivalency number of 3 and a draw of 150 mA, for a maximum power consumption of 1.35 W.
