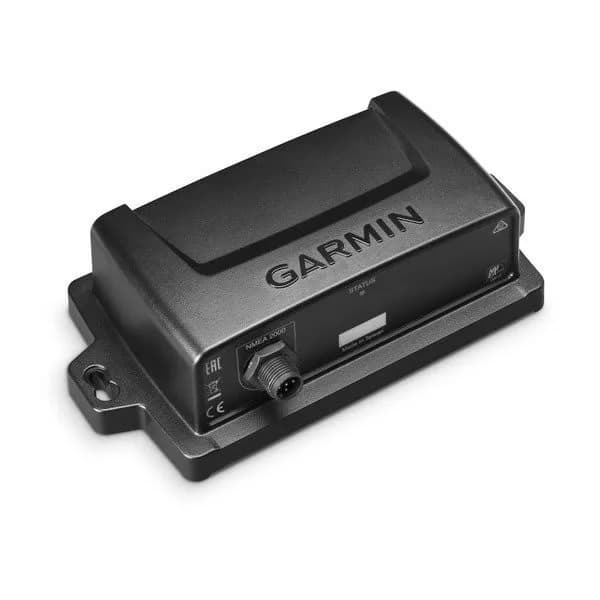

SteadyCast Heading Sensor
A compact NMEA 2000 heading sensor housed in a fully gasketed, IPX7-rated case for feeding compass data to marine displays and radar.
Enquire →
Garmin

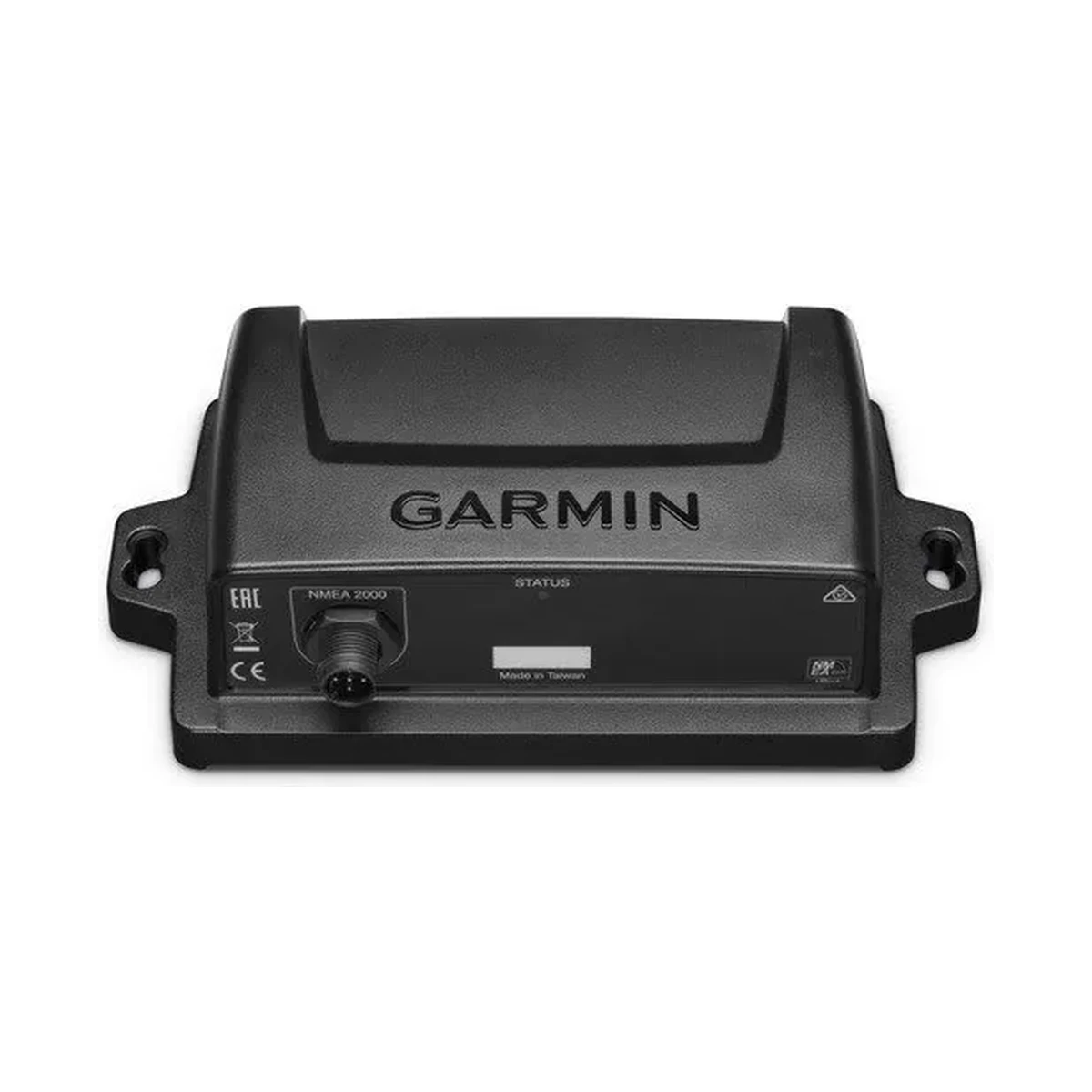

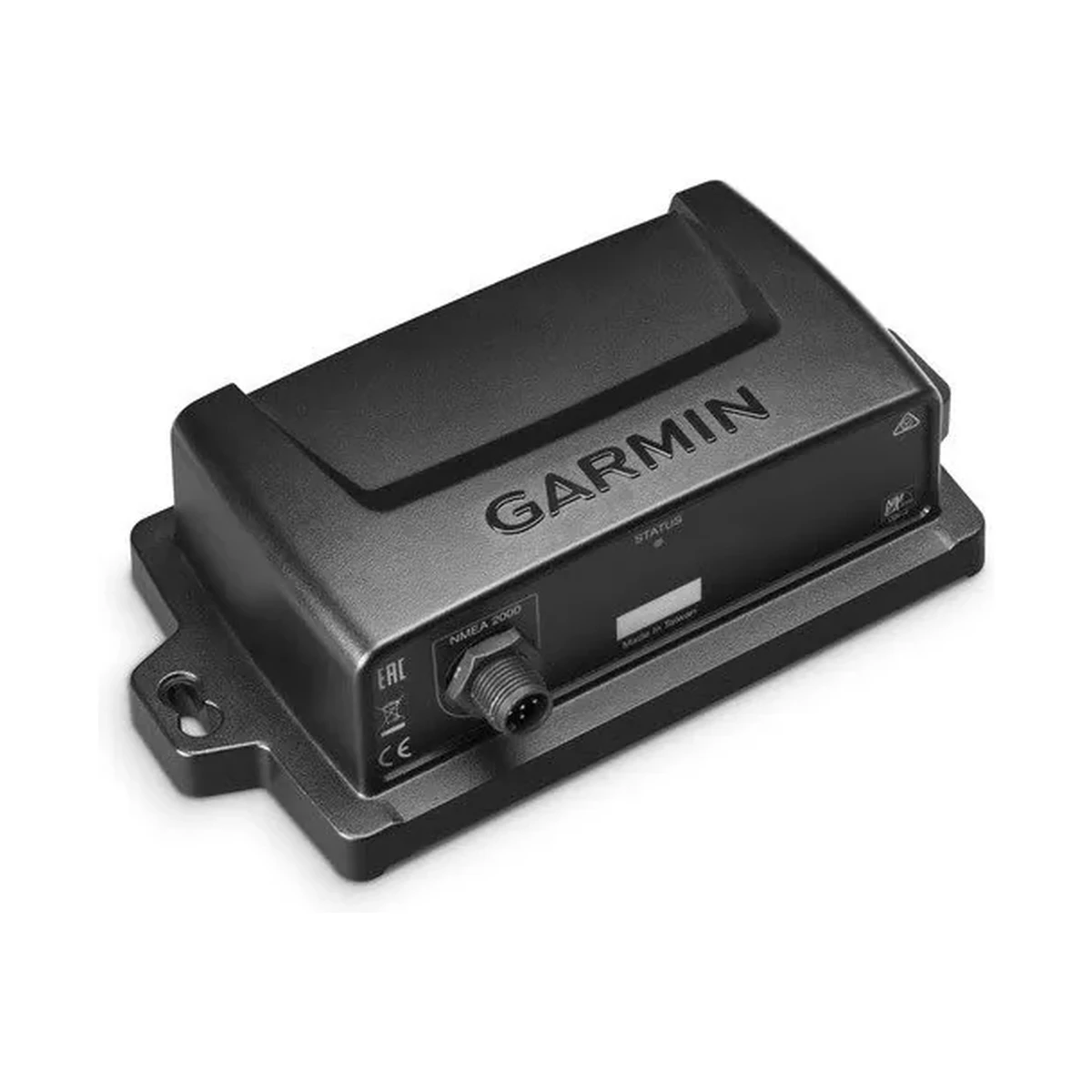

9-Axis Heading Sensor
A 9-axis heading sensor delivering compass output at 10 Hz with typical accuracy of plus or minus 2 degrees across the full 0 to 360 degree range.
- Brand
- Garmin
- Category
- Marine
- Manufacturer
- Garmin website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Output rate | 10 Hz |
|---|---|
| Accuracy | ±2° (typical) |
| Water rating | IEC 60529 IPX7 |
| Operating temperature | From -20°C to 60°C |
| Storage temperature | From -30°C to 70°C |
| Power supply | 9 to 30 Vdc |
| Power consumption | 0.5 A @ 12 Vdc (typical) |
| Dimensions (L x W x H) | 127 mm x 84 mm x 43 mm |
| Weight | 210 g |
| Heading output range | 0° to 359.9° |
Overview
About this product
The 9-Axis Heading Sensor outputs compass heading data at 10 Hz across the full 0 to 359.9 degree range, with a typical accuracy of plus or minus 2 degrees. It measures 127 x 84 x 43 mm and weighs 210 g, running on 9 to 30 Vdc and drawing a typical 0.5 A at 12 Vdc. It is IPX7 rated and specified for operation from minus 20 to 60 degrees C.
Questions
Frequently asked questions
How accurate is the Garmin 9-Axis Heading Sensor?
It provides a typical accuracy of plus or minus 2 degrees, with a heading output range of 0 to 359.9 degrees and an output rate of 10 Hz.
Is the 9-Axis Heading Sensor waterproof?
Yes, it carries an IEC 60529 IPX7 water rating.
What power supply does the 9-Axis Heading Sensor need?
It runs on 9 to 30 Vdc, drawing a typical 0.5 A at 12 Vdc.
