Haiyang

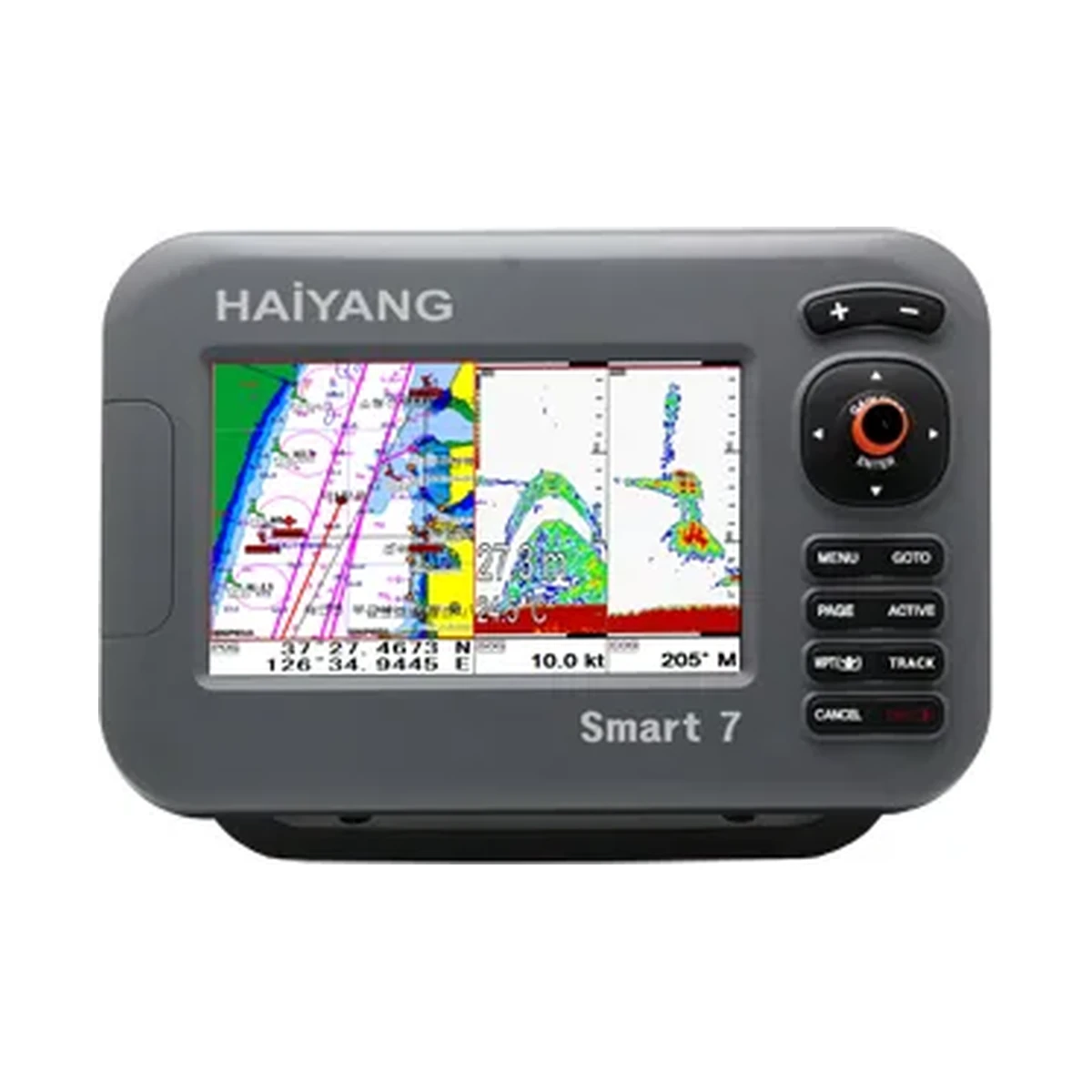

Haiyang HD-770CF
The Haiyang HD-770CF is a 7-inch chartplotter/fishfinder combo with dual-frequency sounding up to 1.2kW and IMO Resolution MSC.112(73) compliance.
- Brand
- Haiyang
- Category
- Marine
- Availability
- Enquire for lead time
Technical
Specifications
| Display Screen | 7 inch wide color LED backlight |
|---|---|
| Power Supply | DC 12V ~ 36V (±10%) |
| Operation Temperature (Display Unit) | -15°C ~ +50°C |
| Operation Temperature (Antenna Unit) | -25°C ~ +70°C |
| Performance Standard | IMO Resolution MSC.112(73) |
| Back-up | SD Card (optional) |
| GPS Receive Type | L1 Frequency (1575.42MHz), C/A code |
| Number of Channel | Over 50 channels |
| Accuracy (Position) | 2.5m CEP |
| Accuracy (DGPS/SBAS) | 2.0m CEP |
| Sensitivity | Acquisition -140 dBm, Tracking -149 dBm |
| Data Update Rate | 1 second |
| GPS Support | DGPS, SBAS (WAAS, etc.) |
| Display Method | Mercator projection |
| Display Mode | True motion / North up / Course up / Head up |
| Latitude Limits | Between 85°N to 85°S |
| Map Datum | WGS-84 |
| Track Point | 50,000 points |
| Route | 100 routes |
| Chart Data | Built-in / C-MAP / HY Chart (SD Card) |
| Output Data | NMEA-0183 |
| Input Data | NMEA-0183 |
| Alarm | Arrival, Anchor, Off course, Interval timer, AIS (CPA, TCPA) |
| Fishfinder Display Mode | Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, A-scope |
| Fishfinder Frequency | 50 and 200 kHz (single or dual) |
| Fishfinder Output Power | 600W (standard) / 1.2kW (option) |
| Depth Range | 2.5m ~ 1,200m |
| Image Speed | Fixed 8 speeds and stop |
| Interference Rejection | 3 levels |
| Noise Rejection | 4 levels |
| Function | Gain (auto/manual), Range (auto/manual), Depth with shift (auto/manual), White/Black line, Water temperature |
Overview
About this product
The Haiyang HD-770CF combines a 7 inch wide color LED-backlight chartplotter with a 50/200 kHz single- or dual-frequency fishfinder rated at 600W standard output (1.2kW optional), covering depth ranges from 2.5m to 1,200m. Its GPS receiver tracks over 50 channels on L1 (1575.42 MHz, C/A code), supported by DGPS and SBAS augmentation. The unit stores up to 50,000 track points and 100 routes, and reads built-in, C-MAP and HY chart data over a Mercator projection display. Built to IMO Resolution MSC.112(73), it runs on a DC 12V to 36V supply and its antenna unit is rated from -25°C to +70°C.
Questions
Frequently asked questions
What size is the Haiyang HD-770CF display?
The HD-770CF has a 7 inch wide color LED-backlight display.
What fishfinder power and depth range does the HD-770CF offer?
The built-in fishfinder runs at 50 and 200 kHz (single or dual) with 600W standard output power, extendable to 1.2kW optionally, covering a depth range of 2.5m to 1,200m.
What chart data can the HD-770CF use?
It supports built-in, C-MAP and HY chart data loaded via SD card.
How many waypoints and routes can the HD-770CF store?
It stores up to 50,000 track points and up to 100 routes.
