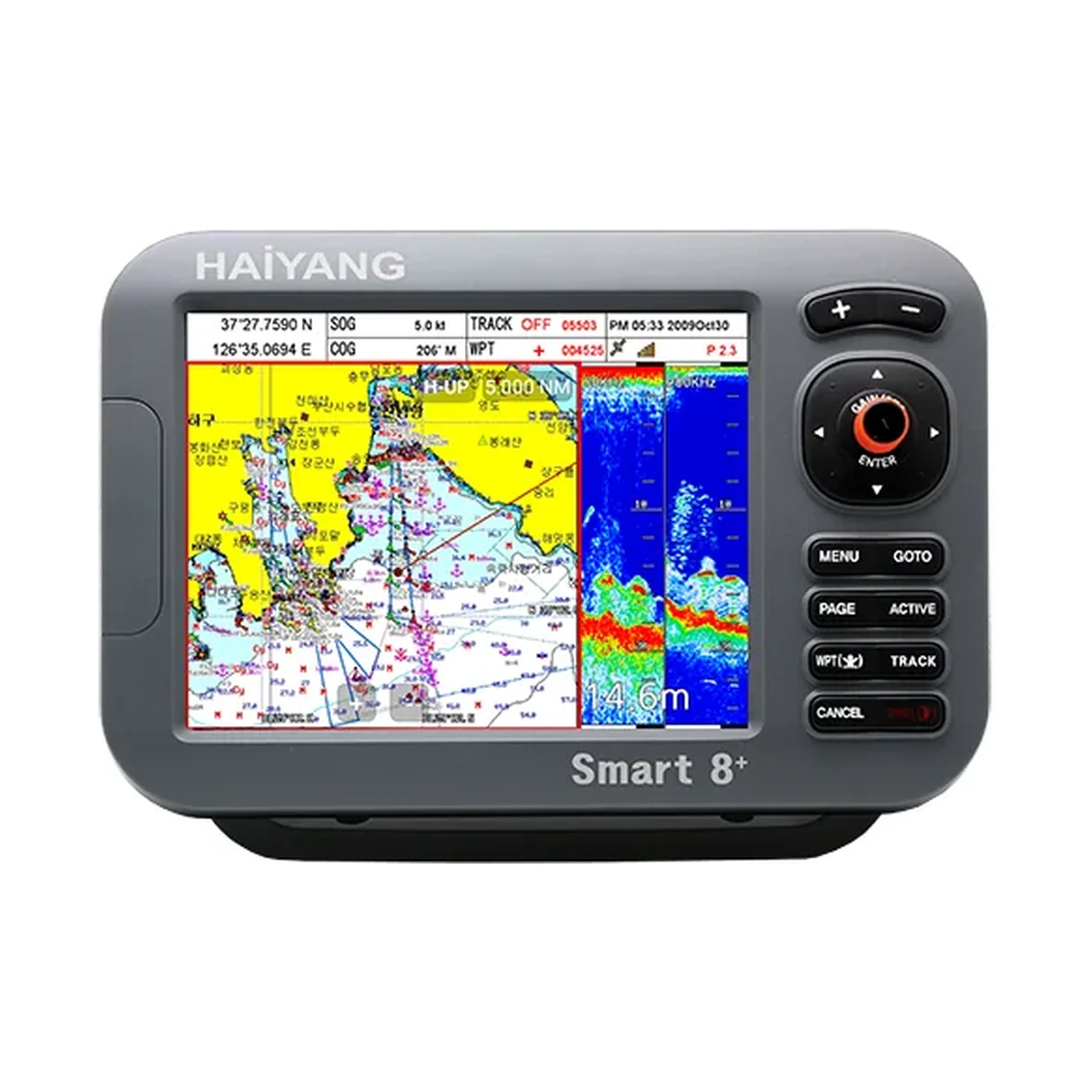

Haiyang HD-880CFA
The Haiyang HD-880CFA is an 8-inch SVGA fishfinder/GPS combo with dual-frequency 50/200 kHz sounding up to 1.5kW, multi-constellation GNSS, and IMO Resolution MSC.112(73) compliance.
- Brand
- Haiyang
- Category
- Marine
- Availability
- Enquire for lead time
Technical
Specifications
| Display Screen | 8 inch color LCD with LED backlight |
|---|---|
| Resolution | SVGA (800 x 600 pixels) |
| Power Supply | DC 12V ~ 36V (±10%) |
| Operation Temperature (Display Unit) | -15°C ~ +50°C |
| Operation Temperature (Antenna Unit) | -25°C ~ +70°C |
| Performance Standard | IMO Resolution MSC.112(73) |
| GNSS Receiver Capabilities | GPS L1 C/A code, GLONASS L10F, QZSS L1 C/A code, Galileo E1B/E1C/L1 |
| Number of Channel | 52 channel over |
| Horizontal Positioning Accuracy (Autonomous) | 2.5m (CEP 50%) |
| Sensitivity | Acquisition -148 dBm, Tracking -165 dBm, Reacquisition -162 dBm |
| Nav Update | 1Hz |
| Support | DGPS, SBAS (EGNOS, WAAS, MASA, GAGAN, GLONASS) |
| Display Method | Mercator projection |
| Display Mode | True motion/N/S/E/W up/Course up/Head up |
| Latitude Limits | Between 85°N to 85°S |
| Map Scale | 0.05NM to 1,500NM |
| Map Datum | WGS-84 |
| Waypoint | 100,000 points (16 colors and 16 icons selectable per point) |
| Track Point | 50,000 points (2 types) |
| Route | Max capacity 100 Routes (20 WPTs per Route, each with name tags of 8 alphanumeric characters) |
| Draw Point | 1,000 points |
| Area Name | 1,000 points |
| Chart Data | HY-MAP (Built-in or External)/C-MAP 4D |
| Output Data | NMEA-0183 |
| Input Data | NMEA-0183 |
| Alarm | Arrival, Anchor, XTE, Interval timer, Userline |
| Fishfinder Display Mode | Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, Partial-zoom, A-scope |
| Fishfinder Frequency | 50 and 200 kHz |
| Fishfinder Output Power | 600W / 1.5kW |
| Range Speed (600W) | 2.5m ~ 600m |
| Range Speed (1,200W) | 2.5m ~ 1,500m |
| Image Speed | Fixed 8 speeds (4/1, 2/1, 1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop |
| Interference Rejection | 3 levels |
| Noise Rejection | 30 levels |
| Function | Gain (auto/manual), Range (auto/manual), Shift (auto/manual), White/Black line, Support speed sensor, Water temperature, Time machine, Contrast |
Overview
About this product
The Haiyang HD-880CFA combines an 8 inch color LCD (SVGA, 800 x 600) chartplotter with a dual-frequency 50 and 200 kHz fishfinder rated at 600W/1.5kW output, covering depth ranges from 2.5m to 1,500m. Its 52-plus channel GNSS receiver covers GPS, GLONASS, QZSS, and Galileo with DGPS/SBAS augmentation, and the unit stores up to 100,000 waypoints, 50,000 track points, and 100 routes, reading HY-MAP and C-MAP 4D chart data. It meets IMO Resolution MSC.112(73), and its fishfinder section offers eight fixed image speeds along with auto or manual gain, range, and shift controls.
Questions
Frequently asked questions
What size is the display on the Haiyang HD-880CFA?
The HD-880CFA has an 8 inch color LCD with LED backlight and SVGA resolution (800 x 600 pixels).
Does the HD-880CFA include a built-in fishfinder?
Yes. It has an integrated fishfinder with 50 and 200 kHz frequencies, 600W/1.5kW output power, and display modes including Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, Partial-zoom and A-scope.
What GNSS systems does the Haiyang HD-880CFA support?
It receives GPS L1 C/A code, GLONASS L10F, QZSS L1 C/A code and Galileo E1B/E1C/L1 across 52-plus channels, with DGPS and SBAS (EGNOS, WAAS, MASA, GAGAN, GLONASS) augmentation support.
How accurate is the GPS positioning on the HD-880CFA?
Horizontal positioning accuracy is 2.5m (CEP 50%) in autonomous mode, with a 1Hz navigation update rate.
