Icom

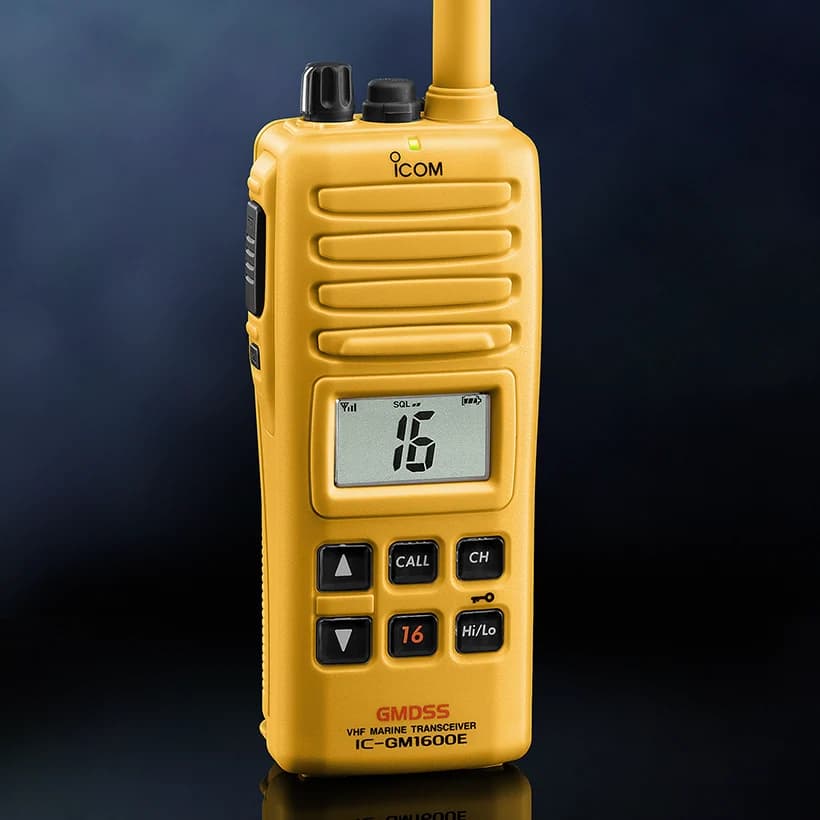

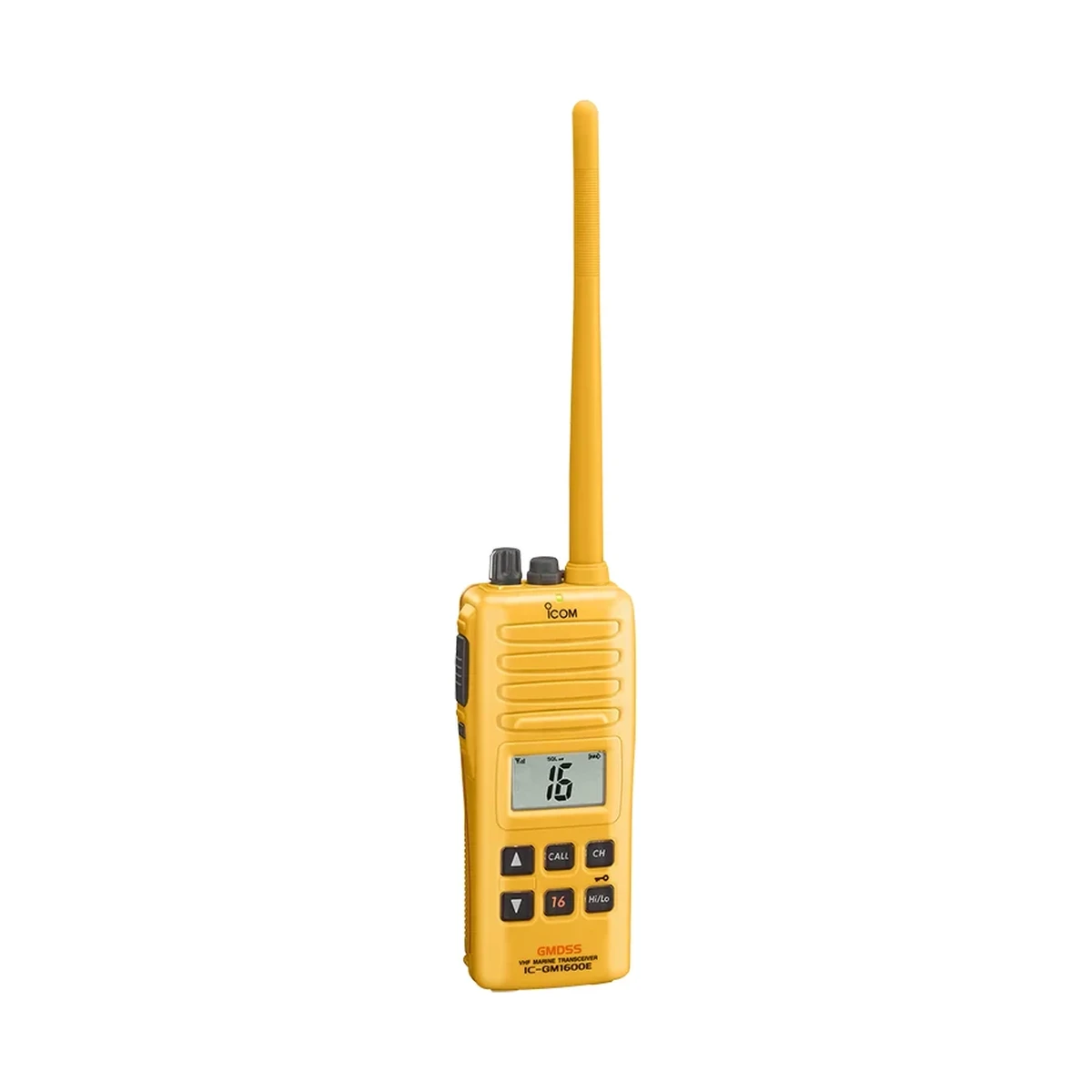

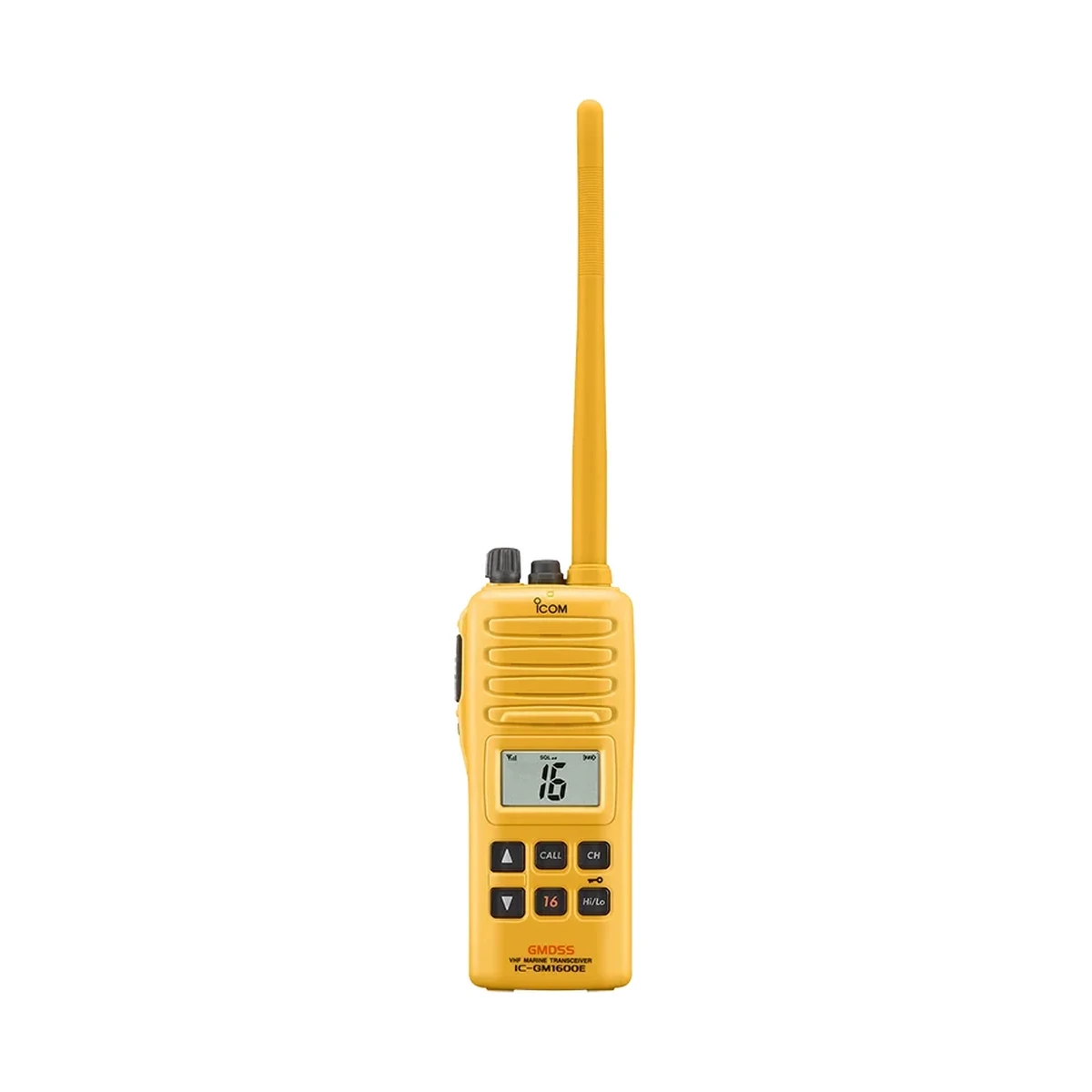

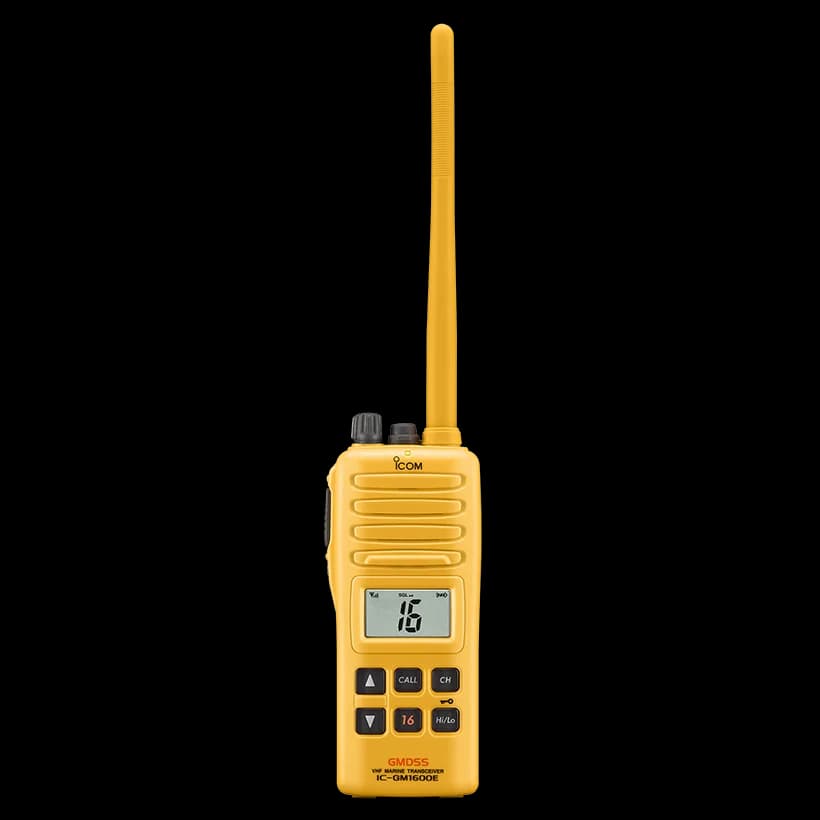

IC-GM1600E
VHF Handheld Transceivers Key Features: Meets strict environmental requirements for GMDSS Superior low temperature characteristic Lithium battery pack Large keypad with positive button action Meets MED 2014/90/EU, “Wheel mark” requirements Wide viewing angle…
- Brand
- Icom
- Category
- Marine
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Frequency range (Tx/Rx) | 156.300–156.875 MHz |
|---|---|
| Dimensions (W×H×D) | 65×145×44 mm |
| Weight (approx.) | 385 g (With BP-234) |
| RF output power | 2/1 W |
| Current drain (High) | 1.0 A (2 W output) |
| Sensitivity (at 12 dB SINAD) | –2 dBμ typ. |
| Intermodulation rejection | 68 dB |
| Audio output power (10% dist./8 Ω load) | 200 mW |
| Current drain (Max. audio) | 200 mA |
Overview
About this product
The IC-GM1600E meets temperature, thermal shock, vibration and drop resistant (from 1 m height) requirements. After passing those environmental tests, the IC-GM1600E retains 1m depth waterproof construction as specified by IMO resolution MSC.149(77) and other related regulations.
Other features
- One touch access to Channel 16 and call channel
- Highly visible yellow colored body
- Optional VOX headset for on-board use
Related
You may also need
IcomMarineGM600
VHF Mobile Transceivers Key Features: GMDSS VHF Radio with Class A DSC Meets MED "Wheel Mark" Requirements Meets ITU-R M.493-13 DSC 4.3 inch Wide Viewing Angle Colour TFT LCD Provides Loud, Clear Audio Intuitive User Interface DC-DC Converter PS-310
1 downloadEnquire →

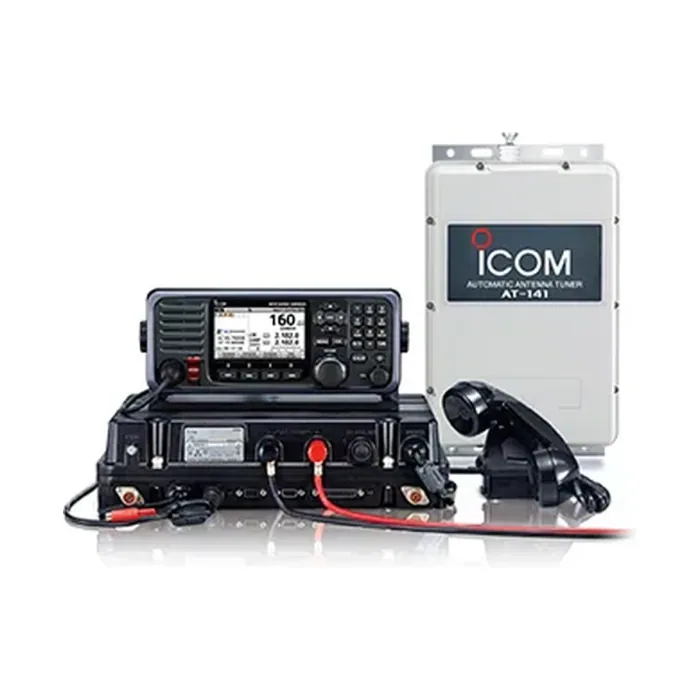

IcomMarineGM800
