Icom

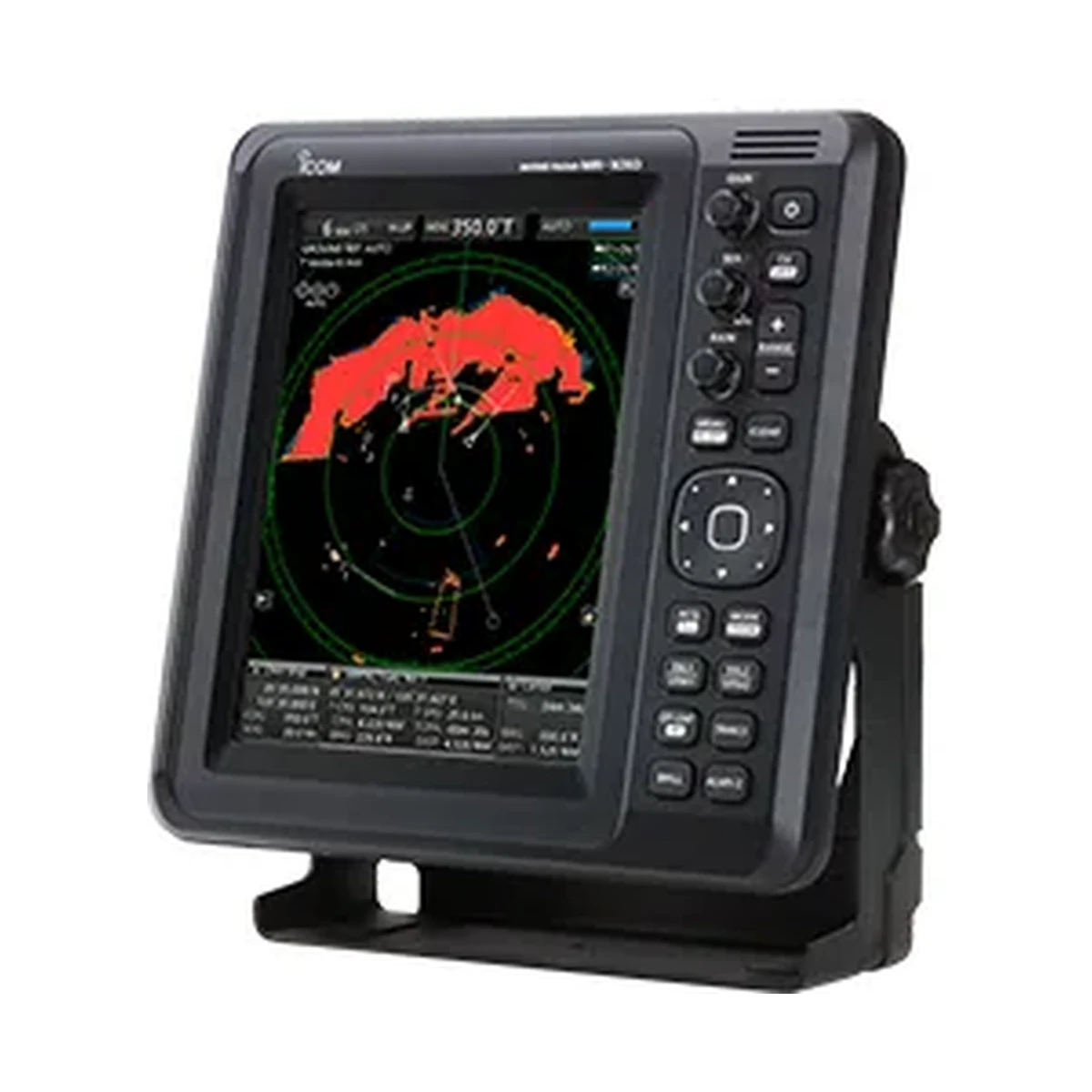

MR-1010RII
Marine Radar Key Features: 36 NM Range Observation with 4kW Output Radome Scanner Simplified ARPA (Automatic Radar Plotting Aids) Function* DSC (Digital Selective Calling) Information Function* AIS (Automatic Identification System) Overlay Function* Wide…
- Brand
- Icom
- Category
- Marine
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Display type | 10.4-inch Color TFT LCD |
|---|---|
| Resolution | 480 × 640 dots |
| Minimum range | 25 m; 82 ft (at 1/8 NM range) |
| Maximum range | 36 NM |
| Range scales (NM) | 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36 |
| Range scales (km) | 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, 48 |
| Preheat time | 90 seconds |
| Power supply | 10.2–42 V DC |
| Power consumption | 55 W (approximately) |
| Usable temperature range | −15°C to +55°C; +5°F to +131°F |
| Input data format | NMEA 0183, N+1, AUX, IEC61162-2 |
| Output data format | NMEA 0183 |
| Scanner type | 60 cm; 2 ft radome scanner |
| Rotation speed | 24, 36 rpm typ. |
| Horizontal beamwidth | 4° typ. |
| Vertical beamwidth | 22° typ. |
| Sidelobe | −22 dB typ. |
| Scanner usable temperature range | −25°C to +70°C; −13°F to +158°F |
| Scanner usable humidity range | Less than 95% (at 40°C; +104°F) |
| Frequency | 9410 MHz ±30 MHz |
| Modulation | P0N |
| Peak output power | 4 kW |
| Pulse-width/repetition rate | 80 ns/2160 Hz, 80 ns/1440 Hz, 250 ns/1440 Hz, 350 ns/1440 Hz, 900 ns/720 Hz |
| Modulator | FET switching |
| Intermediate frequency | 60 MHz (EUR Version), 250 MHz (EXP Version) |
| IF bandwidth | 10 MHz / 3 MHz (EUR Version), 15 MHz / 3 MHz (EXP Version) |
| Tuning | Auto/manual selectable |
| Supplied system cable | 15 m; 49.2 ft (OPC-2341) |
Overview
About this product
Simplified ARPA, Wide Viewing Angle Color TFT LCD and Made in Japan Reliability
Other features
- 10.2–42V wide DC input to prevent over voltage damage
- Two user programmable alarm zones
- Waypoint indication*
- Designed, engineered and Made in Japan
Questions
Frequently asked questions
What size and resolution is the MR-1010RII radar display?
The MR-1010RII has a 10.4-inch colour TFT LCD with a resolution of 480 x 640 dots.
What is the maximum range of the Icom MR-1010RII radar?
The MR-1010RII has a maximum range of 36 NM, with selectable range scales down to 1/8 NM for close-in work.
What is the peak output power of the MR-1010RII scanner?
The scanner unit has a peak output power of 4 kW at a frequency of 9410 MHz +/-30 MHz.
What power supply does the MR-1010RII need?
It runs on 10.2-42 V DC and draws approximately 55 W.
Does the MR-1010RII have ARPA target tracking?
It has simplified ARPA, automatically tracking targets and showing their course and speed to help assess collision risk, alongside two user-programmable alarm zones. This is a simplified implementation rather than the full ARPA capability required on larger SOLAS-regulated vessels.
Related
You may also need
GarminMarineGMR 434/436 xHD3 Open-Array Radar
An open-array marine radar delivering up to 72 nm range and 4 kW peak transmit power with 24 or 48 rpm antenna rotation.
Enquire →

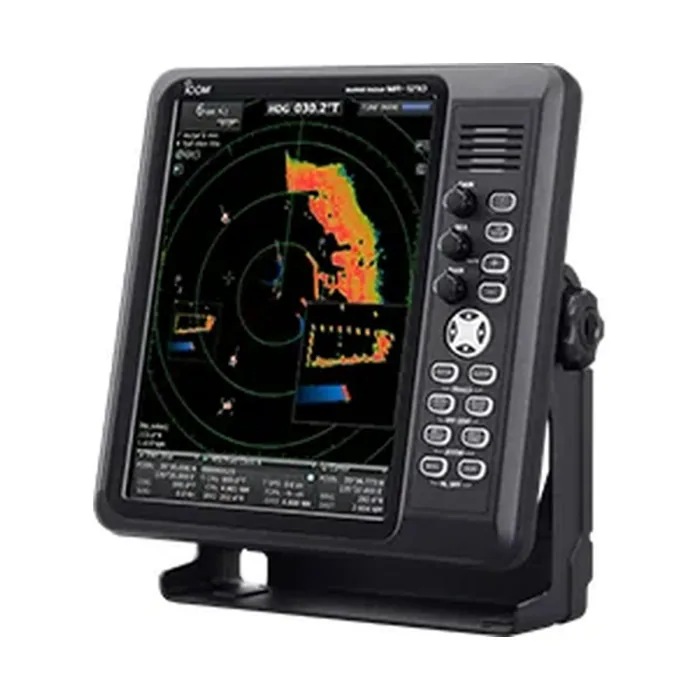

IcomMarineMR-1210RII, MR-1210TII
