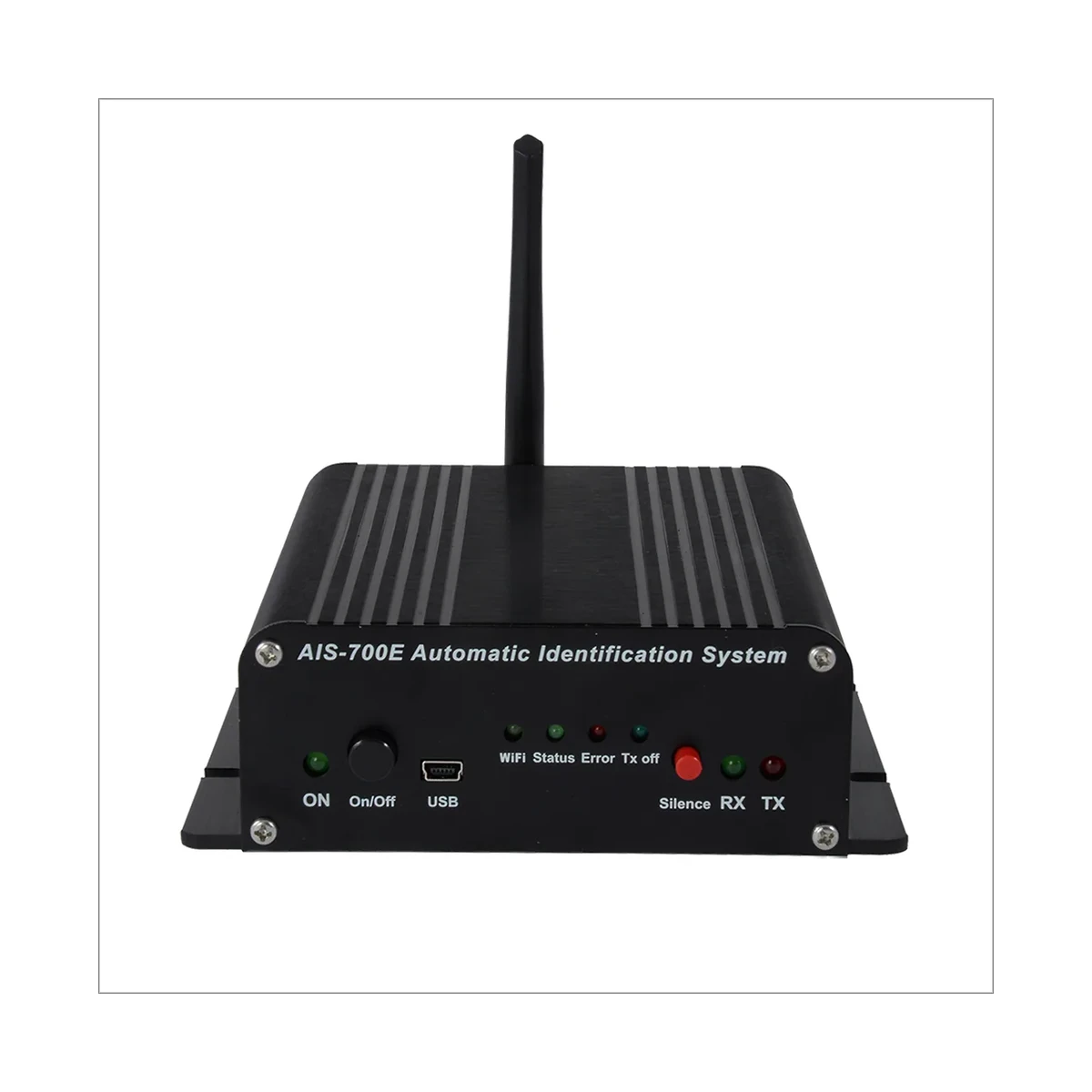

A dual-channel AIS transceiver operating on both marine AIS channels with 2 W output power and a wide 9 to 40 V DC supply range.
Technical
| AIS Channel 1 | CH 87B (161.975 MHz) |
|---|---|
| AIS Channel 2 | CH 88B (162.025 MHz) |
| Channel Bandwidth | 25 KHz |
| Data Rate | 9600 bps (GMSK / FM) |
| Tx Output Power | 2 Watt |
| Rx Sensitivity | < -107dBm @20% PER |
| Supply Voltage | 9V ~ 40V DC |
| Size | 140 mm x 131.4 mm x 46 mm |
| Weight | 600g |
| Operating Temperature | -15°C~60°C |
| Storage Temperature | -20°C~70°C |
Overview
The AIS-700E is a dual-channel AIS unit covering both marine AIS channels, CH 87B at 161.975 MHz and CH 88B at 162.025 MHz, with 25 kHz channel bandwidth and a 9600 bps GMSK/FM data rate. It transmits at 2 W output power with a receive sensitivity better than minus 107 dBm at 20% PER, and accepts a wide 9 to 40 V DC supply. It measures 140 x 131.4 x 46 mm, weighs 600 g, and is rated for operation from minus 15 to 60 degrees C.
Questions
It operates on CH 87B (161.975 MHz) and CH 88B (162.025 MHz), with 25 kHz channel bandwidth.
It transmits at 2 watts, with a data rate of 9600 bps using GMSK/FM.
It accepts 9V to 40V DC.
It operates across -15C to +60C.
