Icom
IC-R15

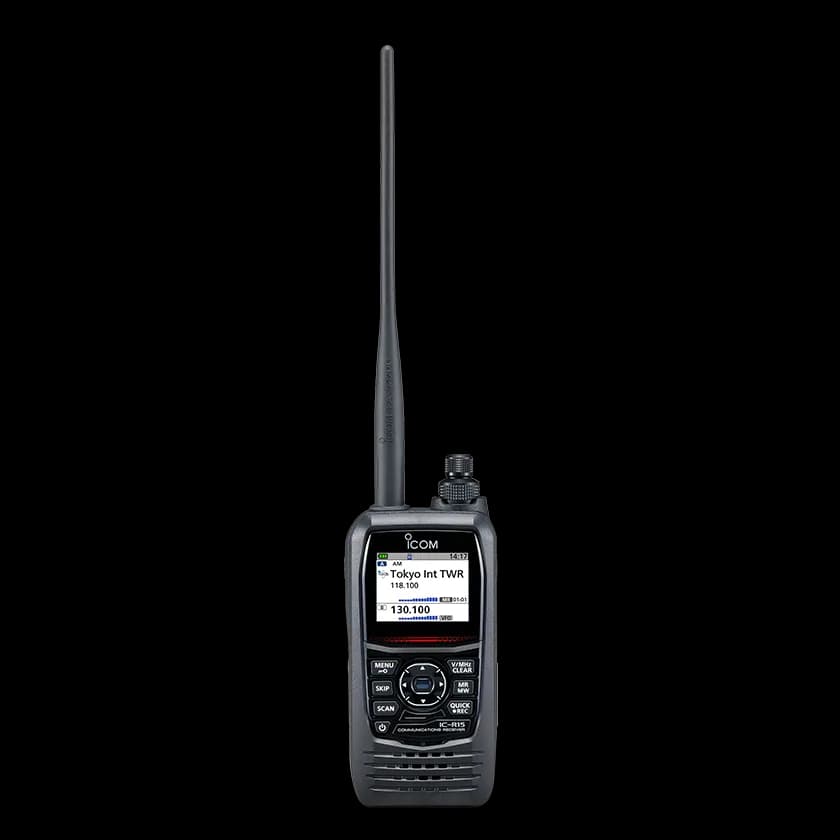

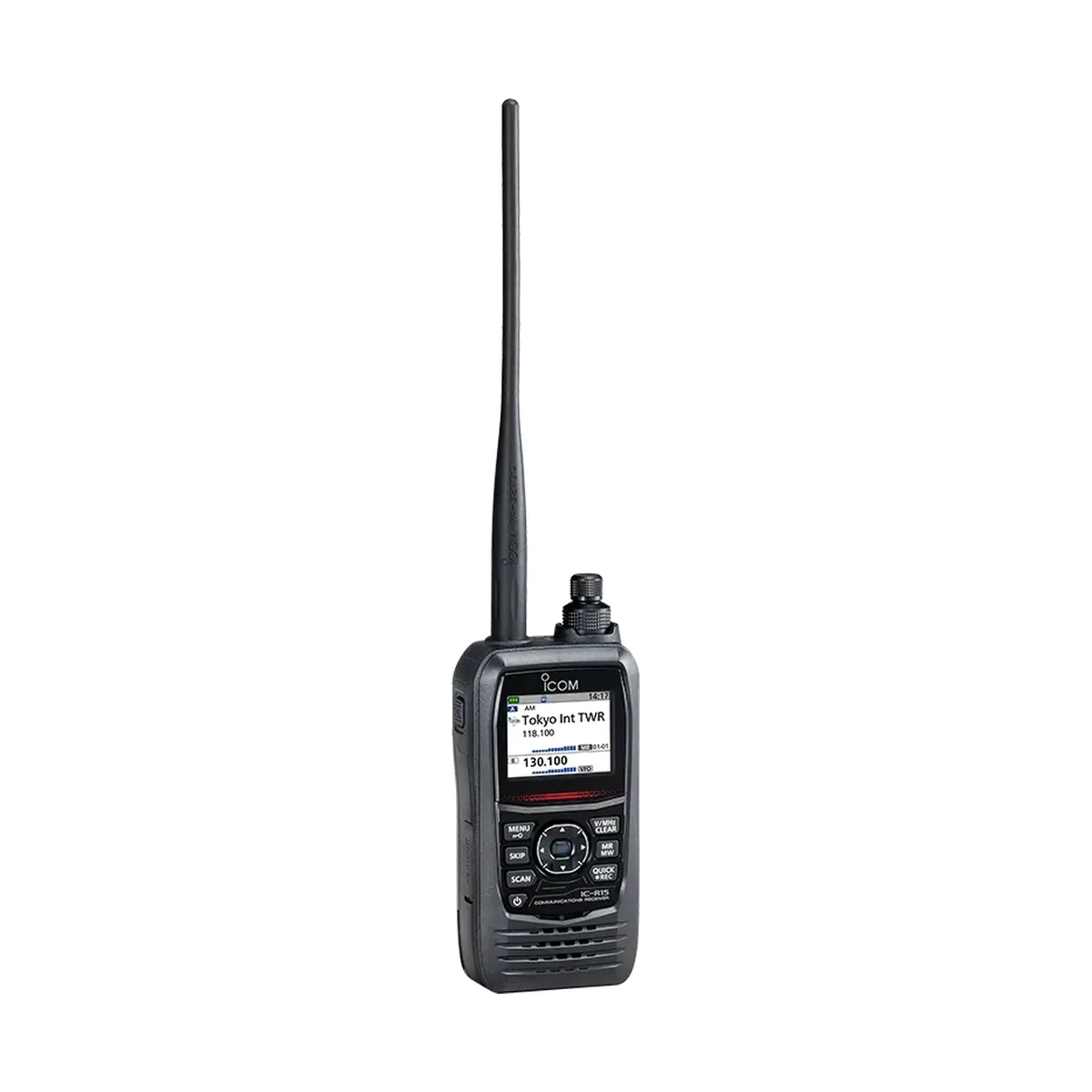

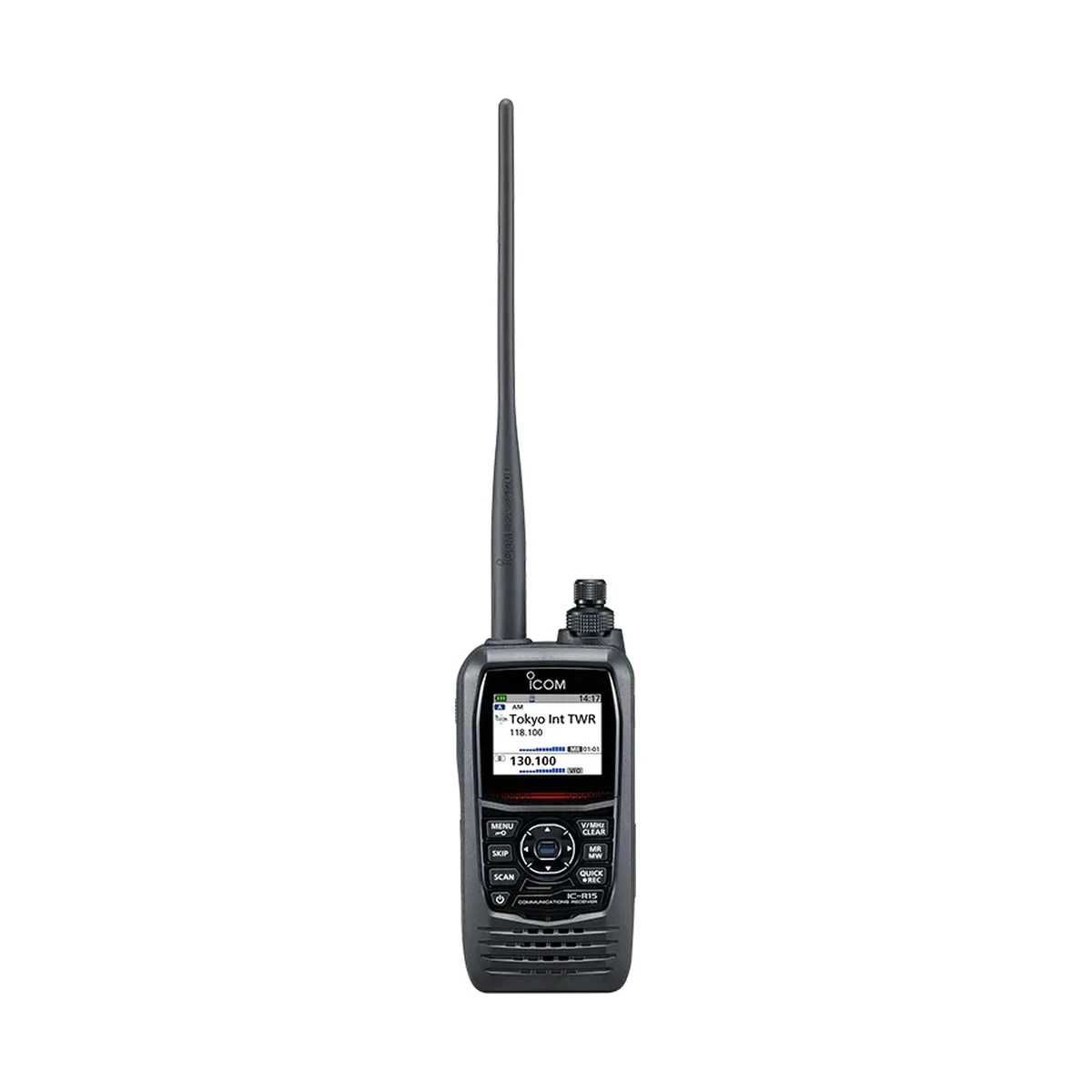

IC-R15 — handheld from Icom. Current handheld wideband communications receiver, 108-500MHz, AM/FM/WFM, dual-band simultaneous receive with Bluetooth. icomjapan.com/lineup/products/IC-R15/
- Brand
- Icom
- Category
- Receivers
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Frequency Coverage (A Band / B Band) | 108.000 ~ 500.000 MHz |
|---|---|
| BC BAND (USA) | 88.000 ~ 108.000 MHz |
| BC BAND (EUR) | 76.000 ~ 108.000 MHz |
| Mode | AM, FM, WFM (F3E, A3E) |
| Antenna impedance | 50 Ω (SMA) |
| Number of memory channels | 2000 regular, 200 auto, 25 scan edges, 100 skip channels |
| Frequency stability | Less than ±2.5 ppm @ 25°C (-20°C ~ 60°C) |
| Tuning steps | 5/6.25/8.33/10/12.5/15/20/25/30/50/100/125/200 kHz |
| Battery requirement | 3.6 V DC (BP-287) |
| Operation time | 10 hours (dual display, continuous A band, standby B band) |
| External power | 5.0 V DC ±5% (USB charging) |
| Current drain @ 3.6V | 380 mA typical (rated audio); 150 mA (standby); 80 mA (power save) |
| Dimensions | 58 x 116 x 33.8 mm |
| Weight | 260 g with accessories; 150 g without |
| Usable temperature | -20°C~60°C |
| Receiving system | Double conversion superheterodyne |
| Intermediate frequency (A/B Band) | 58.050 MHz/450 kHz (1st IF/2nd IF) |
| AM Sensitivity (10dB S/N, 108-142 MHz) | <0 dBμ |
| FM Sensitivity (12dB SINAD, 108-249.995 MHz) | <-8 dBμ |
| WFM Sensitivity (76-108 MHz) | <0 dBμ |
| Selectivity (AM/FM) | >50 dB |
| Selectivity (WFM) | >35 dB |
| Audio output (internal speaker) | >400 mW @ 8Ω, 10% distortion |
| Audio output (external speaker) | >400 mW @ 8Ω, 10% distortion |
Overview
About this product
IC-R15 — handheld from Icom. Current handheld wideband communications receiver, 108-500MHz, AM/FM/WFM, dual-band simultaneous receive with Bluetooth. icomjapan.com/lineup/products/IC-R15/
Related
You may also need

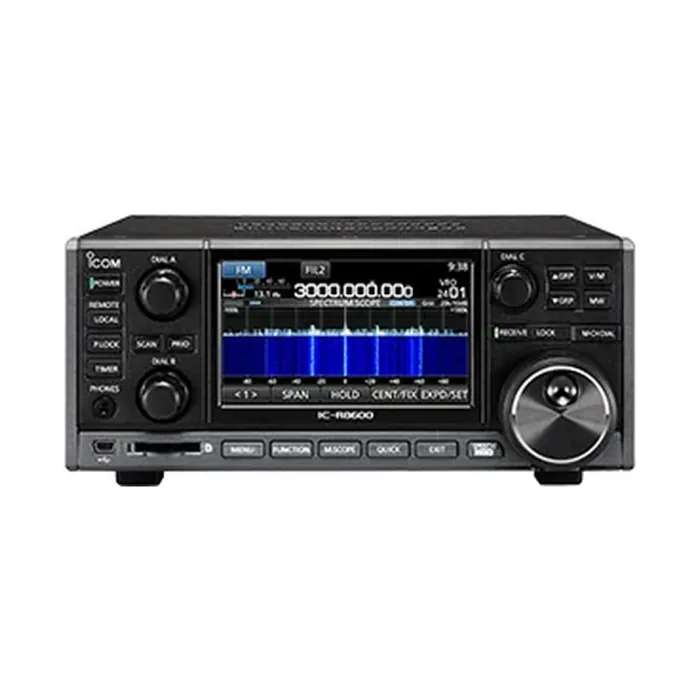

IcomReceiversIC-R8600
