Icom

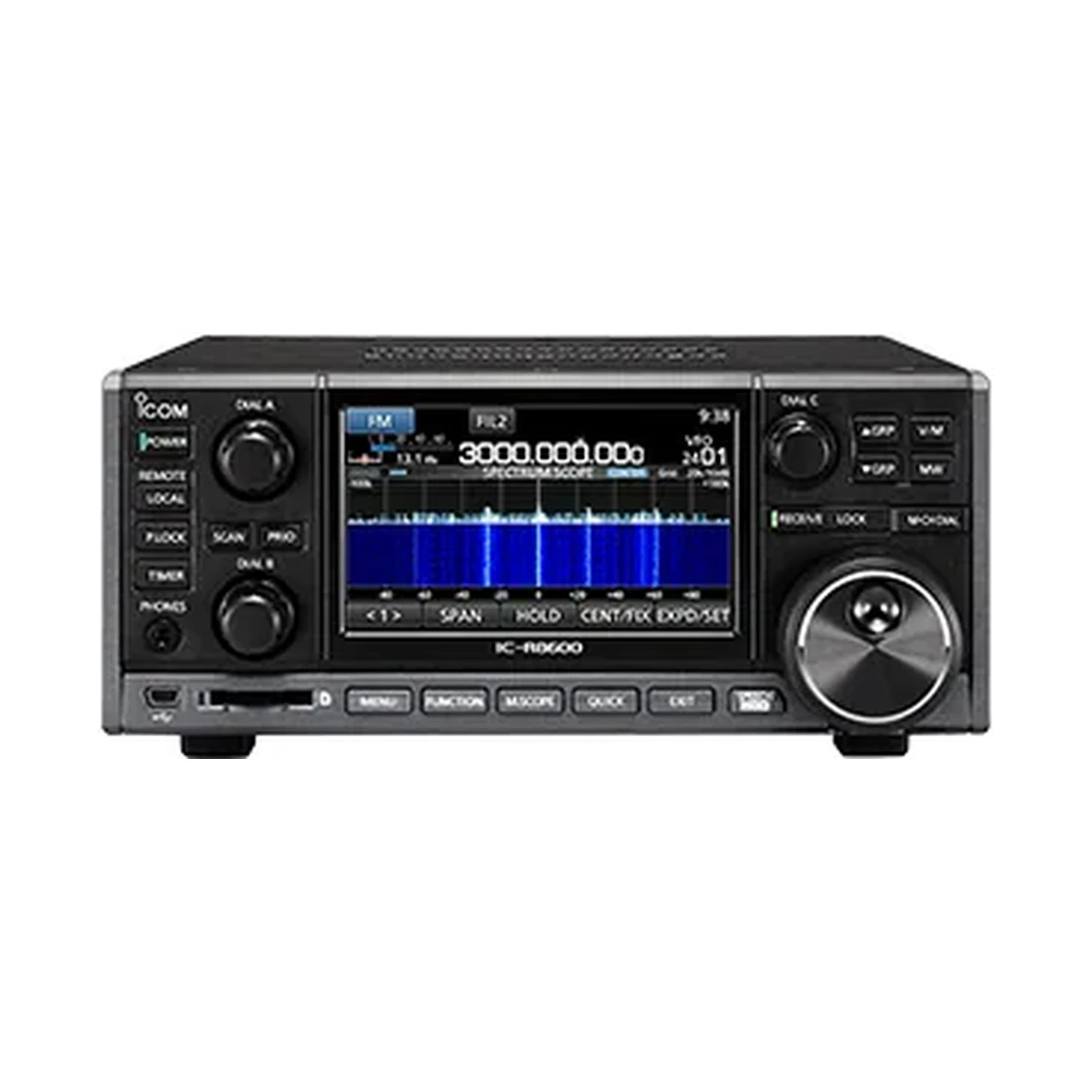

IC-R8600
Icom IC-R8600 wideband communications receiver covering 10kHz to 3GHz with USB/LSB/CW/AM/FM/WFM and multi-mode digital demodulation.
- Brand
- Icom
- Category
- Receivers
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Frequency coverage (USA) | 0.010000–821.999999MHz, 851.000000–866.999999MHz, 896.000000–3000.000000MHz |
|---|---|
| Frequency coverage (EXP) | 0.010000–3000.000000MHz |
| Antenna connector ANT 1 | Type-N (50Ω) |
| Antenna connector ANT 2 | PL-259 (50Ω) |
| Antenna connector ANT 3 | RCA (500Ω) |
| Frequency stability | Less than ±0.5ppm (at 25°C after warm up) |
| Mode | USB, LSB, CW, FSK, AM, FM, WFM, Digital (D-STAR, P25 Phase 1, NXDN, dPMR, DCR) |
| Number of channels | 2000 regular with 100 groups, 200 auto memory write, 100 skip and 100 scan edge channels |
| Scan types | Programmed, memory, selected memory, selected mode, auto memory write, priority scan and Δf scan |
| Power supply requirement | 13.8V DC ±15% |
| Stand-by current drain | 1.8A |
| Maximum audio current drain | 2.0A |
| Operating temperature range | −10°C to +60°C |
| Frequency resolution | 1Hz |
| Dimensions | 220 × 90 × 230mm |
| Weight | 4.3kg |
| Receiver system (0.010–29.999MHz) | Direct sampling |
| Receiver system (30.000–499.999MHz) | Double superheterodyne (IF: 778.7MHz, 46.35MHz) |
| Receiver system (500.000–1099.999MHz) | Double superheterodyne (IF: 278.7MHz, 46.35MHz) |
| Receiver system (1100.000–1499.999MHz) | Triple superheterodyne (IF: 900–500.000001MHz, 278.7MHz, 46.35MHz) |
| Receiver system (1500.000–3000.000MHz) | Triple superheterodyne (IF: 1000–500MHz, 278.7MHz, 46.35MHz) |
| Audio output power | More than 2.0W (8Ω load, 10% distortion) |
Overview
About this product
The IC-R8600 is a wideband communications receiver covering 10kHz to 3GHz (EXP version) with direct sampling on the HF bands and double or triple superheterodyne conversion at higher frequencies for consistent performance across the range. It demodulates USB, LSB, CW, FSK, AM, FM, WFM and digital modes including D-STAR, P25 Phase 1, NXDN, dPMR and DCR, and stores 2000 regular memory channels across 100 groups plus dedicated auto memory write, skip and scan edge channels. Three antenna connectors (Type-N, PL-259 and RCA) support different frequency segments, and the receiver draws 1.8A on standby from a 13.8V DC supply, weighing 4.3kg in a 220 x 90 x 230mm case.
Questions
Frequently asked questions
What frequency range does the Icom IC-R8600 receiver cover?
The EXP version covers a continuous 0.01-3000 MHz. The USA version covers 0.01-821.999999 MHz, 851-866.999999 MHz and 896-3000 MHz.
What modes can the IC-R8600 receive?
It receives USB, LSB, CW, FSK, AM, FM and WFM, plus the digital modes D-STAR, P25 Phase 1, NXDN, dPMR and DCR.
How many memory channels does the IC-R8600 have?
It has 2000 regular memory channels organised into 100 groups, plus 200 auto memory write, 100 skip and 100 scan edge channels.
What is the operating temperature range of the IC-R8600?
The IC-R8600 is rated to operate from -10 degrees C to +60 degrees C.
