Icom
IC-R6
A wideband handheld receiver covering 0.1-1309.995 MHz in AM/FM/WFM with 1550 memory channels, running on two AA cells.
- Brand
- Icom
- Category
- Receivers
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Frequency coverage | 0.100–1309.995MHz (varies by version) |
|---|---|
| Mode | AM, FM, WFM |
| Frequency stability | ±1.0ppm (at 25°C) |
| Current drain (Ext. SP, backlight off) | 130mA typ. |
| Battery pack or cells | 2×R6 (AA) size Ni-MH or alkaline cells |
| External power supply requirement | 4.5V DC rated (4.5 - 6.3V with BC-196SA/SD, CP-18A/E) |
| Antenna impedance | 50Ω (SMA) |
| Number of memory channels | 1550 (1300 regular, 200 auto memory write and 50 scan edges) |
| Dimensions (W×H×D) | 58×86×29.8 mm; 2.28×3.39×1.17 in |
| Weight | 200g; 7.1oz |
| Selectivity AM/FM | More than 12kHz/–9dB, Less than 30kHz/–60dB |
| Selectivity WFM | More than 150kHz/–6dB |
| AF power (at 10% distortion) | More than 150mW (internal speaker, 16Ω load); 80mW typ. (external speaker, 8Ω load) |
| External speaker connector | 3-conductor 3.5 (d) mm (1⁄8″)/8Ω |
| Ingress Protection | IPX2 (Drip resistant) |
Overview
About this product

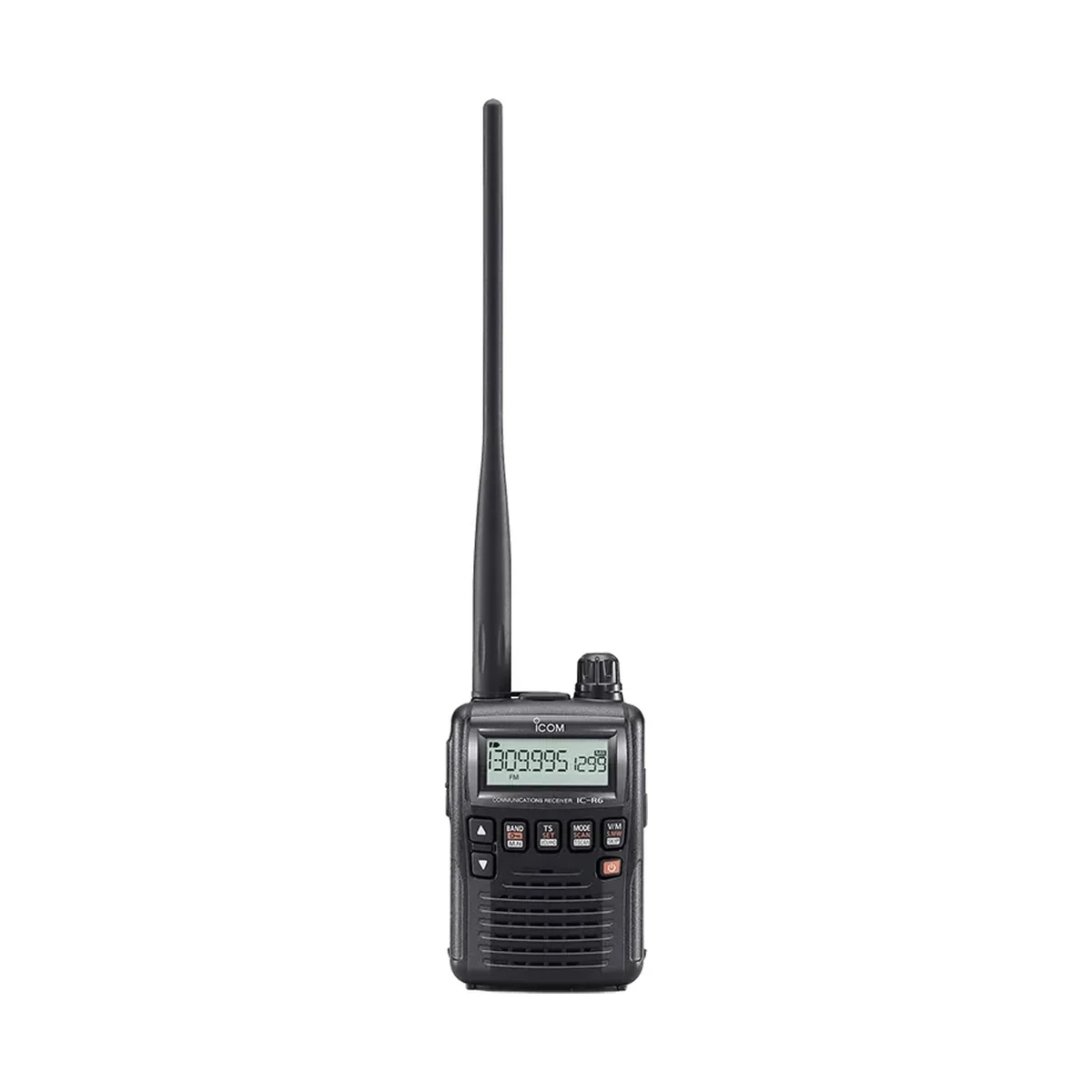

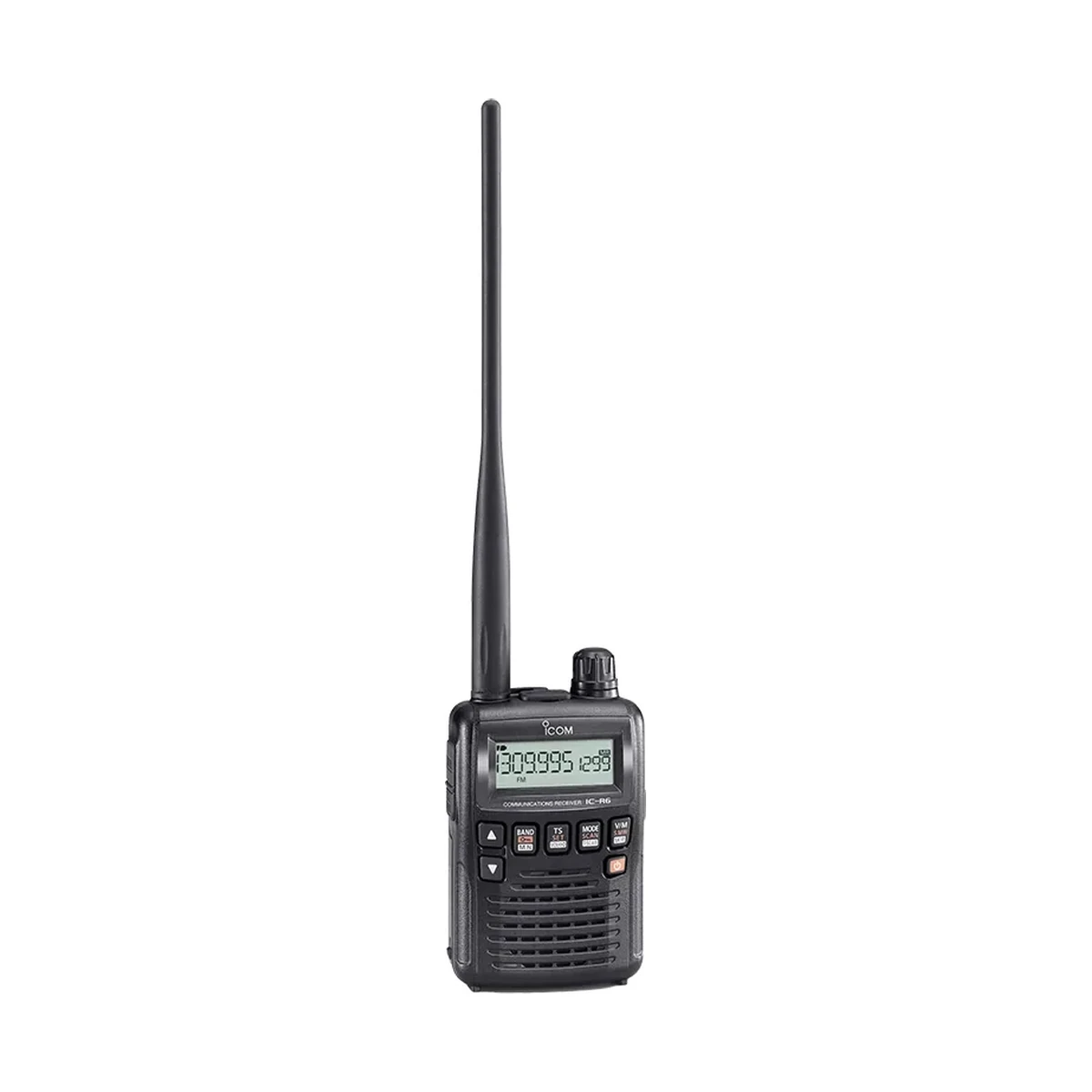

The IC-R6 is a wideband handheld communications receiver covering 0.100 to 1309.995 MHz in AM, FM, and WFM modes, with 1550 memory channels made up of 1300 regular channels, 200 auto-write channels, and 50 scan edges. It runs on two AA-size Ni-MH or alkaline cells, weighs 200 g, and measures 58 x 86 x 29.8 mm, with an IPX2 drip-resistant rating for light outdoor use. Audio output reaches more than 150 mW through its internal speaker at 10% distortion.
Questions
Frequently asked questions
What frequency range does the IC-R6 scanner receive?
The IC-R6 receives from 0.100 to 1309.995 MHz (coverage varies by version), across AM, FM and WFM modes.
How many memory channels does the IC-R6 have?
The IC-R6 has 1550 memory channels: 1300 regular channels, 200 auto memory write channels and 50 scan edges.
What batteries does the IC-R6 use?
The IC-R6 runs on 2 x AA (R6) size Ni-MH or alkaline cells.
Is the IC-R6 water resistant?
The IC-R6 carries an IPX2 rating, meaning it is drip resistant.
