Icom

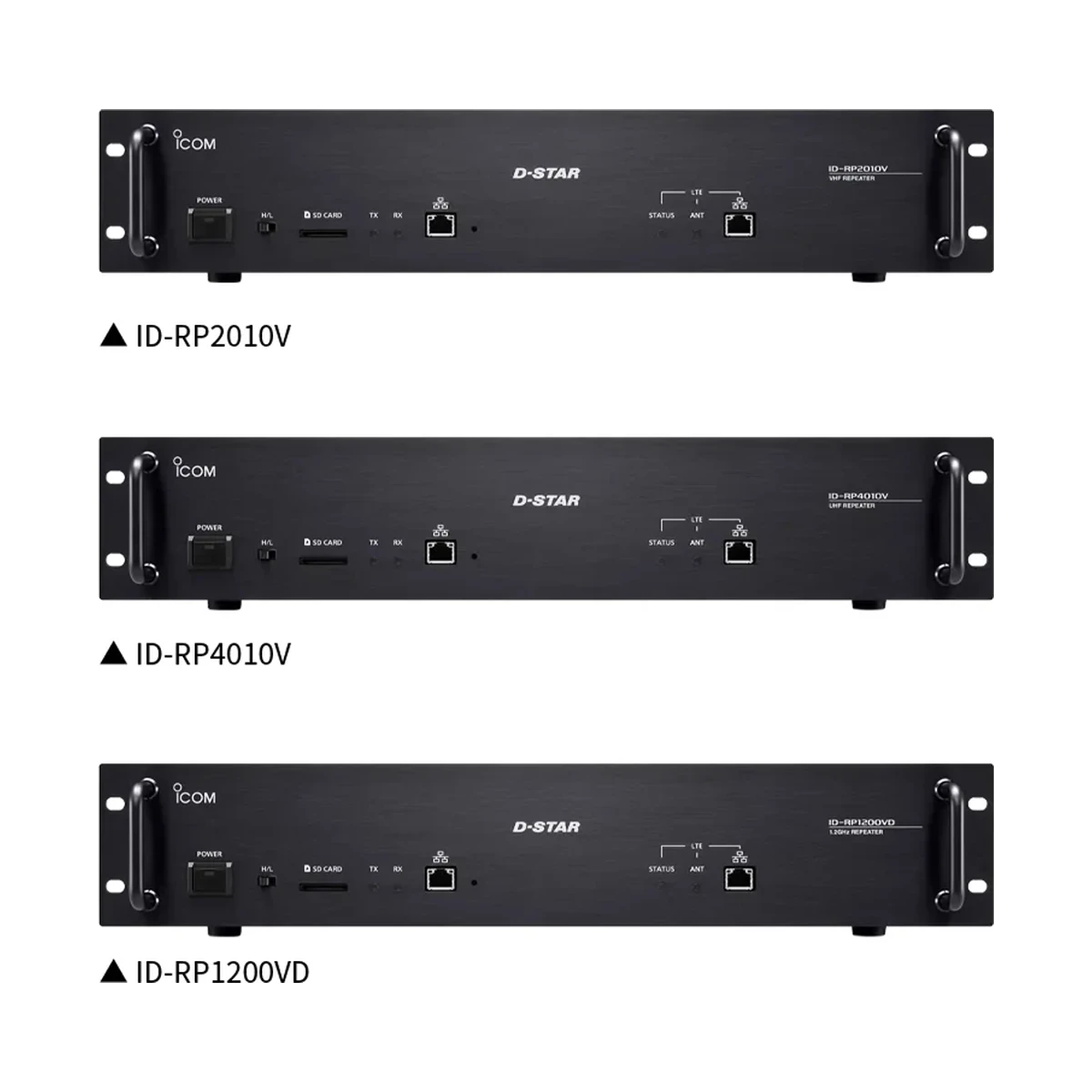

ID-RP1200VD
A 1.2 GHz D-STAR repeater for 1240-1300 MHz supporting high-speed DD data transfer up to 128 kbps alongside DV digital voice.
- Brand
- Icom
- Category
- Amateur Radio
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Frequency range (USA, TX/RX) | 1240–1300 MHz |
|---|---|
| Type of emission | F3E, F1D, F7W, F2A (ID transmission) |
| Frequency stability | ±0.5 ppm or less (–10 °C to +50 °C) |
| Transfer rate | DV: 4.8 kbps; DD: 128 kbps |
| Antenna impedance | 50 Ω |
| Power supply | 13.8 V DC ±15% |
| Current drain TX | Less than 5.0 A (High), 3.0 A (Low) |
| Current drain RX | Less than 1.8 A |
| Operating temperature | –10 °C to +50 °C |
| Dimensions | 482 × 88 × 275 mm |
| Weight | 6 kg |
| Output power | 10 W (High), 1 W (Low) |
| DV modulation | Digital GMSK |
| FM modulation | Digital Reactance modulation |
| DV occupied bandwidth | Less than 6 kHz |
| DD occupied bandwidth | Less than 150 kHz |
| Spurious emissions | Less than –53 dB |
| Receiver system | Down Conversion IF Sampling |
| Intermediate frequencies | 311–371 MHz |
| DV sensitivity | Less than –13 dBμV (0.22 μV) |
| DD sensitivity | Less than 4 dBμV (1.59 μV) |
| FM sensitivity | Less than –15 dBμV (0.18 μV) |
| Audio output power | More than 2.0 W |
Overview
About this product
The ID-RP1200VD is a 1.2 GHz D-STAR repeater covering 1240-1300 MHz, supporting DV digital voice at 4.8 kbps and high-speed DD data transfer at up to 128 kbps within an occupied bandwidth of less than 150 kHz. Output power is 10 W on high and 1 W on low, drawing up to 5.0 A on transmit from a 13.8 V DC supply, with a down-conversion IF sampling receiver and DV sensitivity below -13 dBμV. It weighs 6 kg, measures 482 x 88 x 275 mm, and is rated from -10°C to +50°C.
Questions
Frequently asked questions
What output power does the ID-RP1200VD repeater deliver?
The ID-RP1200VD delivers 10 W on High and 1 W on Low.
What frequency range does the ID-RP1200VD cover?
The ID-RP1200VD covers 1240-1300 MHz (USA version).
Does the ID-RP1200VD support high-speed data alongside D-STAR voice?
Yes, it supports DV digital voice at 4.8 kbps and DD high-speed data at 128 kbps.
How much does the ID-RP1200VD weigh?
The ID-RP1200VD weighs 6 kg and measures 482 x 88 x 275 mm.
