Icom

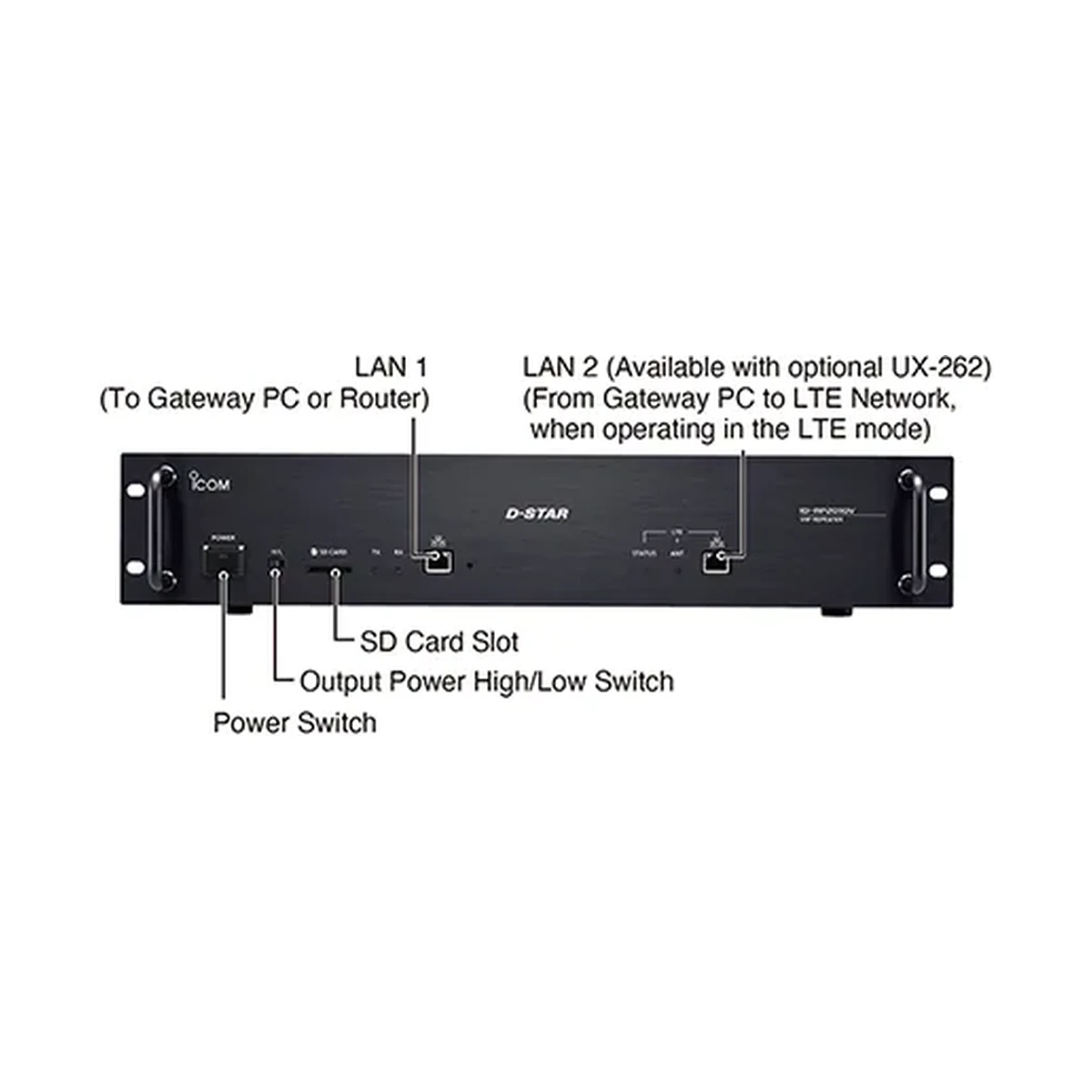

ID-RP2010V
A VHF D-STAR repeater for 144-148 MHz with 25 W high-power output and DV/FM digital-analog operation.
- Brand
- Icom
- Category
- Amateur Radio
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Frequency range (USA, TX/RX) | 144–148 MHz |
|---|---|
| Type of emission | F3E, F7W, F2A (ID transmission) |
| Frequency stability | ±0.5 ppm or less (–10 °C to +50 °C) |
| Transfer rate | DV: 4.8 kbps |
| Antenna impedance | 50 Ω |
| Power supply | 13.8 V DC ±15% |
| Current drain TX | Less than 9.0 A (High), 4.0 A (Low) |
| Current drain RX | Less than 1.8 A |
| Operating temperature | –10 °C to +50 °C |
| Dimensions | 482 × 88 × 275 mm (19.0 × 3.5 × 10.8 in) |
| Weight | 6 kg (13.2 lb) |
| Output power | 25 W (High), 2.5 W (Low) |
| DV modulation | Digital GMSK |
| FM modulation | Digital Reactance modulation |
| DV occupied bandwidth | Less than 6 kHz |
| Maximum frequency deviation (FM Wide/Narrow) | ±5.0 kHz/±2.5 kHz |
| Spurious emissions | Less than –63 dB |
| Receiver system | RF Direct Sampling |
| DV sensitivity (1% BER) | Less than –13 dBμV (0.22 μV) |
| FM sensitivity (12 dB SINAD) | Less than –15 dBμV (0.18 μV) |
| Audio output power | More than 2.0 W (at 10% distortion, 8 Ω load) |
Overview
About this product
The ID-RP2010V is a D-STAR digital voice repeater covering the 144-148 MHz VHF band, supporting both DV digital voice at 4.8 kbps and FM analog operation with GMSK modulation. It delivers 25 W of output power on high and 2.5 W on low, drawing up to 9.0 A on transmit from a 13.8 V DC supply, with DV sensitivity below -13 dBμV and FM sensitivity below -15 dBμV. Measuring 482 x 88 x 275 mm and weighing 6 kg, it operates across a -10°C to +50°C temperature range.
Questions
Frequently asked questions
What output power does the ID-RP2010V repeater deliver?
The ID-RP2010V delivers 25 W on High and 2.5 W on Low.
What frequency range does the ID-RP2010V cover?
The ID-RP2010V covers 144-148 MHz (USA version).
Does the ID-RP2010V support D-STAR digital voice?
Yes, it supports F3E (analog FM), F7W (digital) and F2A (ID transmission) emission modes, with a D-STAR digital voice transfer rate of 4.8 kbps.
How much does the ID-RP2010V weigh?
The ID-RP2010V weighs 6 kg (13.2 lb) and measures 482 x 88 x 275 mm (19.0 x 3.5 x 10.8 in).
