Alinco

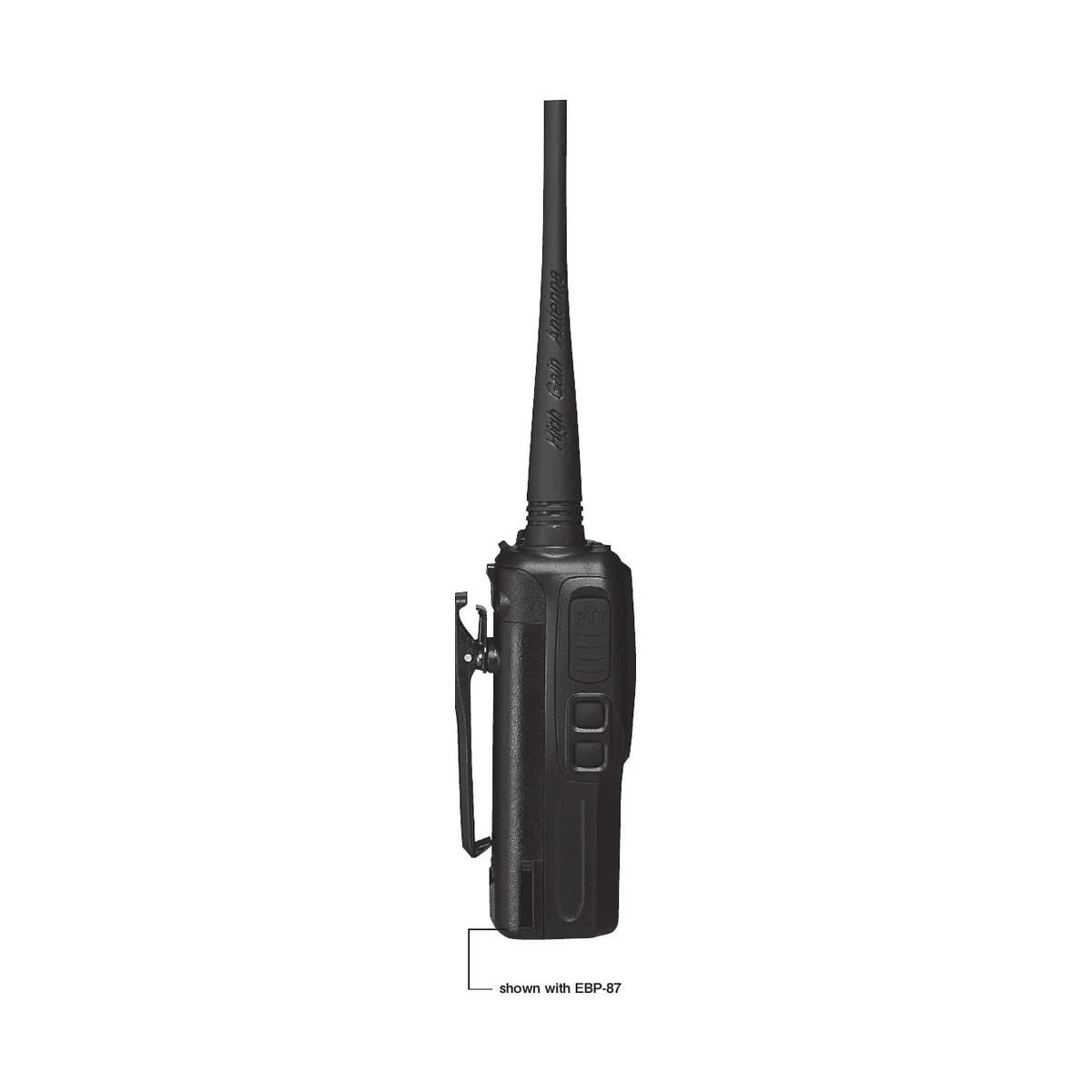

The Alinco DJ-A36E is a 350-390 MHz UHF handheld radio with 128 programmable channels, IP54 dust and splash protection, and MIL-STD-810G shock and vibration compliance.
Technical
| Frequency coverage | 350-390MHz |
|---|---|
| Mode | F3E(16K0F3E / 11K0F3E) |
| Programmable channels | 128 channels |
| Frequency stability | ±2.5ppm |
| Power supply requirement | 7.4V DC±20% (negative ground) |
| Current drain (Approx.) | 1400mA TX / 300mA receive at Max audio output / 70mA squelched |
| Usable temperature range | -20 to +55C (-4 to 131F) |
| Dimensions | 59.0W x 98.0H x 35.0D mm or 2.32W x 3.86H x 1.38D inches (approx., projections not included) |
| Weight | approx. 227g or 8.01oz inclusive of battery pack and antenna |
| Output power | Approx. 5 / 2 / 1W |
| Modulation system | Variable reactance FM |
| Spurious emissions | Less than -36dBm |
| Max. frequency deviation | ±5kHz / ±2.5kHz |
| Receive system | Double conversion superheterodyne |
| Intermediate frequencies | 26.45MHz |
| Sensitivity (12dB SINAD Wide/Narrow) | -12dBμ or better (0.25μV/0.35μV) or better |
| Selectivity | -6dB: Wide 12kHz/Narrow 10kHz or more; -60dB: Wide 30kHz/Narrow 24kHz or less |
| Audio output power | 1000mW (10% distortion) |
| Ingress protection | IP54 |
| Shock/vibration | MIL-STD-810G compliant |
Overview
The Alinco DJ-A36E is a UHF handheld radio covering 350-390 MHz with 128 programmable channels, offering selectable output power of approximately 5W, 2W or 1W. It uses a double-conversion superheterodyne receiver rated at -12dBu or better sensitivity (12dB SINAD), with 1000mW of audio output. Built with an IP54 rating for dust and splash resistance and compliant with MIL-STD-810G for shock and vibration, it runs from a 7.4V DC negative-ground supply and is usable across -20C to +55C, weighing approximately 227g with battery pack and antenna.
Questions
The DJ-A36E covers 350-390 MHz.
It supports 128 programmable channels.
Yes. It carries an IP54 ingress protection rating and complies with MIL-STD-810G for shock and vibration.
It offers approximately 5W, 2W, or 1W output power, selectable.
