Alinco

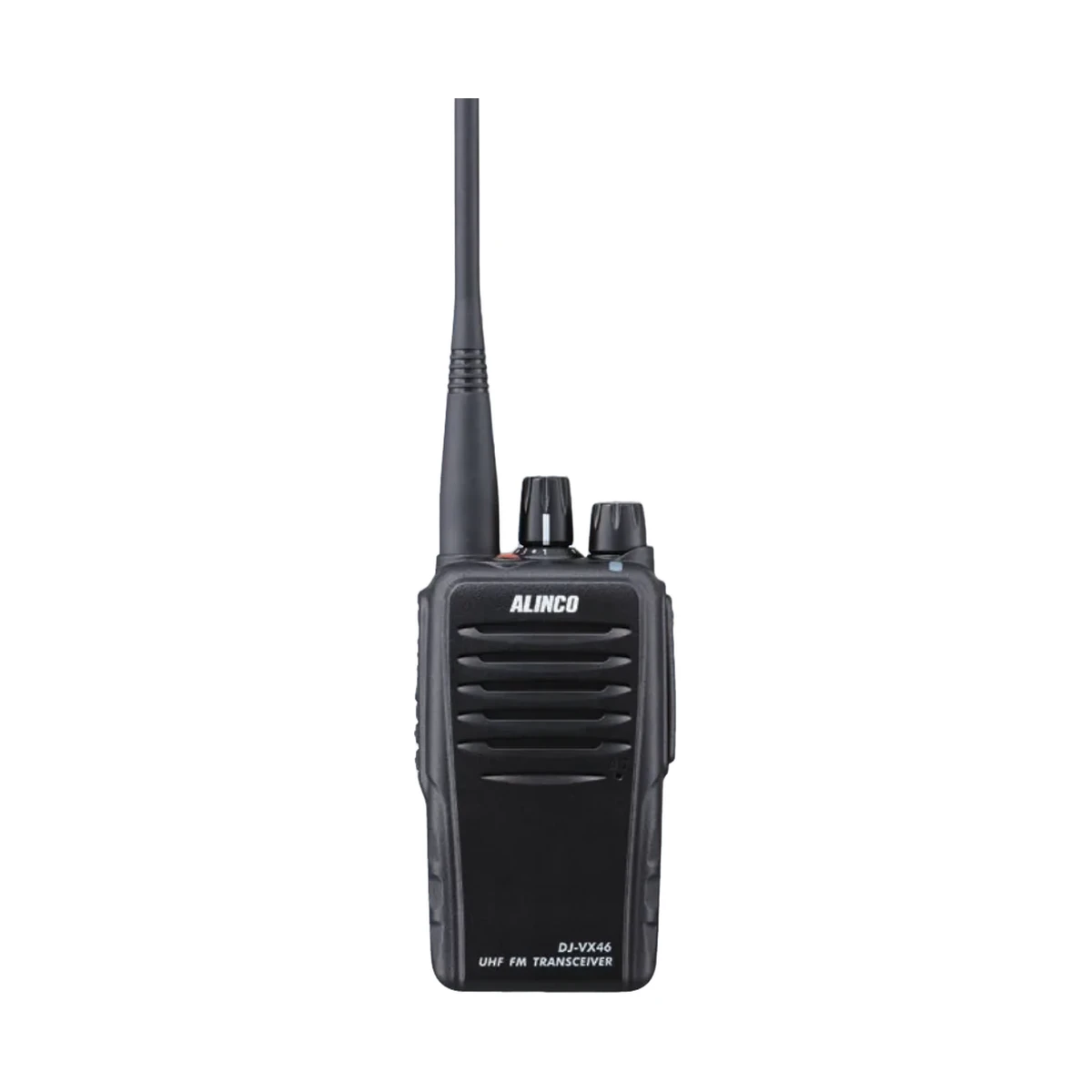

The Alinco DJ-VX46 is a license-free PMR446 handheld radio with 128 memory channels, IP67 waterproofing, and 500mW output power.
Technical
| Frequency coverage | [TX/RX] 16ch PMR446 |
|---|---|
| Mode | 8K50F3E (NFM) |
| Memory channels | 128 channels (16ch x 8 groups) |
| Frequency stability | ±2.5ppm |
| Operating voltage | 7.4V Battery |
| Usable temperature range | -20 to +60C (-4 to 140F) |
| Charging temperature range | +5 to +40C (+41 to 104F) |
| Dimensions | 243 x 59 x 38mm (with battery pack, antenna) |
| Weight | 238g (with battery pack, antenna) |
| Sub audible Tone (CTCSS/DCS) | encoder/decoder |
| Output power | Approx. 500mW |
| Spurious emissions | Less than -36dBm |
| Max. frequency deviation | ±2.5kHz |
| Receive system | Direct conversion |
| Sensitivity (12dB SINAD) | -12dBu |
| Adjacent Channel Selectivity | More than 60dB |
| Intermodulation | More than 55dB |
| Spurious Rejection | More than 70dB |
| Audio output power | Audio Power Output 1000mW/10% |
| Ingress protection | IP67 compatible |
Overview
The Alinco DJ-VX46 is a license-free handheld radio operating on the 16-channel PMR446 band using 8K50F3E (NFM) mode, with 128 memory channels organised as 16 channels across 8 groups and CTCSS/DCS sub-audible tone signaling. Output power is fixed at approximately 500mW, with a direct-conversion receiver rated at -12dBu sensitivity (12dB SINAD) and better than 60dB adjacent channel selectivity. Built to an IP67 rating for water and dust protection, it runs from a 7.4V battery pack, weighs 238g complete with battery and antenna, and is usable across -20C to +60C.
Questions
Yes. It covers the 16-channel PMR446 band using 8K50F3E (NFM) mode.
It supports 128 memory channels, organised as 16 channels across 8 groups.
Yes, it is IP67 compatible for water and dust protection.
It transmits at approximately 500mW.
