Alinco

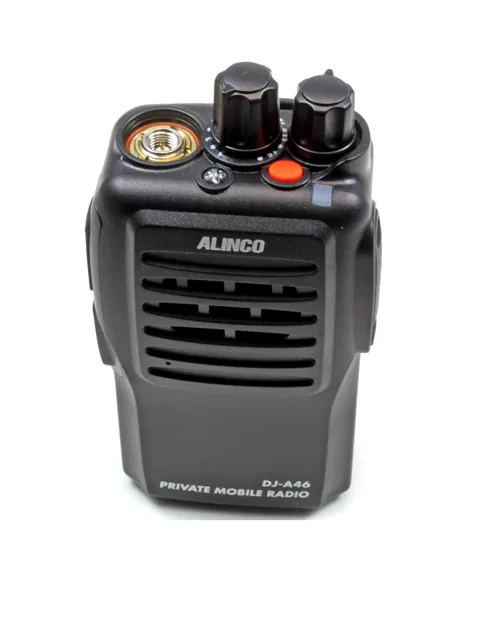

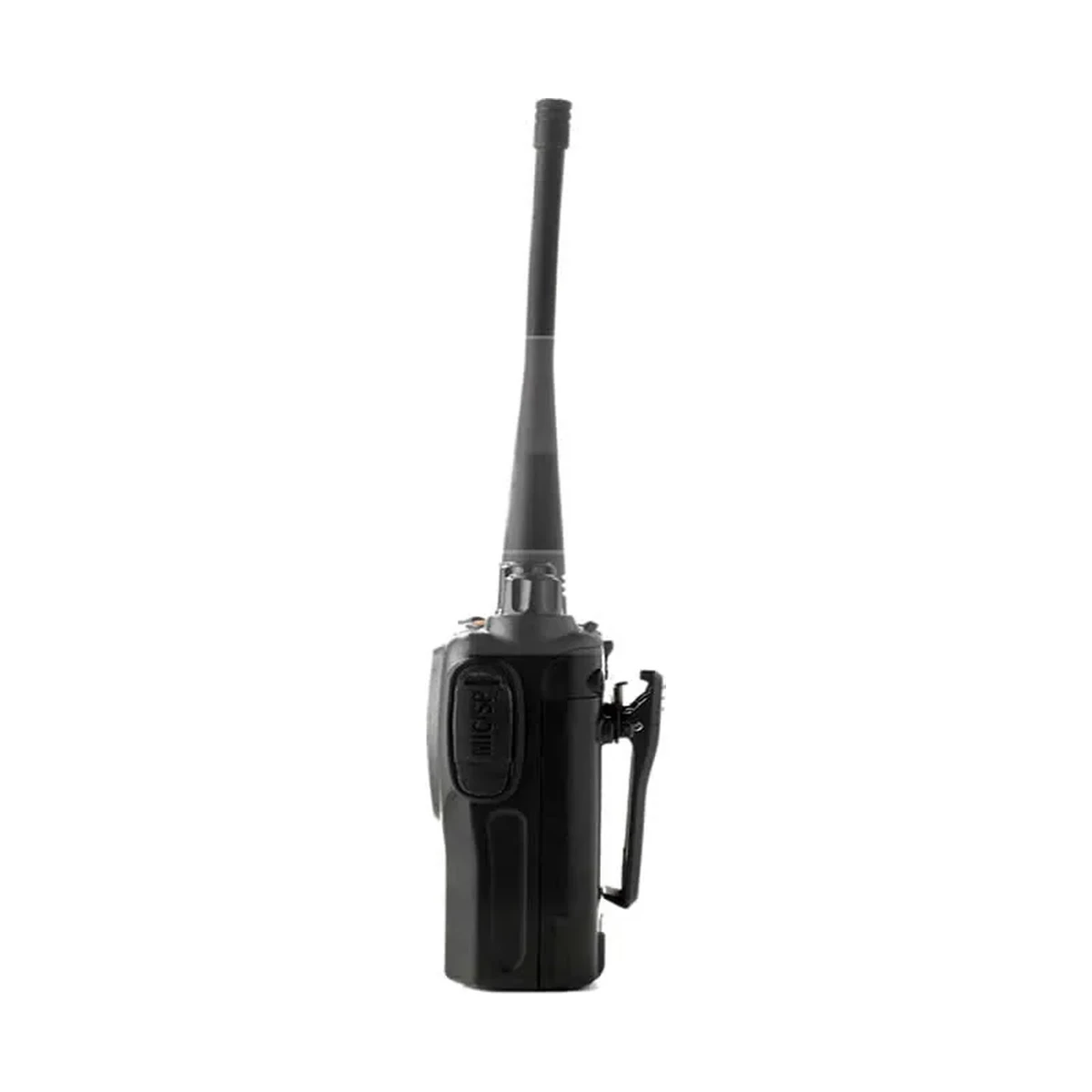

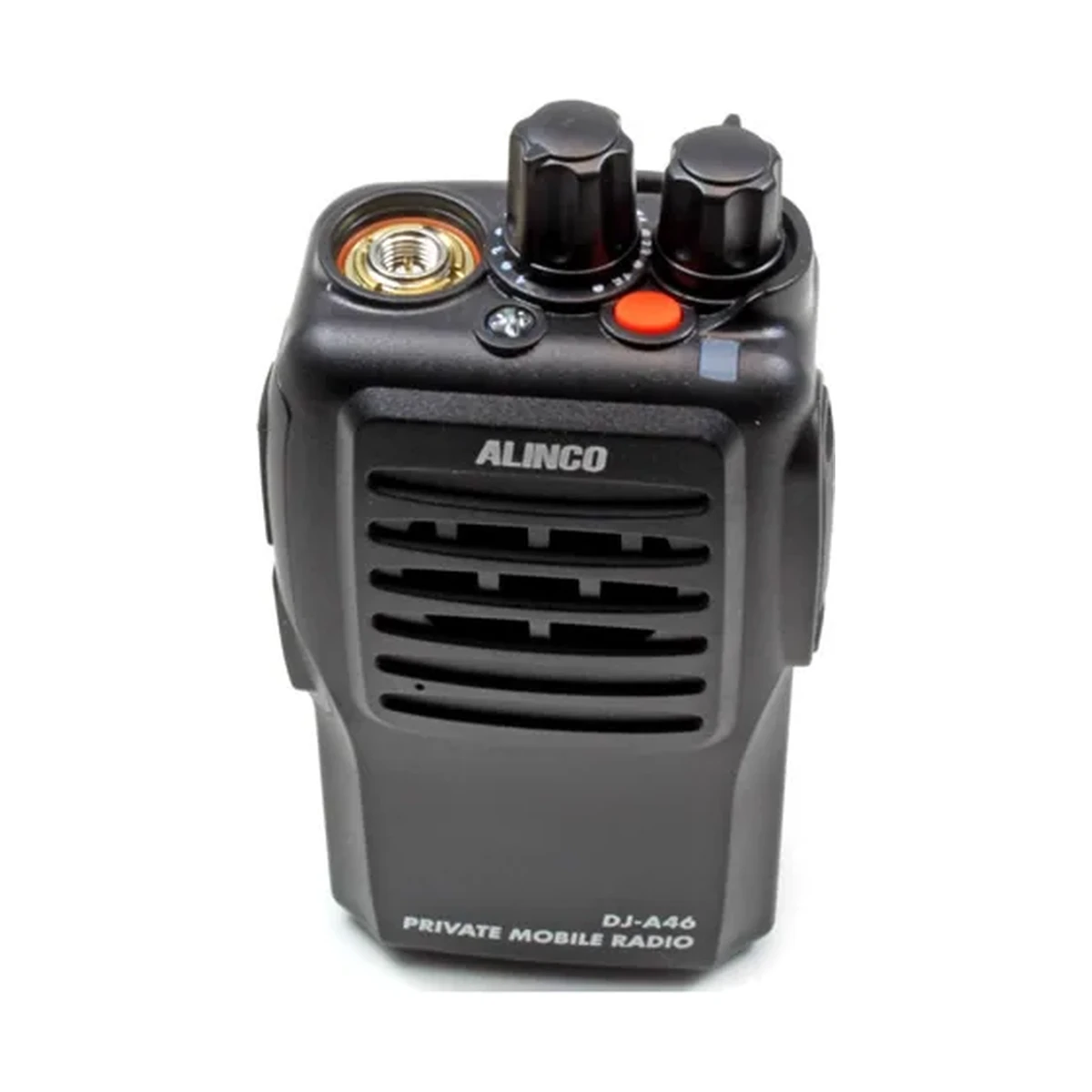

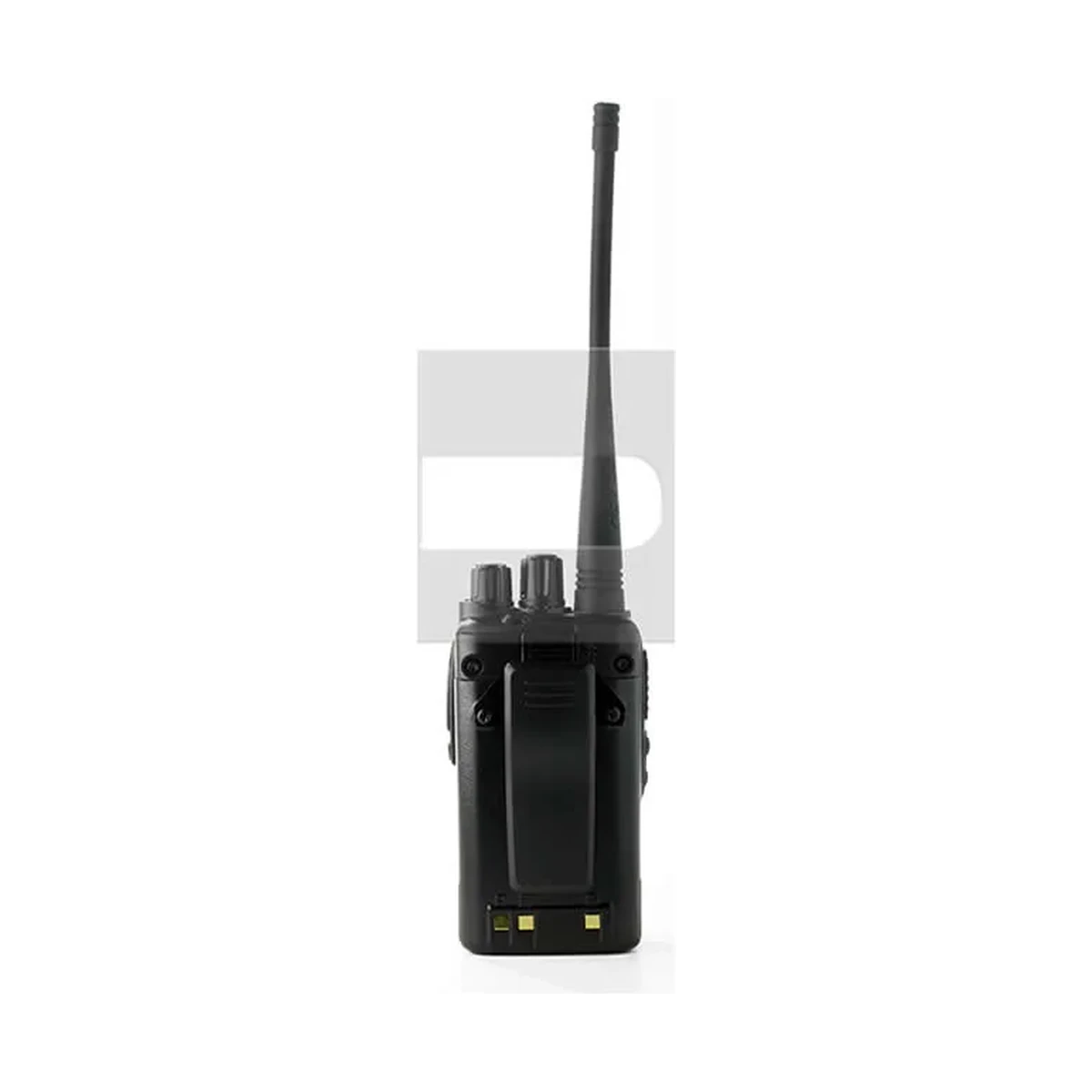

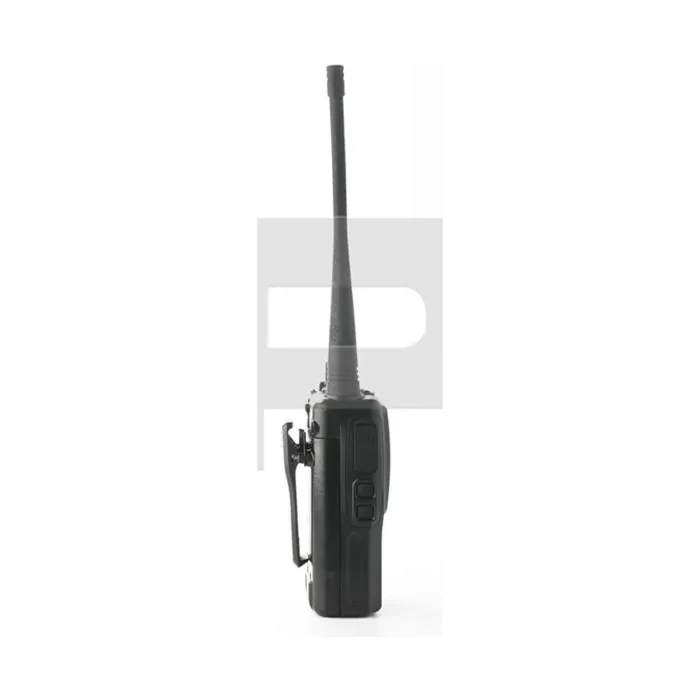

Alinco DJ-A46

Key Features: Channels: 8. Frequency: 446.00625 to 446.09375 MHz Maximum radiated power: 500 mW. Integrated antenna. Lithium-ion battery of 1,500 mAH. CTCSS 50. VOX function. Complies with IP/54 standard. Dimensions: 240 x 56 x 30 mm. Weight: 240 gr. The…

Brand: Alinco
Category: Land Mobile
Price: Quoted per order, with customer-specific discounts
Availability: Enquire for lead time

Technical

Specifications

Frequency coverage	PMR446 / license-free UHF
Mode	F3E
Programmable channels	128 channels (16ch x 8 groups)
Power supply requirement	7.4V DC (negative ground)
Usable temperature range	-20 to +55C (-4 to 131F)
Dimensions	59.0W x 98.0H x 35.0D mm (approx., projections not included)
Weight	approx. 240g inclusive of EBP-87 and antenna
Ingress protection	IP54 compatible
Shock/vibration	MIL-STD-810G compliant

Overview

About this product

A license-free UHF handheld two-way radio from Alinco's DJ-A446/DJ-A46 series, built with a rugged polycarbonate housing rated IP54 for rain and dust resistance and tested to MIL-STD-810G for shock and vibration. It offers 128 programmable memory channels with tone-squelch signaling, an alphanumeric backlit LCD display, and a rechargeable Li-ion battery pack, with microphone and earphone ports plus a built-in FM broadcast radio receiver. Alinco positions it as a compact, pocketable radio suited to work, skiing, camping, and travel use.

Questions

Frequently asked questions

Is the Alinco DJ-A46 license-free to use?

Yes. The DJ-A46 covers the PMR446 license-free UHF band, using F3E mode.

How many channels does the DJ-A46 support?

It supports 128 programmable channels, organised as 16 channels across 8 groups.

Is the DJ-A46 rugged enough for outdoor or industrial use?

Yes. It is IP54 compatible for dust and splash resistance and complies with MIL-STD-810G for shock and vibration.

What operating temperature range is the DJ-A46 rated for?

It is usable across -20C to +55C (-4F to 131F).
