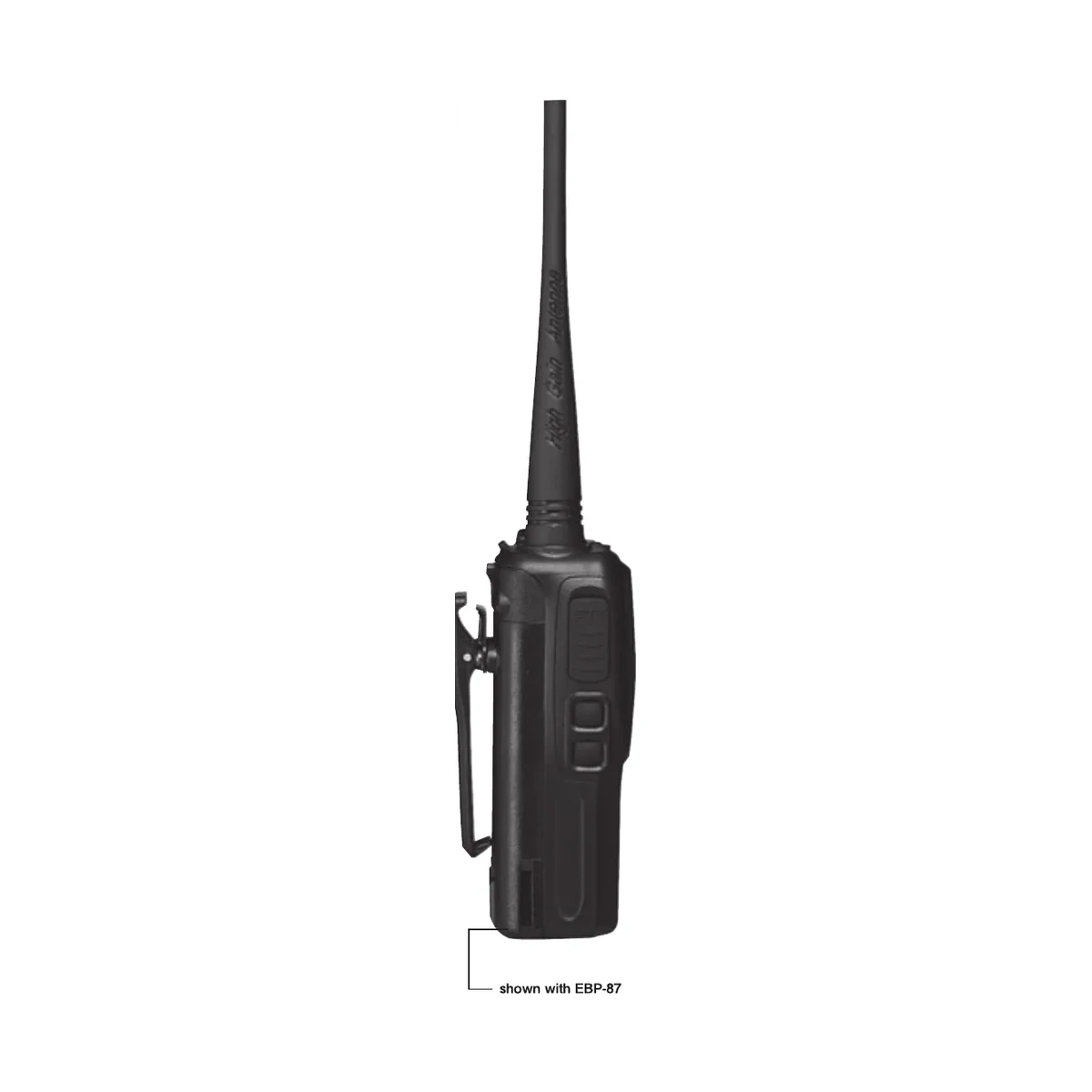

The Alinco DJ-A41E is a 400-470 MHz UHF handheld radio with 128 programmable channels and selectable 5W/2W/0.5W output power.
Technical
| Frequency coverage | [DJ-A41] 400-470MHz |
|---|---|
| Mode | F3E(16K0F3E / 11K0F3E) |
| Programmable channels | 128 channels |
| Frequency stability | ±2.5ppm |
| Power supply requirement | 7.4V DC±20% (negative ground) |
| Current drain (Approx.) | 1400mA TX / 300mA receive at Max audio output / 70mA squelched |
| Usable temperature range | -20 to +55C (-4 to 131F) |
| Dimensions | 59.0W x 98.0H x 35.0D mm or 2.32W x 3.86H x 1.38D inches (approx., projections not included) |
| Antenna length | [A41] 145mm |
| Weight | approx. 227g or 8.01oz inclusive of battery pack and antenna |
| Output power | Approx. 5 / 2 / 0.5W |
| Modulation system | Variable reactance FM |
| Spurious emissions | Less than -36dBm |
| Max. frequency deviation | ±5kHz / ±2.5kHz |
| Receive system | Double conversion superheterodyne |
| Intermediate frequencies | [A41] 26.45MHz |
| Sensitivity (12dB SINAD Wide/Narrow) | -12dBμ or better (0.25μV/0.35μV) or better |
| Selectivity | -6dB: Wide 12kHz/Narrow 10kHz or more; -60dB: Wide 30kHz/Narrow 24kHz or less |
| Audio output power | 1000mW (10% distortion) |
Overview
The Alinco DJ-A41E is a UHF handheld radio covering 400-470 MHz with 128 programmable channels, offering selectable output power of approximately 5W, 2W or 0.5W. It uses a double-conversion superheterodyne receiver rated at -12dBu or better sensitivity (12dB SINAD), with 1000mW of audio output. The radio runs from a 7.4V DC negative-ground supply, is usable across -20C to +55C, and weighs approximately 227g complete with battery pack and antenna.
Questions
The DJ-A41E covers 400-470 MHz.
It supports 128 programmable channels.
It offers approximately 5W, 2W, or 0.5W output power, selectable.
It is usable from -20C to +55C (-4F to 131F).
