Icom
UHF Analog Transceivers Little Radio, Big Sound! Class Leading 1500 mW Audio General Features Enhanced emergency safety with built-in motion/stationary detection sensor 128 channel capacity with eight zones (Simple type and ten-key type) Built-in 2-Tone…
Technical
| Frequency coverage (EUR/EXP/AUS) | 400 ~ 470 MHz |
|---|---|
| Frequency coverage (EXP/AUS variant) | 450 ~ 520 MHz |
| Number of channels (with LCD) | 128 channels / 8 zones |
| Number of channels (without LCD) | 16 channels |
| Type of emission (EUR) | 16K0F3E/14K0F3E/8K50F3E |
| Type of emission (EXP/AUS) | 16K0F3E/8K50F3E |
| Power supply requirement | 7.5 V DC nominal |
| Current drain (Tx, 5 W) | 1.6 A |
| Current drain (Tx, 4 W) | 1.3 A |
| Current drain (Rx, max audio, internal SP) | 500 mA |
| Current drain (Rx, standby) | 70 mA |
| Antenna impedance | 50Ω |
| Operating temperature range (400–470 MHz version) | –30°C to +60°C |
| Operating temperature range (450–520 MHz EXP/AUS version) | –10°C to +60°C |
| Dimensions (W×H×D, with BP-279) | 52.2 × 111.8 × 24.5 mm |
| Dimensions (W×H×D, with BP-280) | 52.2 × 111.8 × 30.3 mm |
| Weight (with BP-279) | 240 g |
| Weight (with BP-280) | 270 g |
| Output power (Hi, L2, L1) | 5 W / 4 W, 2 W, 1 W (selectable by programming) |
| Maximum frequency deviation (W/M/N) | ±5.0 kHz / ±4.0 kHz / ±2.5 kHz |
| Spurious emissions (EXP/AUS) | 1.0 μW |
| Frequency stability | ±2.5 ppm |
| Adjacent channel power (EUR, W/M/N) | 77 dB / 77 dB / 76 dB typ. |
| Audio harmonic distortion (1 kHz, 40% deviation) | 1.0% typ. |
| FM hum and noise (with CCITT, EUR, W/M/N) | 69 dB / 69 dB / 67 dB typ. |
| Sensitivity (12 dB SINAD) | 0.21 μV typ. |
| Sensitivity (20 dB SINAD) | –2.5 dBμV typ. emf |
| Adjacent channel selectivity (EUR, W/M/N) | 73 dB / 73 dB / 71 dB typ. |
| Spurious response rejection | 60 dB min. |
| Intermodulation rejection (EXP/AUS) | 65 dB min. |
| Hum and noise (with CCITT, EUR, W/M/N) | 58 dB / 56 dB / 53 dB typ. |
| AF output power (internal SP, 5% distortion, 8Ω) | 1500 mW typ. |
| AF output power (external SP, single end) | 400 mW typ. |
| AF output power (external SP, BTL) | 1500 mW typ. |
| External speaker connector | 2-conductor 3.5 (d) mm / 8 Ω |
| External microphone connector | 3-conductor 2.5 (d) mm / 2.2 kΩ |
Overview

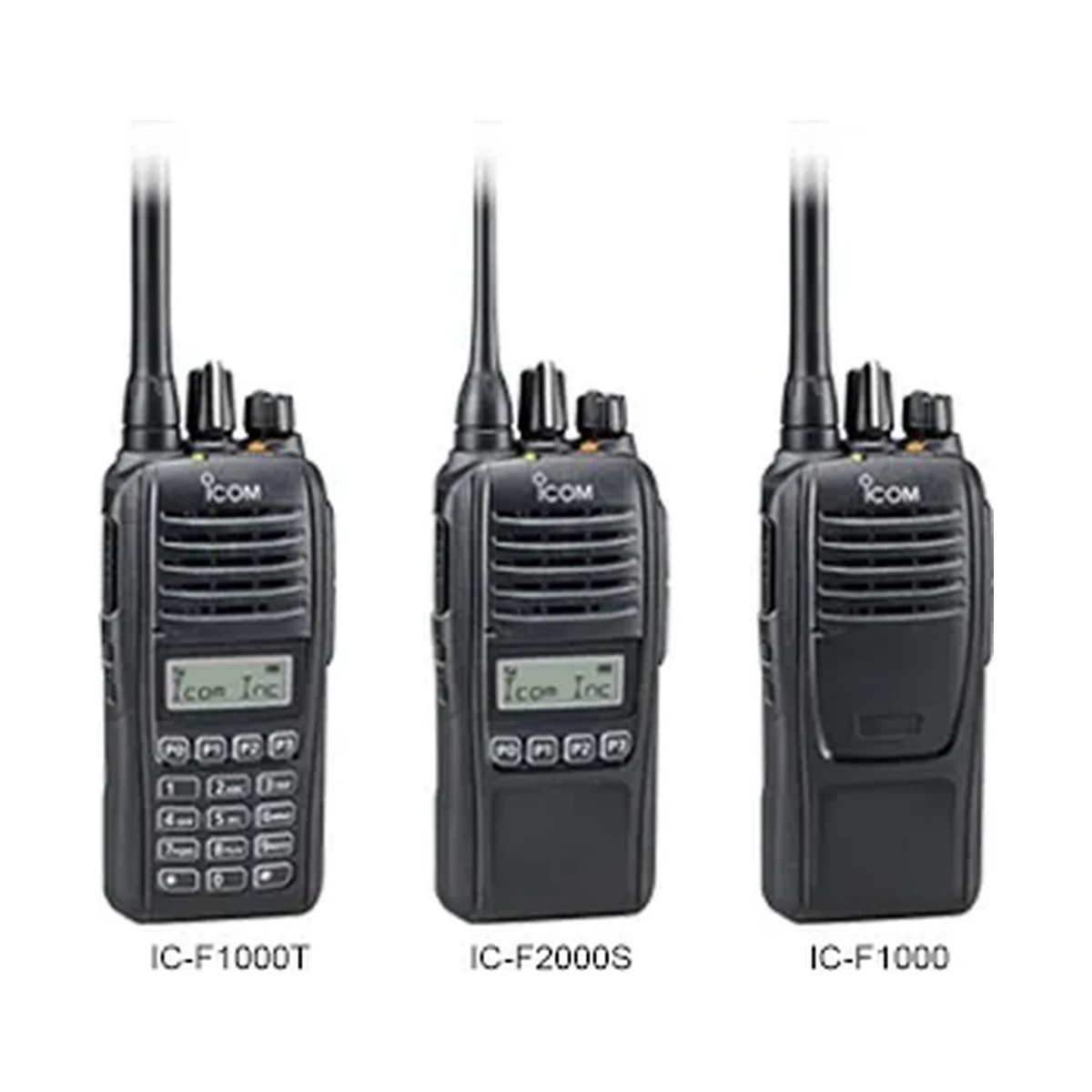

The IC-F1000/F2000 series provides class leading 1500 mW loud and clear audio with Icom custom high power handling capacity speaker. It offers a compact, waterproof durable design and is full of great features such as motion/stationary detection sensor, man down, voice scrambler and voice announcement functions. The radio is ideal for business and industry users who require economical value and reliability in a radio
Questions
The EUR/EXP/AUS version of the IC-F2000 covers 400 to 470 MHz; an EXP/AUS variant covers 450 to 520 MHz.
The IC-F2000 has three power settings: 5 W or 4 W (Hi), 2 W (L2) and 1 W (L1), selectable by programming.
The LCD version of the IC-F2000 supports 128 channels across 8 zones; the non-LCD version supports 16 channels.
The IC-F2000 weighs 240 g with the BP-279 battery or 270 g with the BP-280 battery.
