Icom
VHF Analog Transceivers Affordable, high performance radio that offers abundant features General Features Simple operation for instant communication Easy to hear in noisy areas Longer operating time Weather resistant, dust protection, military rugged Internal…
Technical
| Frequency range | 136–174 MHz |
|---|---|
| Number of memory channels | 16 channels |
| Type of emission | 11K0F3E/16K0F3E |
| Channel spacing | 12.5 kHz/25 kHz |
| Power supply requirement | 7.2 V DC |
| Antenna impedance | 50 Ω |
| Operating temperature range | –30°C to +60°C |
| Dimensions (W×H×D) | 58×111×35.5 mm |
| Weight (with BP-298) | 265 g / 9.3 oz |
| Current drain (Tx High) | 1.3 A |
| Current drain (Rx, standby) | 75 mA |
| Current drain (Rx, max. audio, internal SP) | 500 mA |
| RF output power (Hi, L2, L1) | 5 W, 2 W, 1 W |
| Max. frequency deviation (Wide/Narrow) | ±5.0 kHz/±2.5 kHz |
| Frequency stability | ±2.5 ppm |
| Spurious emissions | 70 dB minimum |
| Residual modulations (Wide/Narrow) | 58/53 dB typical |
| Audio harmonic distortion (AF 1 kHz, 40% deviation, Wide/Narrow) | 1.0%/1.5% typical |
| Sensitivity (at 12dB SINAD) | 0.25 dBμV typical |
| Adjacent channel selectivity (W/N) | 78 dB/70 dB typical |
| Spurious response rejection | 70 dB minimum |
| Intermodulation rejection | 75 dB typical |
| AF output power (internal SP, 5% distortion, 8Ω load) | 1500 mW typical |
| AF output power (external SP, single end) | 400 mW typical |
| AF output power (external SP, BTL, HM-222HLWP connected) | 1500 mW typical |
Overview

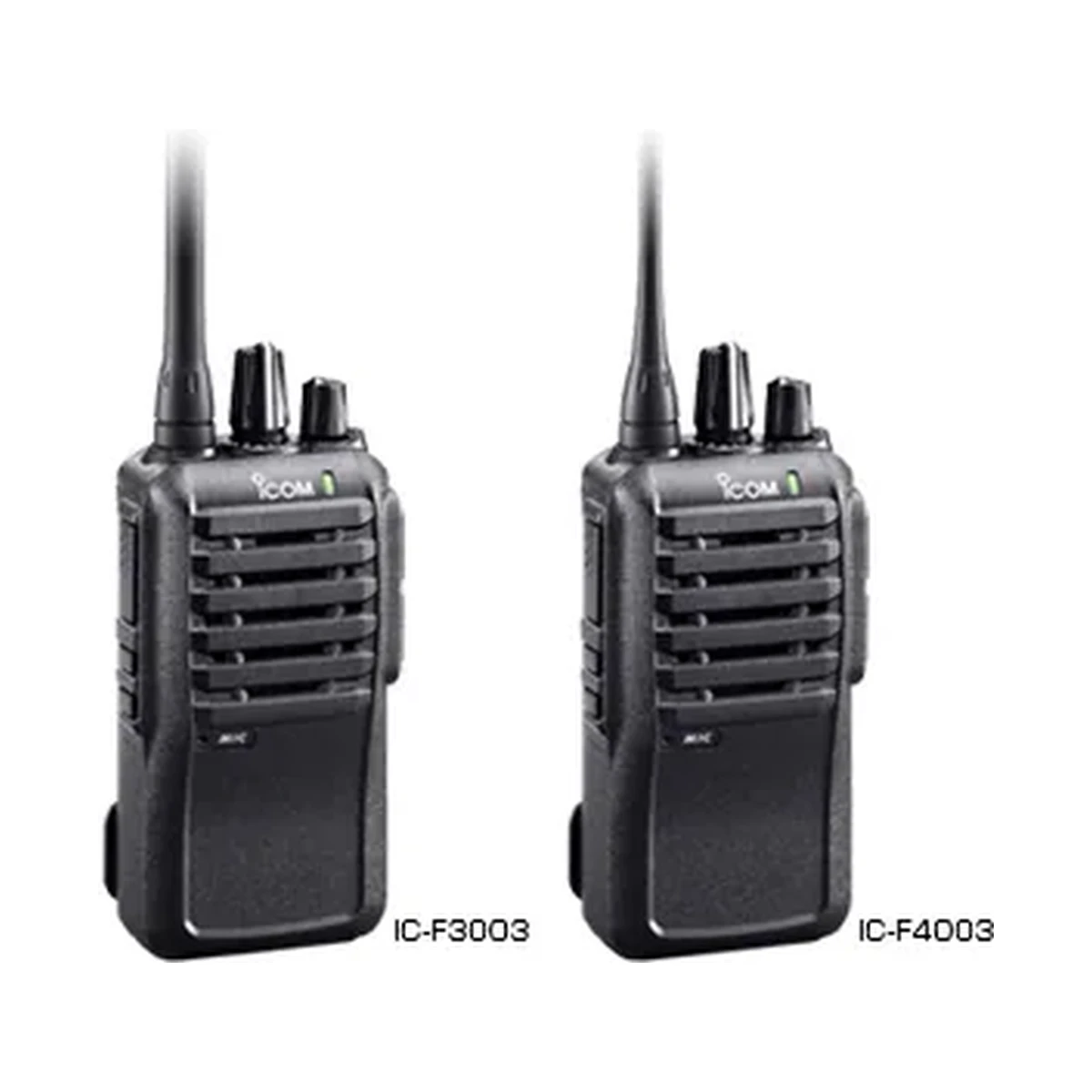

The IC-F3003 is Icom’s affordable VHF analog handheld, covering 136 to 174 MHz across 16 memory channels with selectable 5, 2 or 1 W output. It needs no special training to operate: the controls are simple and generously sized for non-slip, positive operation, and the radio is weather-resistant, dust-protected and built to military ruggedness standards for everyday commercial use. Its internal speaker delivers loud, clear audio for noisy sites, making it a straightforward, cost-effective choice for a small team needing simple VHF communication without digital capability.
Questions
The IC-F3003 covers 136 to 174 MHz with 12.5 kHz or 25 kHz channel spacing.
The IC-F3003 has three RF power settings: 5 W (Hi), 2 W (L2) and 1 W (L1).
The IC-F3003 supports 16 memory channels.
The IC-F3003 weighs 265 g with the BP-298 battery pack.
