Icom
VHF & UHF Digital Transceivers Key Features: Trunking (NXDN Type-D or dPMR Mode 3) Multi-site connectivity Voting scan Mix Mode Operation (NXDN conventional and dPMR Mode 1/2) Over-the-Air-Programming (OTAP) System Configuration File (SCF) (dPMR Mode 3)…
Technical
| Frequency range (NXDN) | 136–174 MHz |
|---|---|
| Frequency range (dPMR) | 136–174 MHz |
| Number of channels | 1024 channels/128 zones; 4000 channels/128 zones (Option); 32 channels/2 zones (Non-display) |
| Type of emission (NXDN) | 16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 8K30F1E/D, 4K00F1E/D |
| Type of emission (dPMR) | 16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E/D |
| Power supply requirement | 7.5V DC nominal |
| Current drain (Tx, High) | 1.5A |
| Current drain (Rx, max./standby, internal SP) | 580 mA / 140 mA |
| Antenna impedance | 50Ω |
| Operating temperature range | –30°C to +60°C (–22°F to +140°F) |
| Dimensions (W×H×D) | 53.6 × 123.5 × 29.3 mm (2.1 × 4.9 × 1.2 in) |
| Weight (main unit, approx.) | 215 g (7.6 oz) |
| Weight (with BP-284, MB-133, FA-S81VS) | 340 g (12.0 oz) |
| Weight (with BP-284, MB-133, FA-S81US) | 335 g (11.8 oz) |
| Output power (Hi, L2, L1) | 5 W, 2 W, 1 W |
| Frequency stability | ±1.0 ppm |
| Maximum frequency deviation | ±5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz) |
| Spurious emissions (USA) | 80 dB typ. |
| Spurious emissions (EUR) | 0.25 μW (≤1 GHz), 1.0 μW (>1 GHz) |
| FM hum and noise (W/N) | 55/55 dB typ. |
| Audio harmonic distortion (AF 1kHz, 40% deviation) | 0.5% typ. |
| FSK error (DVN/DN) | 1% typ. |
| Sensitivity (12dB SINAD) | 0.22 μV typ. |
| Sensitivity (20 dB SINAD, W/N) | –5.5/–2.5 dBμV emf typ. |
| Sensitivity (1% BER, DVN/DN) | –5.5/–4.0 dBμV emf typ. |
| Adjacent channel (W/N) | 80/76 dB typ. |
| Adjacent channel (DVN/DN) | 71/70 dB typ. |
| Spurious response rejection | 81 dB typ. |
| Intermodulation rejection, analog (USA) | 75 dB typ. |
| Intermodulation rejection, analog (EUR) | 67 dB typ. |
| Intermodulation rejection (DVN/DN) | 72 dBμV emf typ./–41 dBm typ. |
| Audio output power, internal SP (8Ω load, 5% distortion) | 1300 mW typ. |
| Audio output power, external SP (8Ω load, 5% distortion / with HM-222H) | 1000 mW typ. / 1300 mW typ. |
| Ingress protection standard | IP68 (Dust-tight and waterproof protection) |
Overview

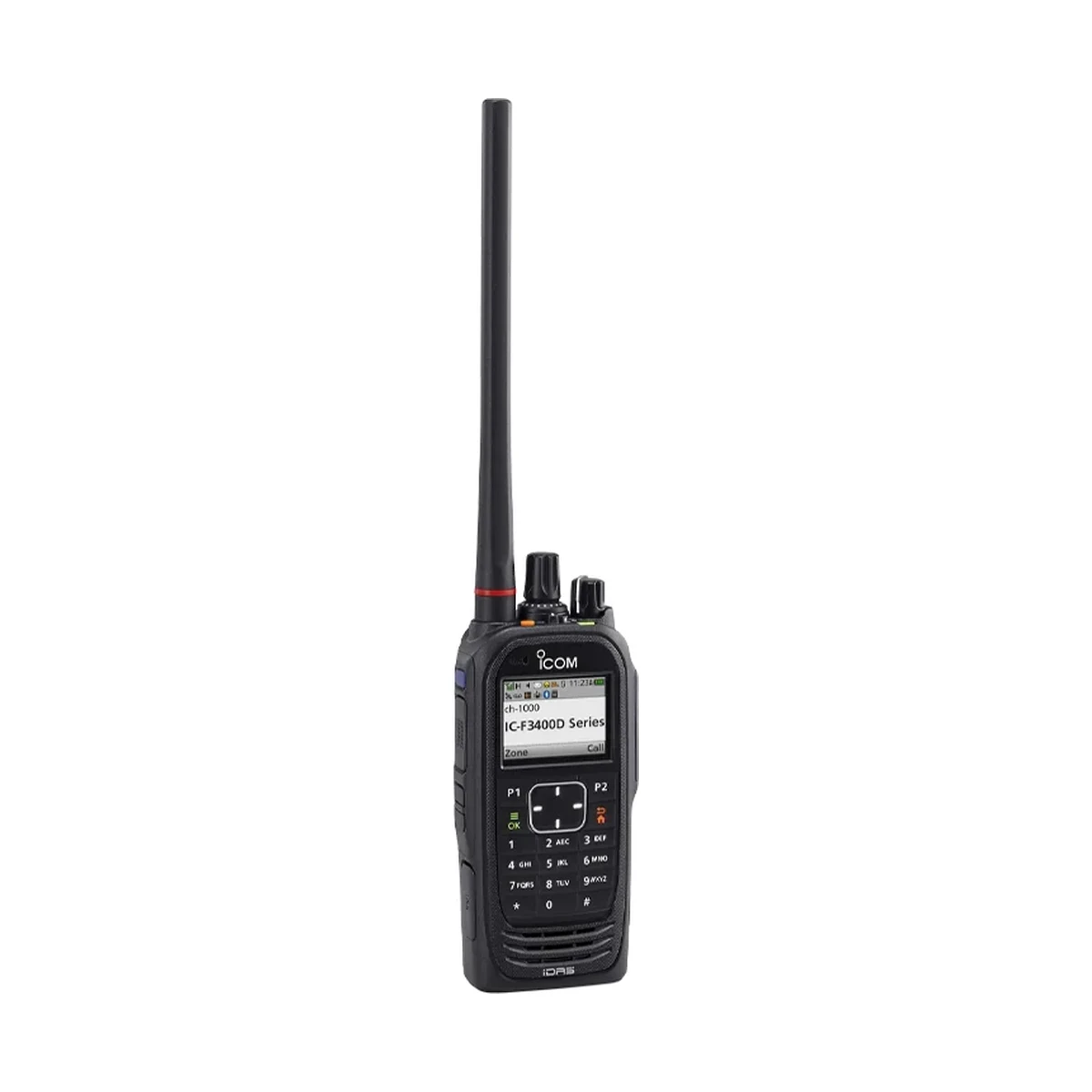

The IC-F3400D is Icom’s VHF digital handheld, running NXDN or dPMR across 136 to 174 MHz with up to 4,000 channels available as an option, and IP68 dust-tight, waterproof protection. It supports trunking through NXDN Type-D or dPMR Mode 3, multi-site connectivity and voting scan for larger deployments, and Over-the-Air-Programming lets a fleet be reconfigured remotely rather than requiring each radio connected to a programming cable individually. Mix Mode operation lets it run analog channels alongside digital ones, so a fleet can transition from an existing analog system gradually rather than all at once.
Questions
Yes. The IC-F3400D carries an IP68 rating for dust-tight and waterproof protection.
The IC-F3400D covers 136 to 174 MHz in both NXDN and dPMR digital modes.
The IC-F3400D has three power settings: 5 W (Hi), 2 W (L2) and 1 W (L1).
The IC-F3400D supports 1024 channels across 128 zones as standard, expandable to 4000 channels across 128 zones as an option (32 channels/2 zones on the non-display version).
