Icom
UHF Analog Transceivers Affordable, high performance radio that offers abundant features General Features Simple operation for instant communication Easy to hear in noisy areas Longer operating time Weather resistant, dust protection, military rugged Internal…
Technical
| Frequency range | 450–520 MHz / 400–470 MHz |
|---|---|
| Number of memory channels | 16 channels |
| Type of emission | 11K0F3E/16K0F3E |
| Channel spacing | 12.5 kHz/25 kHz |
| Power supply requirement | 7.2 V DC |
| Antenna impedance | 50 Ω |
| Operating temperature range | –30°C to +60°C |
| Dimensions (W×H×D) | 58×111×35.5 mm |
| Weight (with BP-298) | 265 g / 9.3 oz |
| Current drain (Tx High) | 1.6 A |
| Current drain (Rx, standby) | 70 mA |
| Current drain (Rx, max. audio, internal SP) | 500 mA |
| RF output power (Hi, L2, L1) | 5 W, 2 W, 1 W |
| Max. frequency deviation (Wide/Narrow) | ±5.0 kHz/±2.5 kHz |
| Frequency stability | ±2.5 ppm |
| Spurious emissions | 70 dB minimum |
| Residual modulations (Wide/Narrow) | 53/48 dB typical |
| Audio harmonic distortion (AF 1 kHz, 40% deviation, Wide/Narrow) | 1.0%/1.5% typical |
| Sensitivity (at 12dB SINAD) | 0.25 dBμV typical |
| Adjacent channel selectivity (W/N) | 73 dB/65 dB typical |
| Spurious response rejection | 70 dB minimum |
| Intermodulation rejection | 74 dB typical |
| AF output power (internal SP, 5% distortion, 8Ω load) | 1500 mW typical |
| AF output power (external SP, single end) | 400 mW typical |
| AF output power (external SP, BTL, HM-222HLWP connected) | 1500 mW typical |
Overview

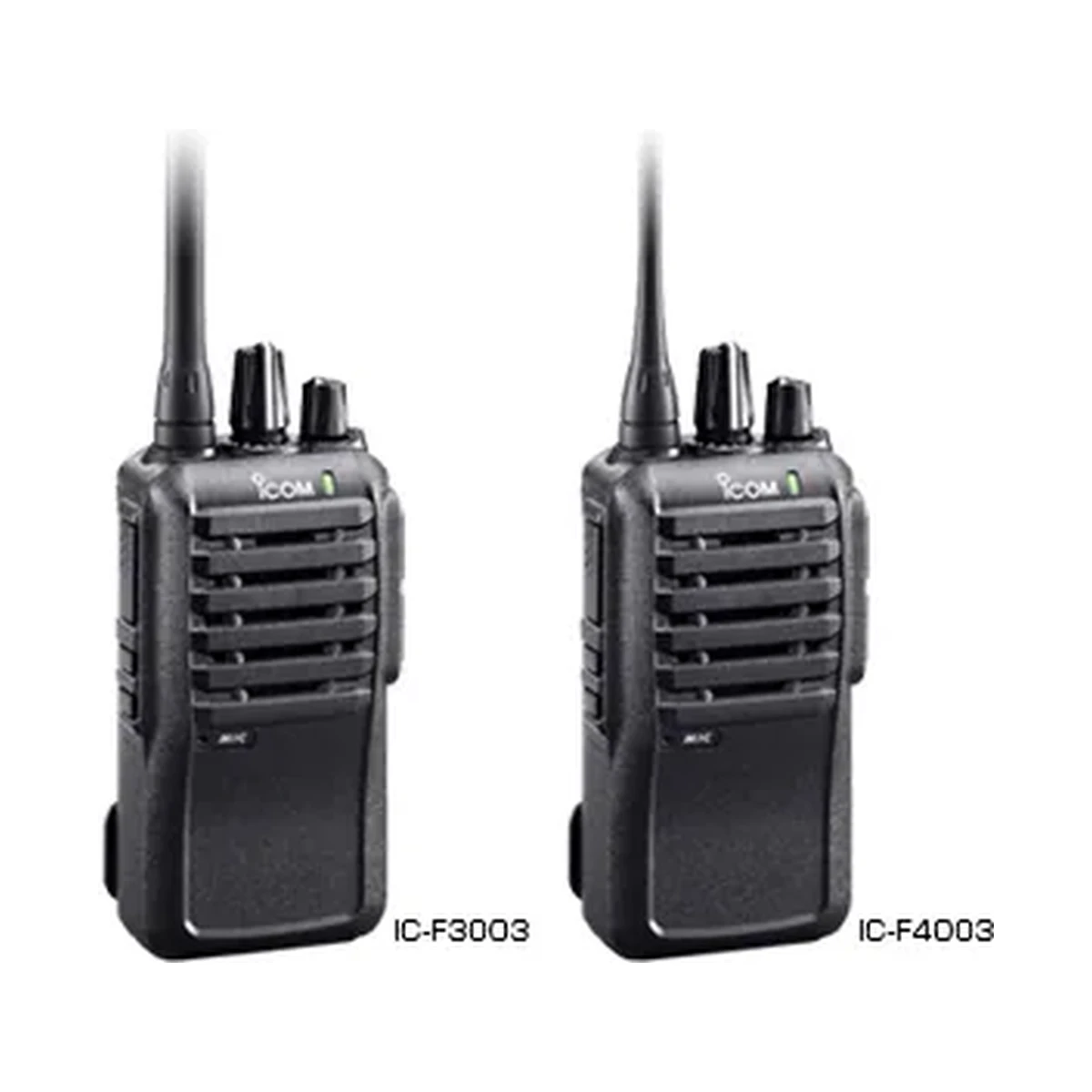

The IC-F4003 is Icom’s affordable UHF analog handheld, covering 400 to 470 MHz (or the 450 to 520 MHz export band) across 16 memory channels with selectable 5, 2 or 1 W output. It needs no special training to operate: the controls are simple and generously sized for non-slip, positive operation, and the radio is weather-resistant, dust-protected and built to military ruggedness standards for everyday commercial use. Its internal speaker delivers loud, clear audio for noisy sites, and UHF’s better penetration through structure suits it to indoor and built-up environments a VHF equivalent would struggle in.
Questions
The IC-F4003 covers 450 to 520 MHz or 400 to 470 MHz, depending on version, with 12.5 kHz or 25 kHz channel spacing.
The IC-F4003 has three RF power settings: 5 W (Hi), 2 W (L2) and 1 W (L1).
The IC-F4003 supports 16 memory channels.
The IC-F4003 weighs 265 g with the BP-298 battery pack.
