Icom
VHF & UHF Digital Transceivers Key Features: Trunking (NXDN Type-D or dPMR Mode 3) Multi-site connectivity Voting scan Mix Mode Operation (NXDN conventional and dPMR Mode 1/2) Over-the-Air-Programming (OTAP) System Configuration File (SCF) (dPMR Mode 3)…
Technical
| Frequency range (NXDN) | 136–174MHz |
|---|---|
| Number of channels | 1024 channels/128 zones; 4000 channels/128 zones (Option) |
| Power supply | 13.6 V DC nominal (USA/EXP); 13.2 V DC nominal (EUR) |
| Tx Current (High) | 9.0 A typ. (50 W); 5.0 A typ. (25 W) |
| Rx Current (Max/Standby) | 0.9 A typ. (Internal SP)/370 mA typ. |
| Antenna impedance | 50Ω |
| Operating temperature | –30 °C to +60 °C |
| Dimensions (W×H×D) | 174 × 55 × 150 mm |
| Weight | 1.5 kg |
| Output power | 50 W, 25 W, 5 W; 25 W, 10 W, 5.8 W |
| Frequency stability | ±1.0ppm |
| Max frequency deviation | ± 5.0 kHz (W), ±4.0 kHz (M), ±2.5 kHz (N) |
| Spurious emissions (USA) | 90 dB typ. |
| Spurious emissions (EUR) | 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) |
| FM Hum and noise (W/N) | 54/54 dB typ. |
| Audio harmonic distortion | 0.5% typ. |
| FSK error | 1% typ. (DVN/DN) |
| Sensitivity (12dB SINAD) | 0.22 μV typ. |
| Sensitivity (20 dB SINAD W/N) | –4.0/–4.0 dBμV emf typ. |
| Sensitivity (1% BER DVN/DN) | –6.0/–5.0 dBμV emf typ. |
| Adjacent channel (W/N) | 75/72 dB typ. |
| Adjacent channel (DVN/DN) | 65/68 dB typ. |
| Spurious response rejection | 85 dB typ. |
| Intermodulation rejection (USA) | 78 dB typ. |
| Intermodulation rejection (EUR) | 70 dB typ. |
| Intermodulation rejection (DVN/DN) | 70/70 dB typ. |
| Audio output (Internal SP, 12 Ω) | 4.0 W typ. (5% distortion) |
| Audio output (External SP, 8 Ω) | 4.0 W typ. (5% distortion) |
Overview

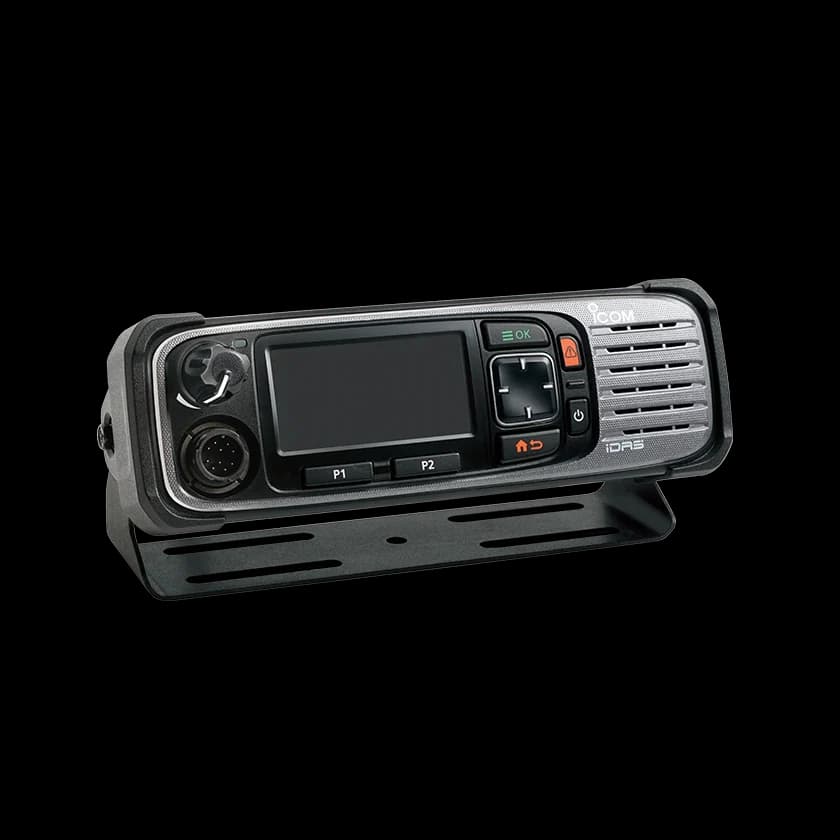

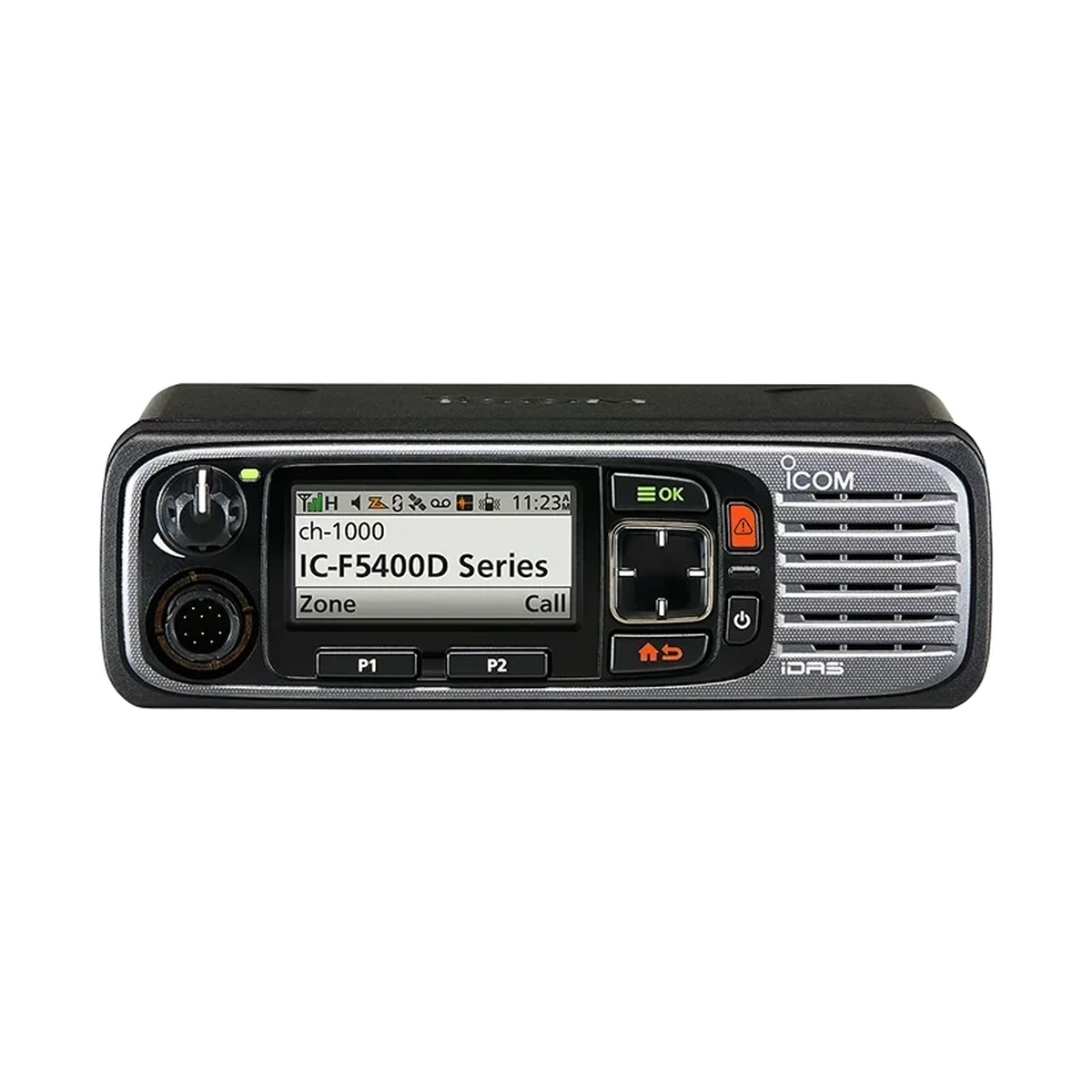

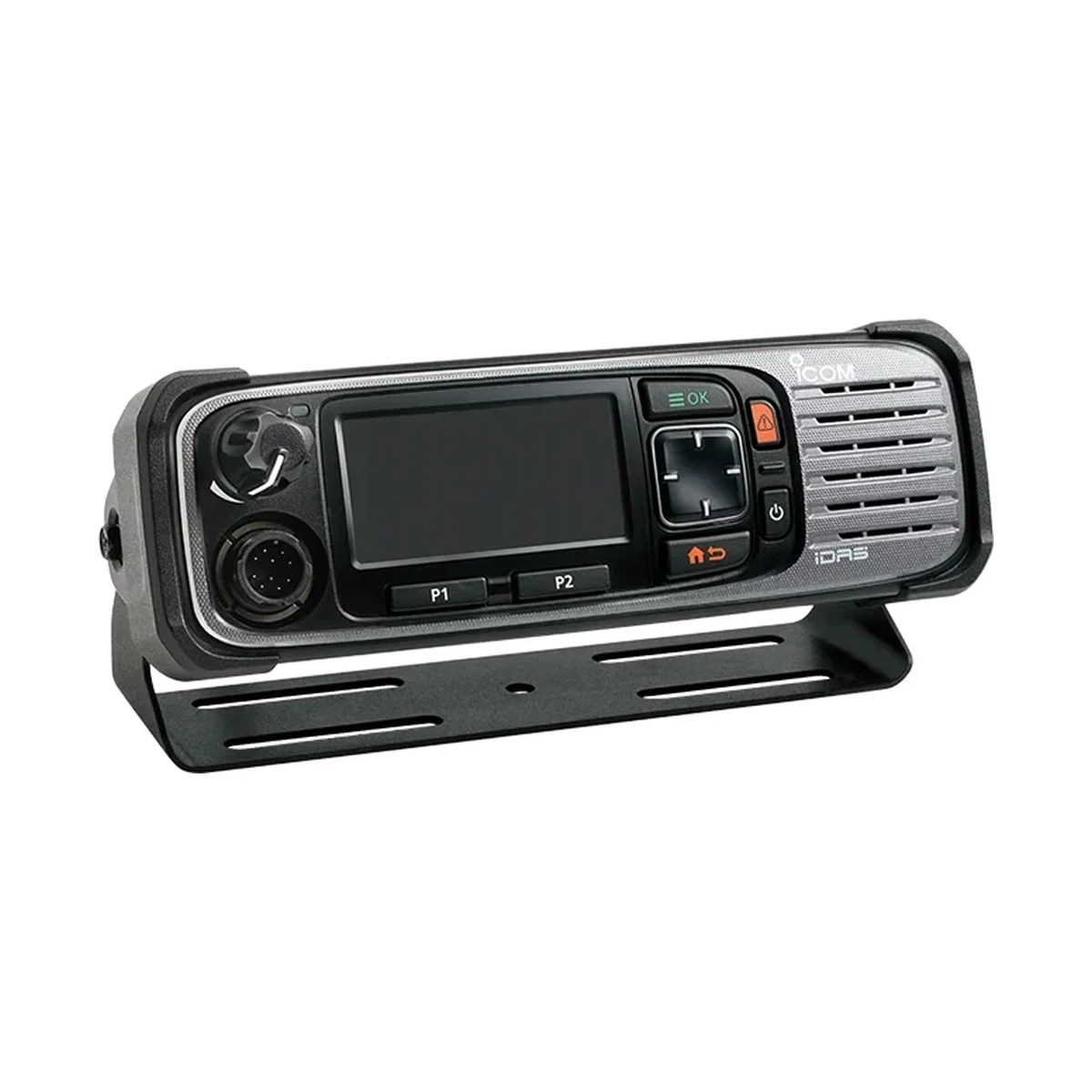

The IC-F5400D is Icom’s VHF digital mobile radio, running NXDN across 136 to 174 MHz at up to 50 W output, with up to 4,000 channels available as an option. Built for vehicle installation, it draws from the vehicle’s own electrical system to deliver substantially more transmit power and range than a handheld, making it suited to a supervisor or dispatcher vehicle anchoring a site’s communication, or a fleet needing reliable contact from the edges of a large coverage area.
Questions
The IC-F5400D delivers selectable output power of 50W, 25W or 5W (with a 25W/10W/5.8W option), giving strong range for base or mobile use.
The IC-F5400D supports 1024 channels across 128 zones as standard, expandable to 4000 channels across 128 zones with an option.
The IC-F5400D operates in the 136-174MHz VHF band for NXDN operation.
The IC-F5400D is rated to operate from -30 degrees C to +60 degrees C.
