VHF Digital/Analog Repeaters UNIQUE TWO-IN-ONE REPEATERS General Features Two RF modules in one unit 50W output at 50% duty cycle, 25W 100% duty cycle operation* 50W output at 100% duty cycle,100W 50% duty cycle operation with optional Power Amplifier*…
Technical
| Frequency coverage | 400-470 MHz |
|---|---|
| Number of channels | 32 ch |
| Channel spacing | 6.25/12.5/25 or 7.5/15/30 kHz |
| Type of emission | 16K0F3E, 11K0F3E, 11K0F7E/D/W, 4K00F1E/D, 4K00F3E |
| Power supply | 13.6V DC |
| Current drain - Tx High | 15A |
| Current drain - Stand-by | 500mA* |
| Current drain - Max. audio | 1900mA |
| Dimensions (W×H×D) | 483×88×260 mm (19.02×3.46×10.24 in) |
| Weight | 5.6kg (12.3lb) |
| RF output power (High) | 50W |
| Spurious emissions | 80dB |
| Frequency stability | ±0.5ppm |
| Audio harmonic distortion | 1% typical @ 40% deviation |
| FM Hum and Noise | 50dB typ. (W) / 45dB typ. (N) |
| Digital FSK error | 5% max. |
| Sensitivity - FM at 12dB SINAD | 0.25µV (typ.) |
| Sensitivity - Digital at 5% BER | 0.20μV (typ.) |
| Adjacent channel selectivity (W/N) | 78/56dB typ. |
| Spurious response rejection | 90dB typ. |
| Intermodulation rejection | 78dB typ. |
| AF output power (at 5% distortion) | 4.0W (typ.) with 4Ω load |
Overview

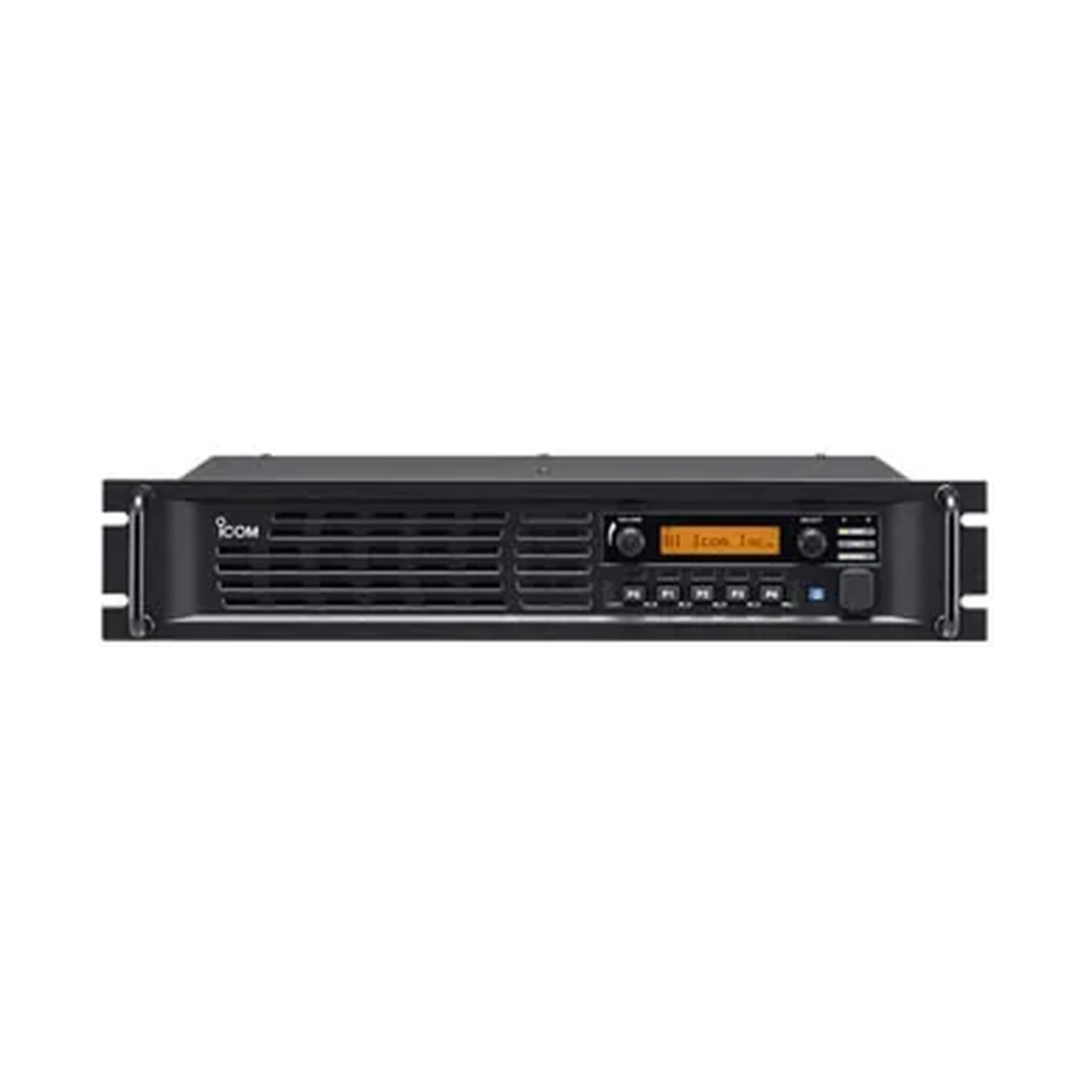

The IC-FR6000 is Icom’s UHF repeater, covering 400 to 470 MHz and combining two RF modules in one slim, rackmount unit so digital and analog operation, or two separate channels, can run from a single chassis. It delivers 50 W output at a 50% duty cycle, or 25 W continuously at 100% duty cycle, and supports both digital and analog signalling across 32 channels. Sited with a properly elevated antenna, it extends the effective range of every handheld and mobile radio on the system far beyond what any single unit could reach on its own.
Questions
The IC-FR6000 covers the 400-470 MHz UHF band with 32 channels and selectable 6.25/12.5/25 or 7.5/15/30 kHz channel spacing.
The IC-FR6000 delivers 50W RF output power on high setting.
The IC-FR6000 weighs 5.6kg and measures 483 x 88 x 260 mm.
The IC-FR6000 runs on a 13.6V DC supply, drawing up to 15A on transmit at high power.
