IcomLand Mobile

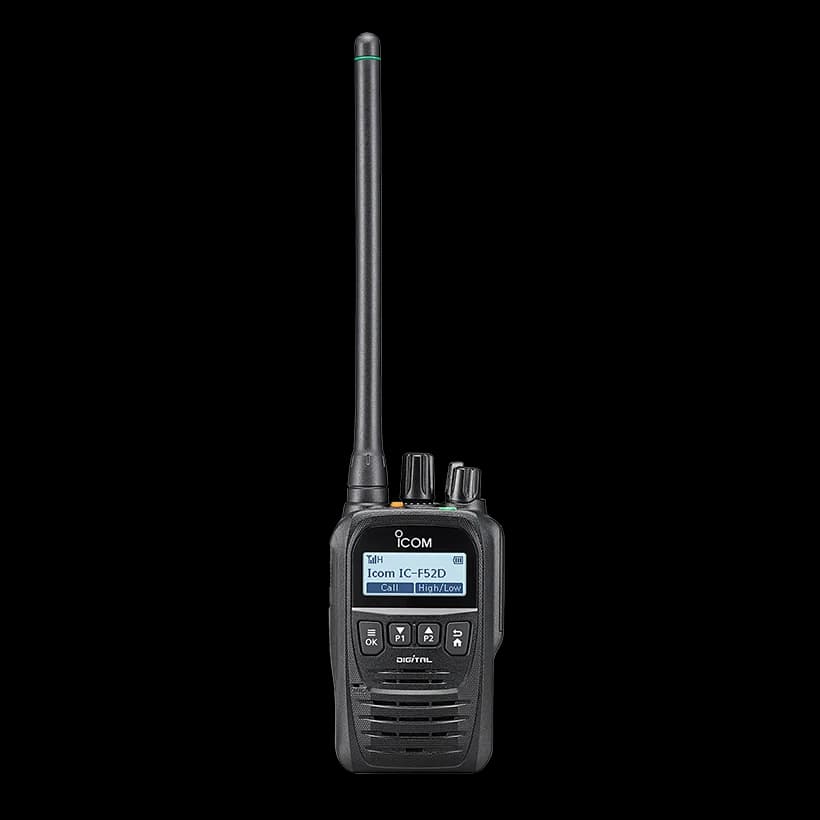

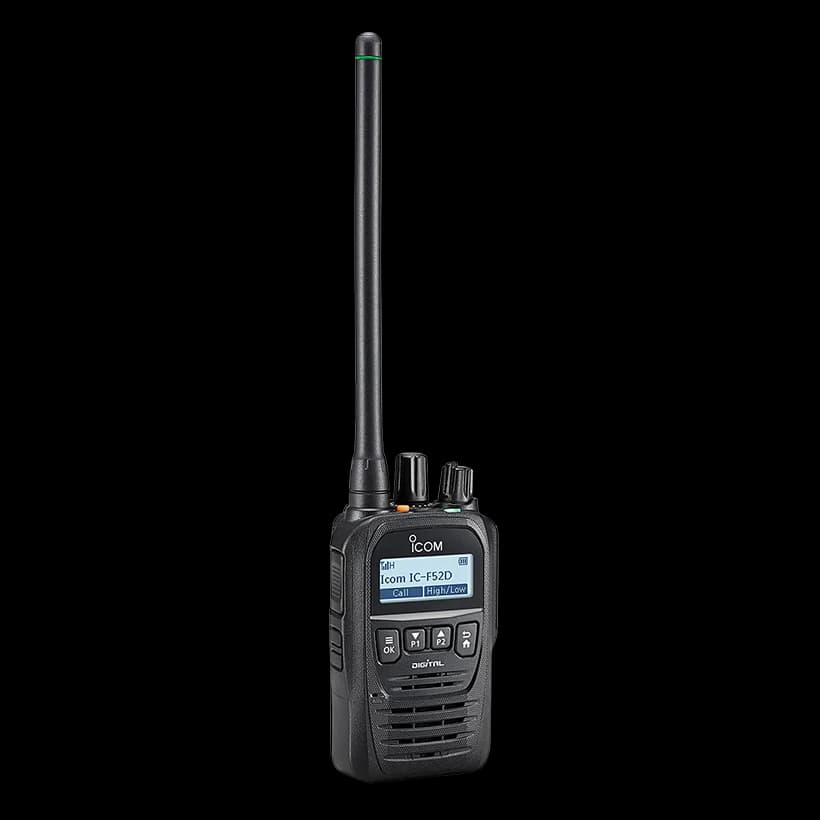

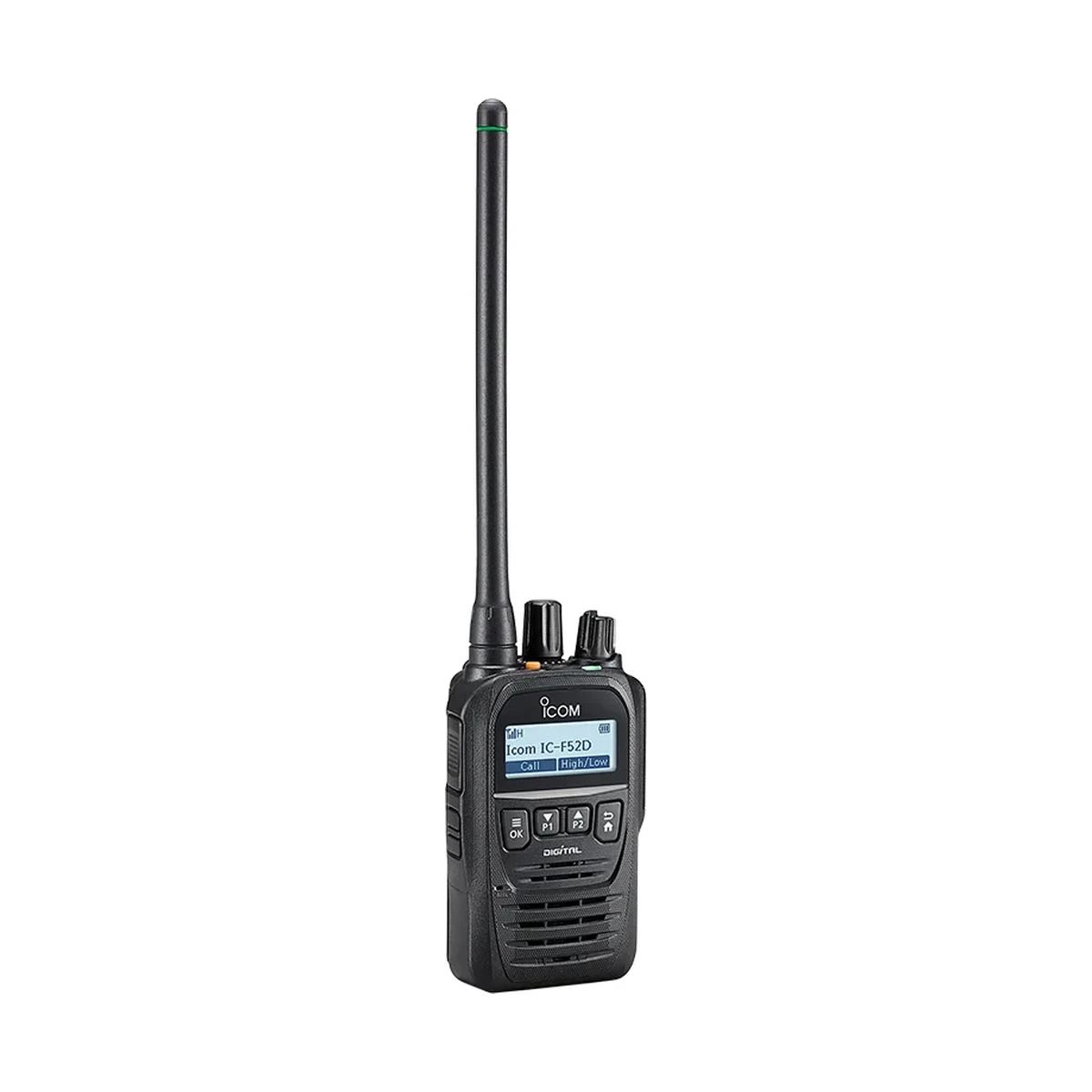

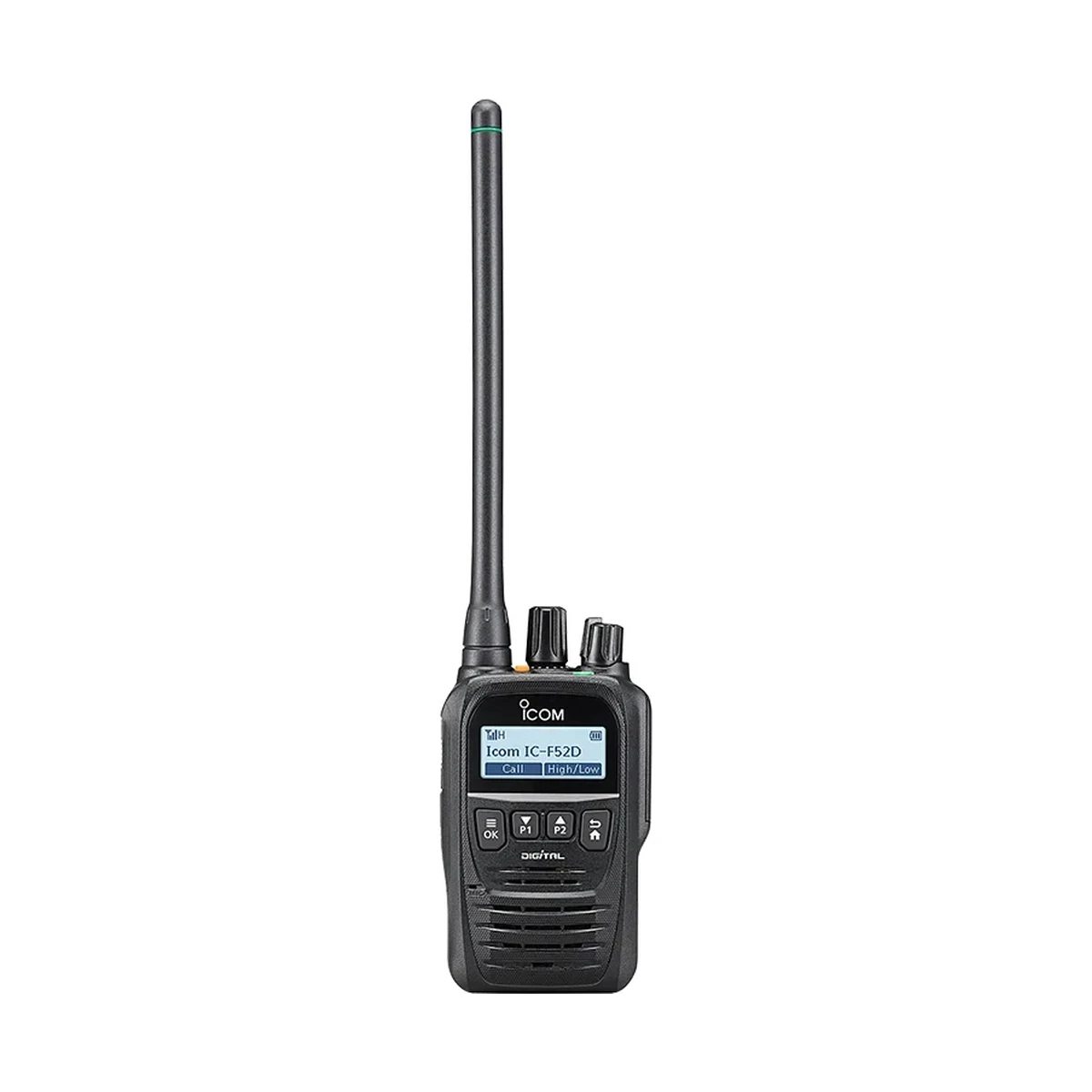

IC-F52D-UL / IC-F62D-UL
Intrinsically safe ATEX-rated digital handhelds covering VHF 136-174 MHz (IC-F52D) and UHF 400-470 MHz (IC-F62D) with 512 channels and switchable 5/2/1 W output.
Enquire →
Icom
IC-F52D VHF
General Features • 136–174, 400–470 MHz versions • 512 Channels / 128 Zones • 14 dot-matrix character display with status icons • Improved user interface • Programmable functions • Backlit LCD and buttons • 20-position rotary selector and ON/OFF volume knob •…
- Brand
- Icom
- Category
- Land Mobile
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Frequency coverage | 136–174 MHz (NXDN); 350–400, 400–470, 450–512, 450–520 MHz (dPMR) |
|---|---|
| Number of channels | 512 channels / 128 zones |
| Type of emission | (NXDN) 16K0F3E*, 14K0F3E, 11K0F3E, 8K50F3E, 8K30F1E/D, 4K00F1E/D; (dPMR) 16K0F3E*, 14K0F3E, 8K50F3E, 4K00F1E/D |
| Power supply requirement | 7.5 V DC nominal |
| Current drain (Tx) | 1.8 A |
| Current drain (Rx) | 500 mA / 170 mA (Max audio / Standby) |
| Antenna impedance | 50 Ω |
| Operating temperature range | −30 °C to +60 °C; −22 °F to +140 °F |
| Dimensions (W × H × D) | 56 × 91.5 × 36.5 mm; 2.2 × 3.6 × 1.4 in (With BP-294) |
| Weight (approx.) | 125 g (main unit); 270 g (BP-294, MBB-3) |
| Output power (Hi, L2, L1) | 5 W, 2 W, 1 W |
| Frequency stability | ±1.0 ppm |
| Maximum frequency deviation | ± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz) |
| Spurious emissions | 80 dB typ. (USA); 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR) |
| FM Hum and noise | 57 dB typ. (@25 kHz), 55 dB typ. (@12.5 kHz) (USA) |
| Audio harmonic distortion | 0.4% typ. (AF 1 kHz 40% deviation) |
| FSK error | 1% typ. (@DVN, DN) |
| Sensitivity – Analog (12 dB SINAD) | 0.23 μV typ. |
| Sensitivity – Analog (20 dB SINAD) | −4.0 dBμV emf typ. (@25 kHz), −1.4 dBμV emf typ. (@12.5 kHz) |
| Sensitivity – Digital (1% BER) | −5.0 dBμV emf typ. (0.28 μV typ.) (@DVN), −3.0 dBμV emf typ. (0.35 μV typ.) (@DN) |
| Adjacent channel – Analog | 79 dB typ. (@25/20 kHz), 77 dB typ. (@12.5 kHz) |
| Adjacent channel – Digital | 70 dB typ. (@DVN), 72 dB typ. (@DN) |
| Spurious response rejection | 76 dB typ. |
| Intermodulation rejection – Analog | 76 dB typ. (USA), 68 dB typ. (EUR) |
| Intermodulation rejection – Digital | 73 dBμV emf typ. (@DVN) / −40 dBm typ. (@DN) |
| Audio output power – Internal SP | 1300 mW typ. (at 5% distortion, 8 Ω load) |
| Audio output power – External SP | 1000 mW typ. (at 5% distortion, 8 Ω load); 1300 mW typ. with HM-222H* |
Overview
About this product

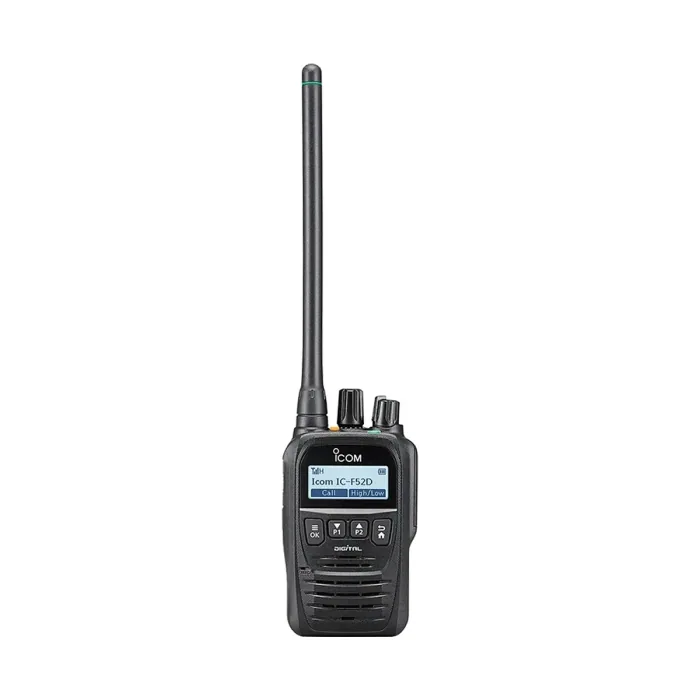

Further details of Icom IC-F52D VHF Handheld Two-Way Transceiver Radio
The IC-F52/F62 series is a next generation IDAS™ handheld radio. It not only inherits technical design advantages from the IC-F3400D series, but also offers state-of-the-art improvements, while applying size and usability from the hugely popular IC-F50V/IC-F50 series analog models. This series is a true mixture of legacy and modern technology in one of the most compact packages available today.
• Full dot-matrix display, rotary channel and volume knob for simple every-day operation.
• Built-in Bluetooth® , voice recording, active noise cancelling functions.
• Motion/stationary detection, man down and lone worker functions.
• OTAP (Over-the-Air Programming) function easily reconfigures in-the-field radios.
• Intelligent battery management helps to extend the battery life.
General Features:
• 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
• 512 Channels / 128 Zones
• 14 character dot-matrix display with status icons
• Improved user interface
• Programmable functions and menu items in a language other than English (For example French, Spanish, German, Russian and Turkish)
• Backlit LCD and buttons

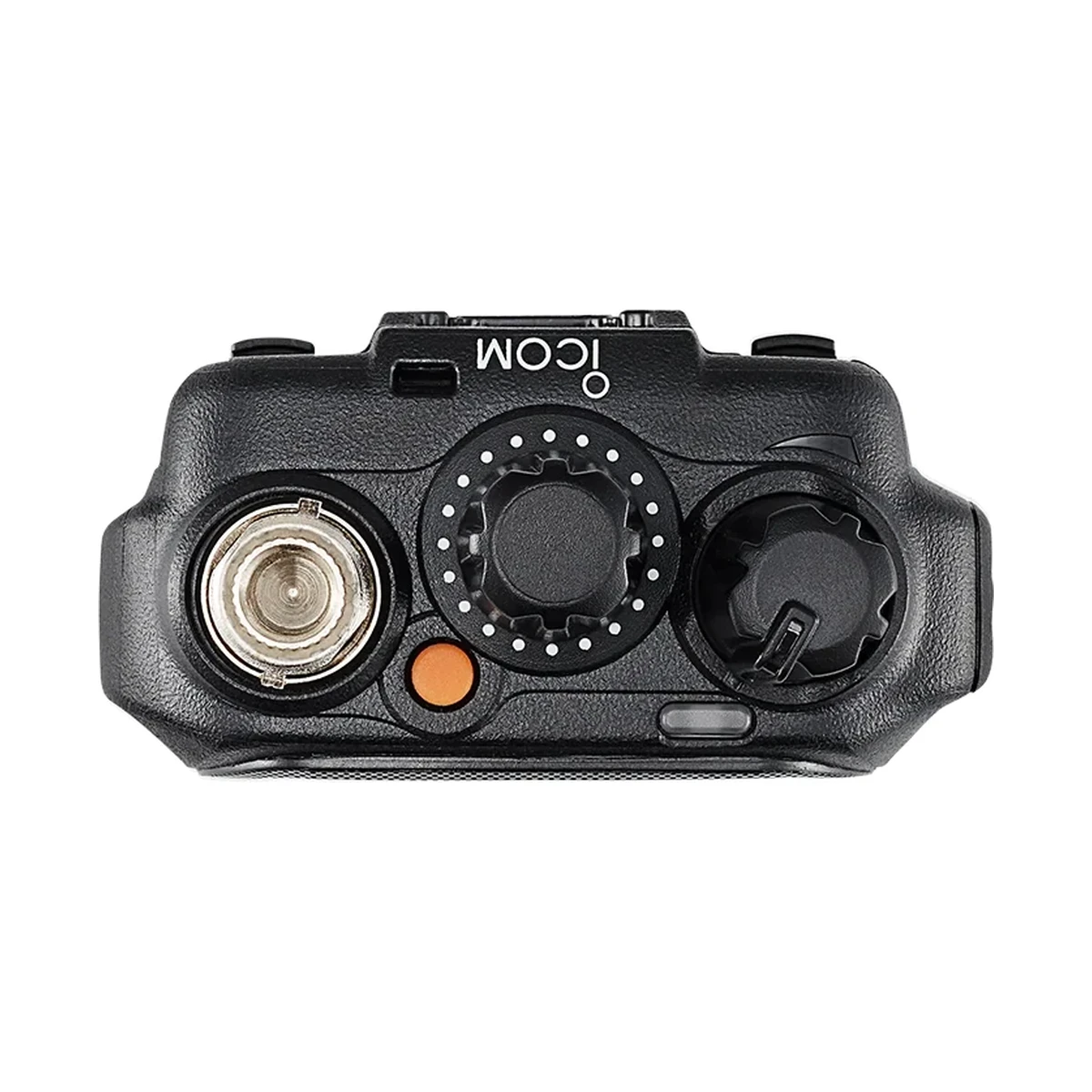

• 20-position rotary selector and ON/OFF volume knob
• 800 mW loud and intelligible internal speaker audio
• MIL-STD-810 G shock, vibration, temperature and more
• IP67/66/55/54 waterproof & dust-tight protection
• 29 mm (1.1 inch) slim dimensions (with BP-290 battery pack)
• Battery conditioning intelligence function
• License key upgrade (trunking)
Operating Mode
• NXDN or dPMR mode 1/2 conventional
• NXDN or dPMR multi-site conventional over IP network
• NXDN Type-D single/multi-site trunking* * License key (ISL-UGMTR) required
• dPMR Mode 3 trunking* * License key (ISL-UGMD3) required
• 12.5 kHz digital mode (NXDN conventional)
• Analog mode
• Analog/digital mixed operation
Digital Functions (Voice and Data)
• AMBE+2™ vocoder
• Over-the-Air Programming (OTAP) function* * Optional OTAP manager (CS-OTPM1) required
• Over-the-Air Alias (OAA) sends own name with a call
• Over-the-Air Update (OTAU) changes the repeater channel data and site code over the air (NXDN Type-D trunking)
• Individual, group and all call
• Late entry for group call
• Status call and polling
• Short data messages
• Call alert (NXDN)
• GPS position data (Optional HM-233GP required)
• Transparent data mode
Analog Functions
• CTCSS and DTCS tone
• 2-Tone and 5-Tone
• MDC functions (Depending on version)
• BIIS 1200 (MSK)
• LTR™ trunking (Depending on version)
• DTMF autodial
Security and Safety
• Digital voice scrambler (Low level encryption)
• Analog voice scrambler (Inversion)
• Power ON password
• Tactical group temporarily reconfigures user talkgroups
• Radio stun/revive/kill
• Remote monitor (NXDN)/ambience listening (dPMR)
• Emergency key for emergency call
• Man down function
• Lone worker function
• Motion/stationary detection
Scan Functions
• Priority scan
• Voting scan for site roaming
Voice/Audio Functions
• Voice announcement (Channel number and zone)
• VOX function for hands-free operation
• Voice recording/playback (Up to 8 minutes)
• TX/RX active noise canceller
• TX/RX audio equalizer
• Audio compander (Analog mode)
Hardware Features
• Programmable vibration alert
• Built-in Bluetooth® for wireless audio and data
• Variety of optional audio accessories including speaker-microphones, headsets and earphones
• Optional HM-233GP GPS speaker-microphone
• 14-pin accessory connector
• Wireless radio programming over Bluetooth
• Optional BC-225 intelligent charger and RS-BC225 reader software for BC-225 for battery life cycle management
Questions
Frequently asked questions
What frequency bands does the Icom IC-F52D VHF support?
The IC-F52D covers 136-174 MHz for NXDN operation, plus 350-400, 400-470, 450-512 and 450-520 MHz for dPMR operation, with 512 channels across 128 zones.
How rugged is the IC-F52D for outdoor use?
The IC-F52D is rated for an operating temperature range of -30 degrees C to +60 degrees C, making it suitable for extreme hot and cold field conditions.
What is the transmit power output of the IC-F52D?
The IC-F52D offers selectable output power of 5W (Hi), 2W (L2) and 1W (L1).
How much does the Icom IC-F52D weigh?
The IC-F52D main unit weighs approximately 125g, or 270g complete with the BP-294 battery and MBB-3 belt clip.
