Digital Yacht

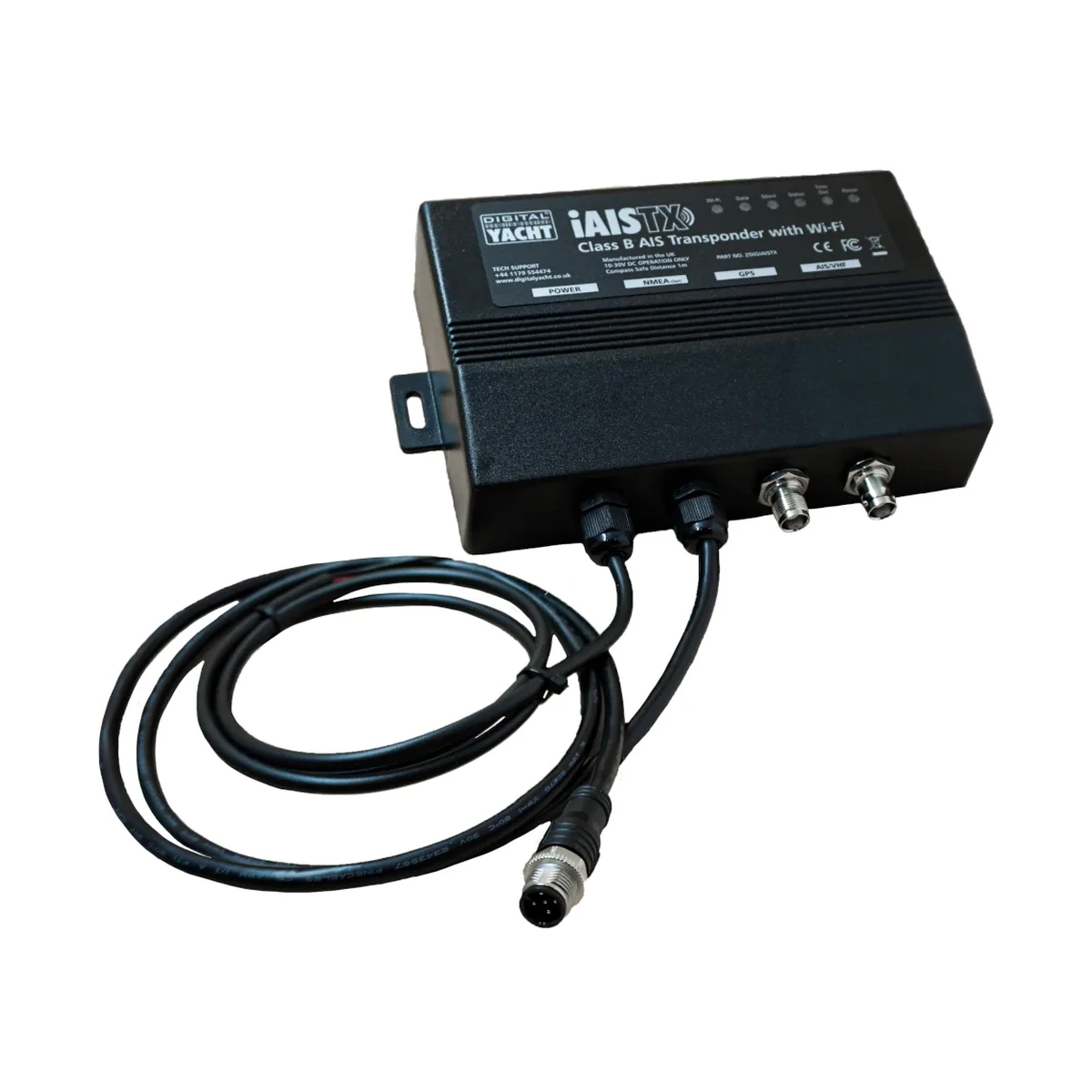

iAISTX Plus – AIS Transponder with Wi-Fi & NMEA 2000
The Digital Yacht iAISTX Plus is a Class B+ 5W AIS transponder with built-in WiFi and NMEA 2000 output.
- Brand
- Digital Yacht
- Category
- Marine Network & Interface
- Manufacturer
- Digital Yacht website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Transponder type | Class B+ 5W AIS transponder with WiFi and NMEA 2000 |
|---|---|
| Connected devices | UDP and TCP/IP protocols supported for up to 7 connected devices |
| WiFi range | Internal wifi antenna will typically footprint a boat up to 60ft in length |
| GPS antenna | Supplied with external GPS antenna and 10m cable which can be deck mounted or fitted to standard 1" mount |
| Dimensions | 330 x 230 x 100 mm |
| Weight | 1250 g |
| Power | 12/24V operation and ultra-low 2W consumption |
Overview
About this product
iAISTX Plus is a Class B+ 5W AIS transponder from Digital Yacht that combines WiFi and NMEA 2000 connectivity in a single unit. Its internal WiFi antenna typically footprints a boat up to 60ft in length, streaming AIS data over UDP and TCP/IP to as many as seven connected devices, while an included external GPS antenna with a 10m cable can be deck mounted or fitted to a standard 1 inch mount. The transponder operates from a 12/24V supply drawing an ultra-low 2W, and is housed in a 330 x 230 x 100 mm enclosure weighing 1250 g.
Questions
Frequently asked questions
How many devices can connect to the iAISTX Plus over WiFi?
It supports UDP and TCP/IP protocols for up to 7 connected devices.
What size boat will the iAISTX Plus WiFi cover?
The internal WiFi antenna will typically footprint a boat up to 60ft in length.
What power does the iAISTX Plus draw?
It operates on 12/24V with ultra-low 2W power consumption.
Does the iAISTX Plus come with a GPS antenna?
Yes, it is supplied with an external GPS antenna and 10m cable, which can be deck mounted or fitted to a standard 1 inch mount.
