Digital Yacht

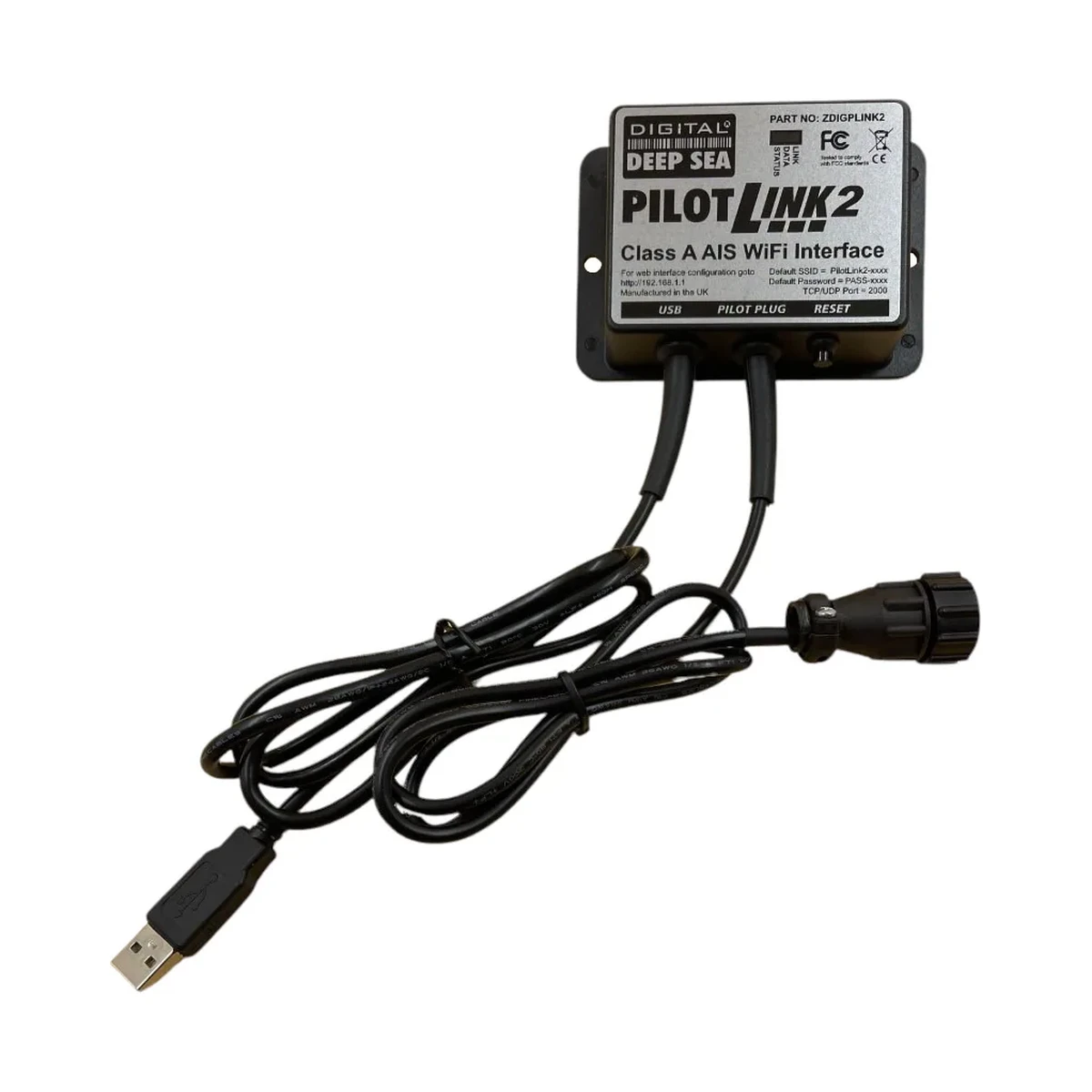

The Digital Yacht PilotLINK2 is a USB-powered WiFi gateway that connects a Pilot Plug to hundreds of navigation apps including Navionics and iSailor.
Technical
| Connection | Connects to standard "Pilot Plug" connectors |
|---|---|
| Power | USB powered for easy portability - power from any USB source, adaptor or power pack |
| Wi-Fi | Creates secure password-protected WiFi network, or joins existing WiFi networks |
| Interface | Web interface with diagnostics and data displays |
| App compatibility | Works with 100's of apps - iSailor, Navionics, iNAVx, NavLINK, TZ iBoat, Imray, NV Charts, AquaMaps, Weather 4D, etc |
| Protocols | TCP/IP and UDP supported |
| Data logging | Raw data logging function |
| Weight | 250 g |
| Dimensions | 105 x 72 x 32 mm |
Overview
PilotLINK2 connects directly to a boat's standard Pilot Plug connector and turns its data into a WiFi feed for navigation software, from Digital Yacht. It is USB powered for easy portability, running from any USB source, adaptor or power pack, and can either create its own secure password-protected WiFi network or join an existing one. The gateway supports TCP/IP and UDP protocols and includes a raw data logging function, with a built-in web interface for diagnostics, and is compatible with hundreds of apps including iSailor, Navionics, iNAVx, NavLINK, TZ iBoat, Imray, NV Charts, AquaMaps and Weather 4D.
Questions
It connects to standard 'Pilot Plug' connectors.
It is USB powered, so it can run from any USB source, adaptor or power pack for easy portability.
It works with hundreds of apps including iSailor, Navionics, iNAVx, NavLINK, TZ iBoat, Imray, NV Charts, AquaMaps and Weather 4D.
Yes, it includes a raw data logging function.
