AMEC

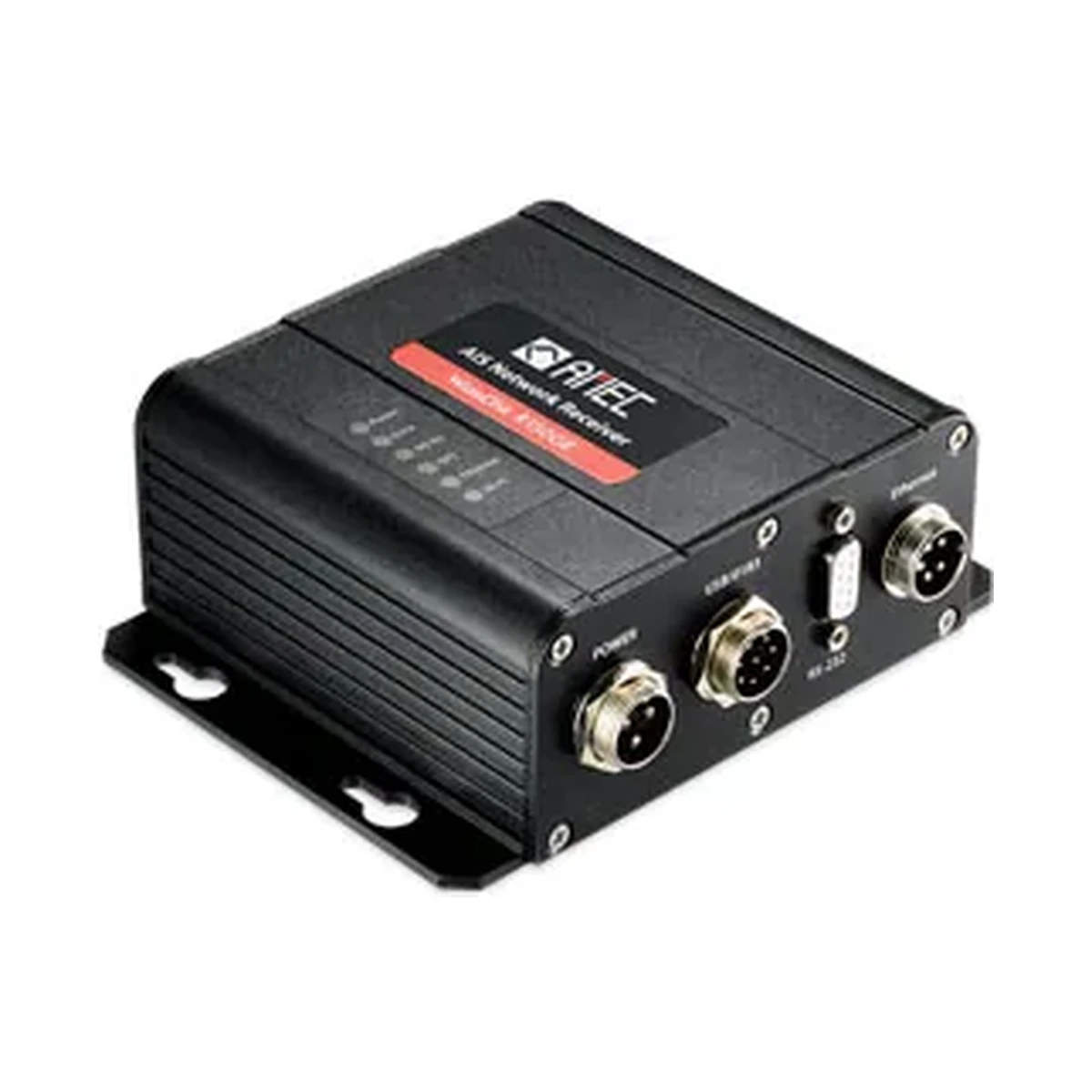

AMEC R150GE WideLink
The AMEC R150GE WideLink is a dual-channel AIS receiver with NMEA 0183, RS-232, USB, and Ethernet outputs for shore-based or vessel monitoring installations.
- Brand
- AMEC
- Category
- Marine
- Availability
- Enquire for lead time
Technical
Specifications
| Applicable Standards | ITU-R M.1371; IEC 61162 (applicable parts); IEC 60945 Ed.4.0:2002; IEC 62287-1 Ed. 2.1:2017 (applicable parts) |
|---|---|
| Number of AIS Receivers | 2 channels |
| CH-1 | Default CH 87B (161.975MHz) |
| CH-2 | Default CH 88B (162.025MHz) |
| Channel Bandwidth | 25KHz |
| Message Format | AIS Class A & B messages |
| Data Rate | 9600bps / per channel |
| AIS Receive Sensitivity | -112 dBm @ PER ≤ 20% |
| Supply Voltage | 12 / 24V DC |
| Power Consumption | Greater than 1.5 W; Less than 3 W |
| LED Indication | Power, Error, AIS Rx, GNSS(GPS), Ethernet |
| GPS Antenna Connector | TNC (Female) |
| VHF Antenna Connector | SO-239 (Female) |
| NMEA 0183 (RS-422) | Support two NMEA 0183 interfaces; Baud rate configurable (default 38400 bps); Standard IEC 61162-1 / IEC 61162-2 sentences |
| RS-232 | Female DB9 |
| USB 2.0 | Supported |
| Ethernet | 10/100 Base-T (RJ-45 Female) |
| Operating Temperature | -15 °C ~ 55 °C |
| Storage Temperature | -25 °C ~ 70 °C |
| Humidity Operation | 0 ~ 95% RH at 40 °C |
| Vibration | IEC 60945 |
| Waterproof | IP54 |
| Size (L) | 128 mm (4.25 inch) (exclude connector) |
| Size (W) | 140 mm (5.51 inch) |
| Size (H) | 50 mm (1.96 inch) |
| Weight | 450 g |
| Cable Length | Power Cable: 1.5 meter; USB/NMEA: 80 centimeters; Ethernet: 1 meter |
Overview
About this product
The AMEC R150GE WideLink is a dual-channel AIS receiver picking up both AIS Class A and B messages on the 161.975MHz and 162.025MHz channels at -112 dBm sensitivity, with data output over two NMEA 0183 (RS-422) interfaces, RS-232, USB 2.0 and a 10/100 Base-T Ethernet port. It runs from a 12/24V DC supply drawing between 1.5W and 3W, carries an IP54 rating, and operates across a -15C to 55C range, meeting ITU-R M.1371, IEC 61162 and IEC 60945 standards. Housed in a 128 x 140 x 50 mm, 450g enclosure with TNC and SO-239 antenna connectors, it suits fixed AIS monitoring installations that need multiple simultaneous data outputs.
Questions
Frequently asked questions
How many AIS channels does the R150GE WideLink receive?
It has 2 AIS receiver channels, defaulting to CH 87B (161.975 MHz) and CH 88B (162.025 MHz), each at 9600 bps, with a receive sensitivity of -112 dBm at 20% PER.
What connectivity options does the R150GE offer?
Two NMEA 0183 (RS-422) interfaces with configurable baud rate, an RS-232 port (female DB9), USB 2.0, and 10/100 Base-T Ethernet (RJ-45 female).
What is the power consumption of the R150GE?
It runs on 12/24 V DC and draws between 1.5 W and 3 W.
Is the R150GE waterproof?
Yes, it carries an IP54 rating.
