Garmin

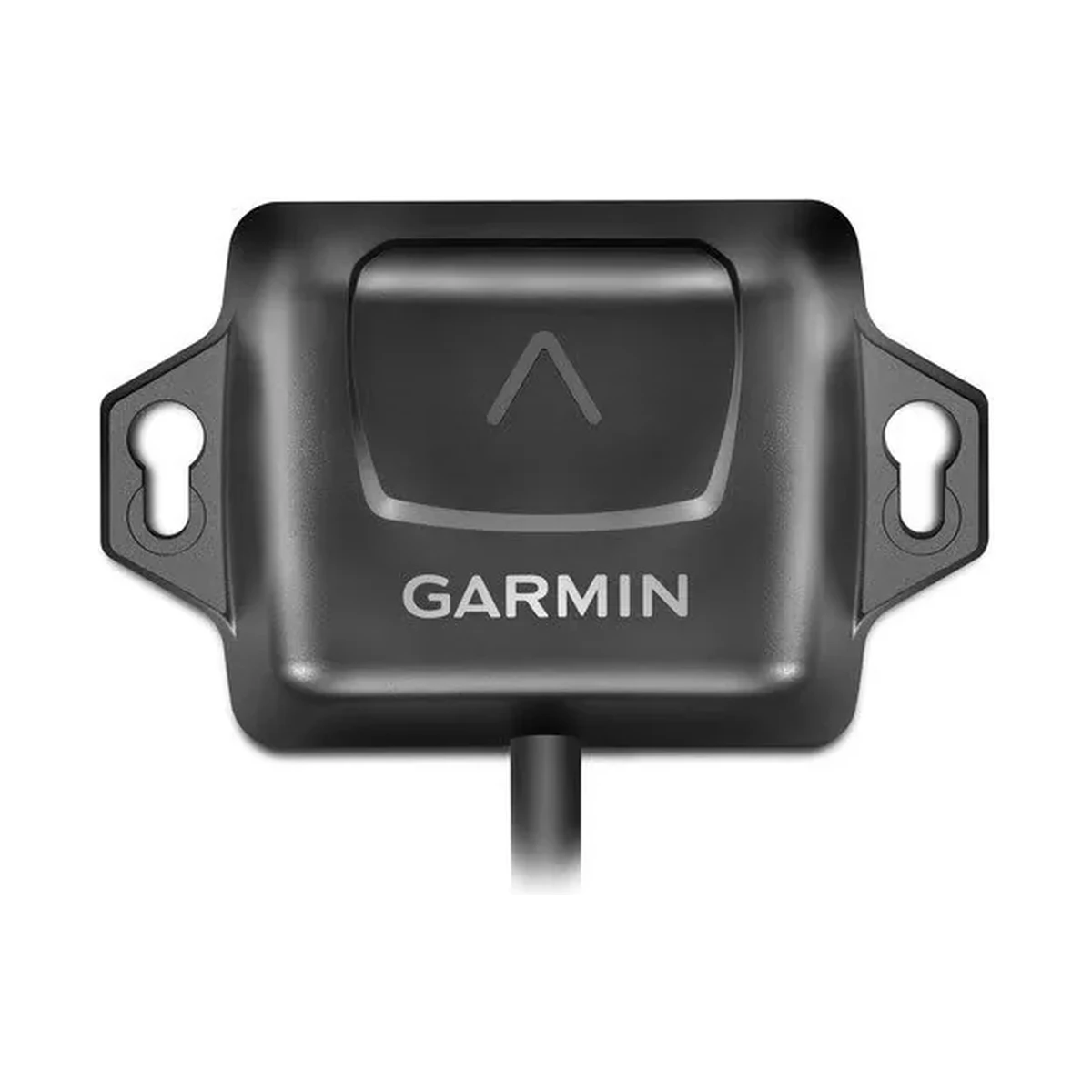

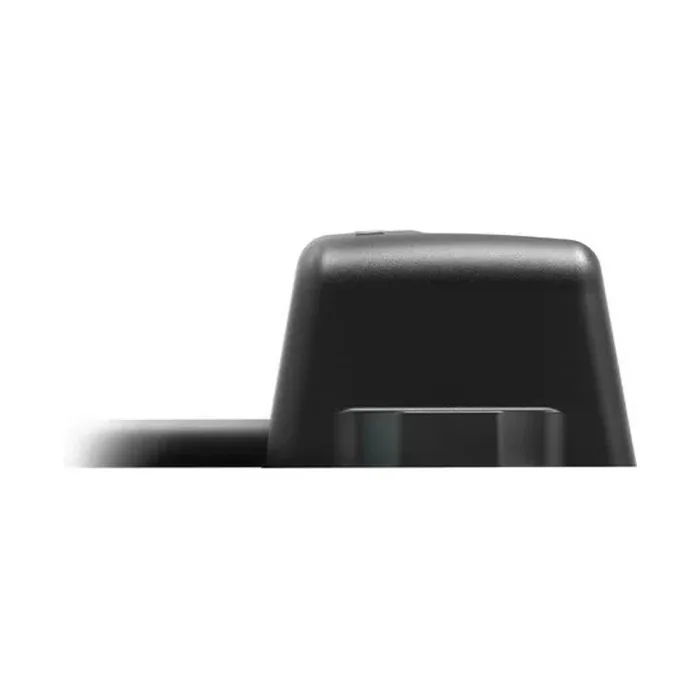

SteadyCast Heading Sensor
A compact NMEA 2000 heading sensor housed in a fully gasketed, IPX7-rated case for feeding compass data to marine displays and radar.
- Brand
- Garmin
- Category
- Marine
- Manufacturer
- Garmin website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Dimensions (L x W x H) | 87.35 x 53.84 x 34.29 mm (3.4 x 2.1 x 1.4 in.) |
|---|---|
| Weight | 182 g (6.4 oz.) |
| Temperature range | From -15° to 70°C (from 5° to 158°F) |
| Material | Fully gasketed, high-impact plastic |
| Water resistance | IEC 60529 IPX7 |
| NMEA 2000 input voltage | From 9 to 32 Vdc |
| NMEA 2000 LEN | 2 (100 mA) |
| Compass-safe distance | 5 cm (2 in.) |
Overview
About this product
The SteadyCast Heading Sensor is a compact heading sensor that feeds compass data over NMEA 2000 to compatible displays and radar units, useful for functions such as MARPA target tracking. It measures 87.35 x 53.84 x 34.29 mm, weighs 182 g, and is built into a fully gasketed, high-impact plastic housing rated IPX7. It runs from 9 to 32 Vdc with a NMEA 2000 load equivalency of 2 (100 mA), is rated for operation from minus 15 to 70 degrees C, and has a compass-safe distance of 5 cm.
Questions
Frequently asked questions
Is the Garmin SteadyCast Heading Sensor waterproof?
Yes. It carries an IEC 60529 IPX7 water resistance rating and is built from fully gasketed, high-impact plastic.
How does the SteadyCast Heading Sensor connect and how much power does it need?
It connects over NMEA 2000, accepting 9 to 32 Vdc input with a load equivalency number of 2 (100 mA).
How close can the SteadyCast Heading Sensor be mounted to a compass?
Its compass-safe distance is 5 cm (2 in.).
